Rotel · CD & SACD Players
Michi Q430
The Michi Q430 is a CD player with a precision floating tray mechanism and an ESS SABRE ES9028PRO DAC.
fig. 01 · cd & sacd players
Michi Q430
From Rotel
The Michi Q430 uses a floating-tray disc mechanism to isolate the CD from vibration. The ESS SABRE ES9028PRO DAC handles conversion with balanced differential output.

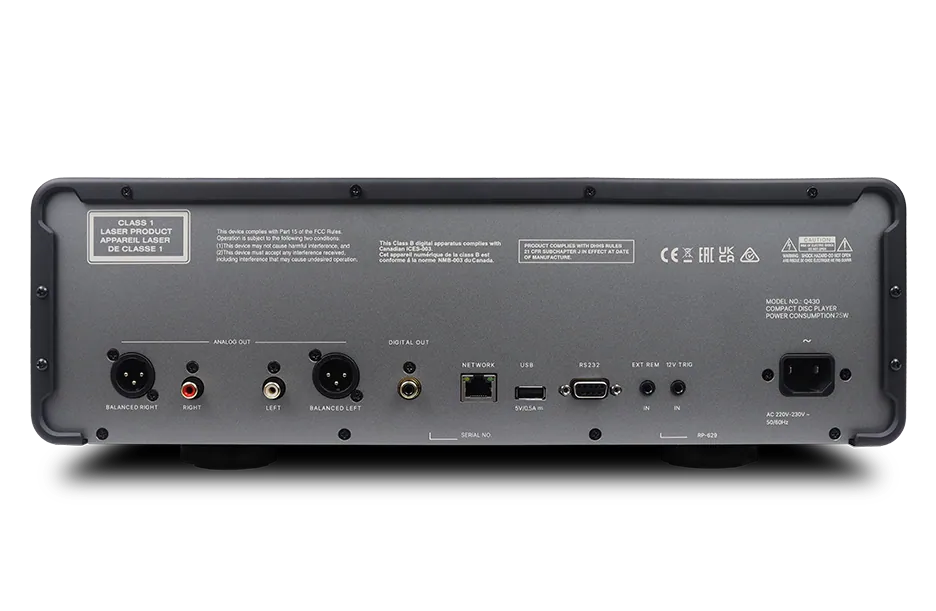

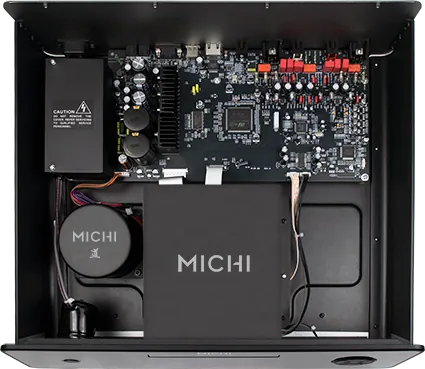

Both balanced XLR and RCA analog outputs are available. An in-house ultra-quiet power supply feeds the analog and digital sections separately.
It's the CD player in the Michi Prestige range.
Specifications
| Dimensions (W × H × D) | 431 × 148 × 385mm |
|---|---|
| Front Panel Height | 132mm (5.3") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 25W |
| Standby Power Consumption | <0.5W |
| Net Weight | 8.8kg (19.5lbs.) |
| Total Harmonic Distortion (THD) | <0.0006% |
| Frequency Response | 20Hz - 20kHz, 0 -0.3dB |
| S/N Ratio (IHF "A" Weighted) | Unbalanced (RCA) > 120 dB |
| Dynamic Range | >99dB |
| Digital to Analog Converters | ESS ES9028PRO DAC |
| Channel Balance | ± 0.5dB |
| Channel Separation | Unbalanced (RCA) > 105 dB @ 10k Hz |
