Michi Q5
The Michi Q5 is a transport DAC with an ESS ES9028PRO converter, CD playback, and 32-bit/384kHz USB input.
fig. 01 · dacs
Michi Q5
From Rotel
The Michi Q5 combines a CD transport with a standalone DAC in one chassis. The ESS ES9028PRO handles conversion.

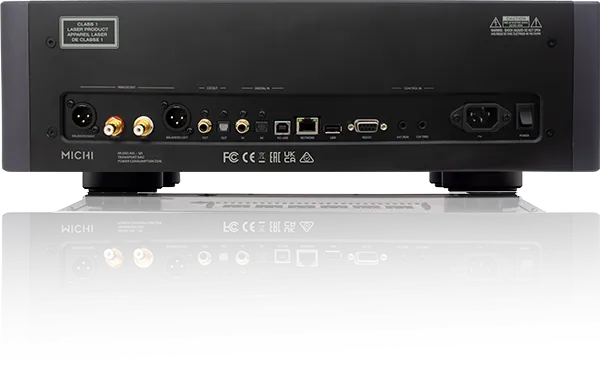

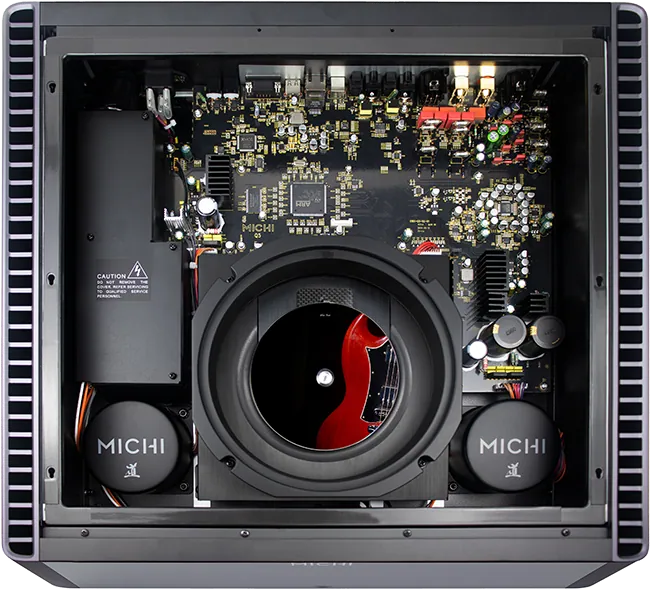

Digital inputs include PC-USB (32-bit/384kHz), optical, coaxial, and AES/EBU. The CNC aluminum CD mechanism sits above the DAC section.
Balanced XLR and unbalanced RCA outputs feed a preamplifier or stereo amplifier.
Specifications
| Dimensions (W × H × D) | 485 x 150x 452 mm |
|---|---|
| Front Panel Height | 132 mm (5.25") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 25 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 23.5 kg (51.8 lbs.) |
| Total Harmonic Distortion (THD) | CD/Coaxial/Optical/PC-USB Input: < 0.0006% |
| Frequency Response | 20 Hz - 20k Hz, +0 dB, -0.1 dB |
| S/N Ratio ("A" Weighted) | >115 dB |
| Dynamic Range | >99 dB |
| Digital to Analog Converters | ESS ES9028PRO (32bit/768 kHz DAC) |
| Channel Balance | ± 0.5 dB |
| Channel Separation | >104 dB @ 10k Hz |
