Rotel · Power Amplifiers
Michi S5
The Michi S5 is a dual-monoblock stereo amplifier delivering 500W per channel into 8 ohms.
fig. 01 · power amplifiers
Michi S5
From Rotel

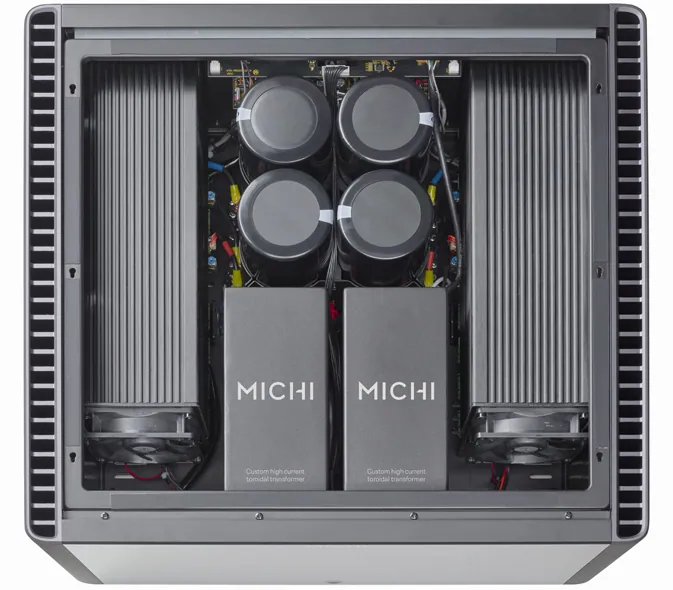

The Michi S5 is a stereo power amplifier in a dual-monoblock design. Twin oversized toroidal transformers (built in-house) feed 500W per channel into 8 ohms.

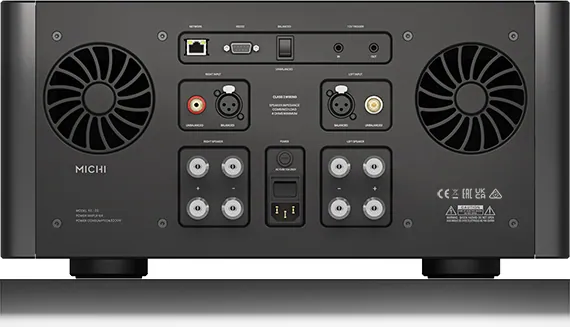

Balanced XLR and unbalanced RCA inputs. Trigger and RS232 control inputs are included for system integration.
It's the stereo amplifier in the Michi lineup, paired with the P5 preamplifier.
Specifications
| Dimensions (W x H x D) | 485 × 238 × 465 mm19" × 9.375" × 18.25" |
|---|---|
| Front Panel Height | 220 mm (8.625") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 1200 W |
| Standby Power Consumption | Normal: <0.5 W |
| Net Weight | 59.9 kg (132.1 lbs.) |
| BTU (4 Ω, 1/8th Power) | 3450 BTU/h |
| Power Output (FTC) | 580 W/CH (8 Ω) |
| Continuous Power Output (Non FTC) | 500 W/CH (8 Ω) |
| Total Harmonic Distortion | <0.008% |
| Frequency Response | 20 Hz - 20k Hz (+0dB, -0.15 dB) |
| (IHF “A” weighted) | 120 dB |
| Gain | Unbalance: 28 dB |
