Michi X3 Series 2
The Michi X3 Series 2 is an stereo amplifier delivering 350W of Class AB power with an 8-channel ESS SABRE DAC.
fig. 01 · integrated amplifiers
Michi X3 Series 2
From Rotel

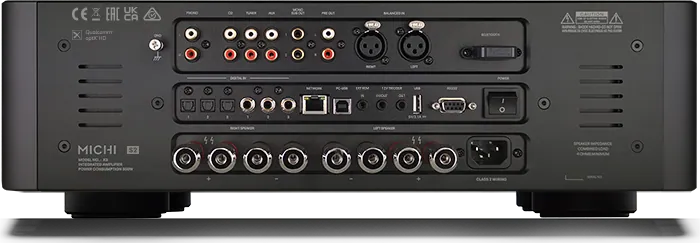

The Michi X3 Series 2 combines 350W of Class AB output with an 8-channel ESS SABRE DAC. Inputs cover analog RCA, XLR, MQA-capable USB, Bluetooth (aptX HD), and phono.

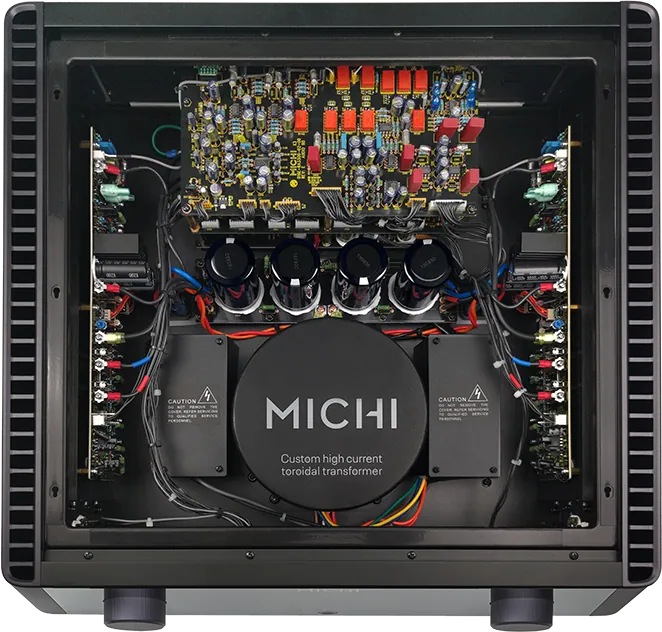

The amplifier section runs through a large toroidal transformer. Balanced XLR and unbalanced RCA preamplifier outputs are available for bi-amping.
Specifications
| Dimensions (W × H × D) | 485 x 150 x 452mm19" × 6" × 17 3/4" |
|---|---|
| Front Panel Height | 132 mm (5.25") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 500W |
| Standby Power Consumption | Normal: <0.5W |
| Net Weight | 28.9kg (63.7 lbs.) |
| BTU Rating | 1303 BTU/h |
| Power Output (FTC) | 235 W/Ch (8Ω) |
| Maximum Power Output (Non FTC) | 350W/Ch (4Ω) |
| Continuous Power Output (Non FTC) | 200 W/Ch (8Ω) |
| Total Harmonic Distortion (THD) | <0.008% |
| Frequency Response | Line Level Inputs: 10 Hz - 100k Hz |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 102 dB |
