Michi X430
The Michi X430 is a Prestige-series stereo amplifier delivering 340W into 4 ohms with an ESS SABRE ES9039Q2M DAC.
fig. 01 · integrated amplifiers
Michi X430
From Rotel
The Michi X430 puts out 340W into 4 ohms (210W into 8 ohms) from a Class AB output stage. The ESS SABRE ES9039Q2M 32-bit DAC handles the digital section.

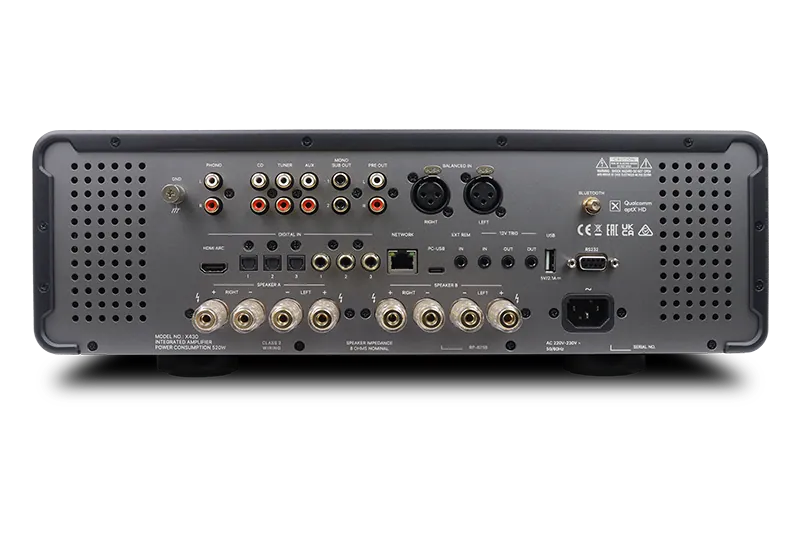

Inputs include balanced XLR, analog RCA, digital (optical, coaxial, USB), and Bluetooth. It's the Prestige-series stereo amplifier in the Michi range.
Specifications
| Dimensions (W × H × D) | 431 x 148 x 422 mm17 x 6 3/5 x 15 5/6 " |
|---|---|
| Front Panel Height | 131 mm (5 1/6") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 520 W |
| Standby Power Consumption | Normal < 0.5 W |
| Net Weight | 16.9 kg ( 37.26 lbs.) |
| BTU Rating | 1476 BTU/h |
| Power Output (FTC) | 220 W/Ch (8 ohms) |
| Maximum Power Output (Non FTC) | 340 W/Ch (4 ohms) |
| Continuous Power Output (Non FTC) | 210 W/Ch (8 ohms) |
| Total Harmonic Distortion | <0.03% |
| Frequency Response | Line Level Inputs: 10 Hz - 100 kHz |
| Signal to Noise Ratio (A Weighted) | Line Level Inputs (RCA) : > 105 dB |
