Rotel · Integrated Amplifiers
RA-1572MKII
The RA-1572MKII is a 120W Class AB stereo amplifier with a high-resolution DAC, phono stage, and Bluetooth.
fig. 01 · integrated amplifiers
RA-1572MKII
From Rotel
The RA-1572MKII delivers 120W of Class AB power into 8 ohms. The built-in DAC accepts optical, coaxial, PC-USB with MQA, and aptX/AAC Bluetooth.

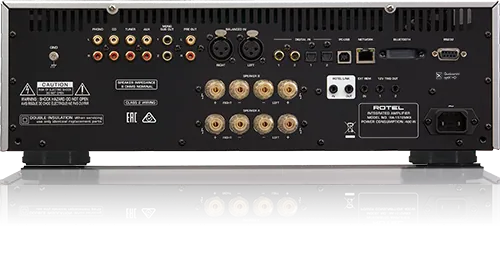

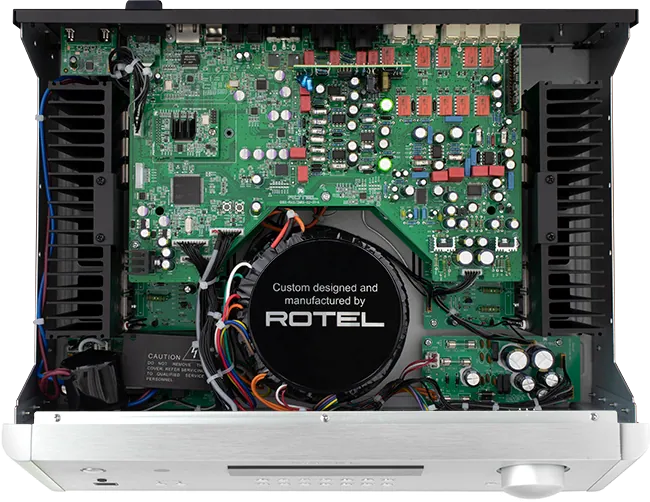

Analog sources connect through RCA and a moving-magnet phono stage. The amplifier section uses a large toroidal transformer and slit-foil capacitors.
Specifications
| Dimensions (W × H × D) | 431 × 144 × 358 mm17" × 5.7" × 14.1" |
|---|---|
| Front Panel Height | 3U / 132.6 mm (5.25") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 400 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 13.63 kg (30.05 lbs.) |
| BTU Rating (4 Ω, 1/8th power) | 810 BTU/h |
| Power Output (FTC) | 135 W/Ch (4 Ω) |
| Maximum Power Output (Non FTC) | 200 W/Ch (4 Ω) |
| Continuous Power Output (Non FTC) | 120 W/Ch (8 Ω) |
| Total Harmonic Distortion (THD) | <0.018% |
| Frequency Response | Line Level Inputs: |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 100 dB |
