Rotel · Integrated Amplifiers
RA-1592MKII
The RA-1592MKII is a 200W Class AB stereo amplifier with balanced XLR inputs, a 32-bit DAC, and MQA support.
fig. 01 · integrated amplifiers
RA-1592MKII
From Rotel
The RA-1592MKII delivers 200W per channel into 8 ohms. It accepts analog RCA, XLR balanced, digital (optical, coaxial), PC-USB with MQA, Bluetooth (aptX/AAC), and a moving-magnet phono stage.

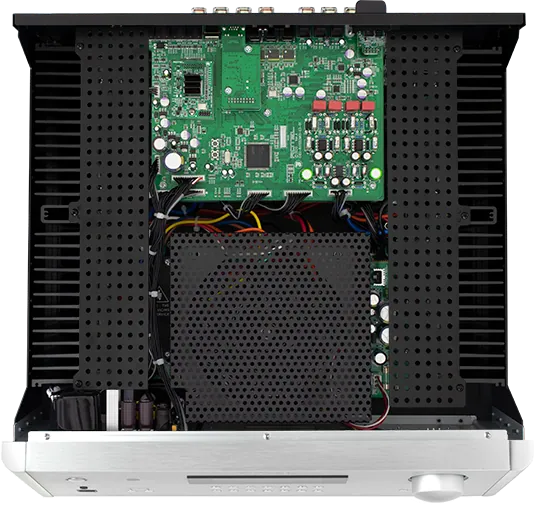

The 32-bit/384kHz DAC section feeds a Class AB output stage with a toroidal transformer and slit-foil capacitors.
It's the most powerful amplifier in Rotel's core built-in range.
Specifications
| Dimensions (W × H × D) | 431 × 144 × 425mm17" × 5.7" × 16" |
|---|---|
| Front Panel Height | 3U / 132.6mm (5.25") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 500W |
| Standby Power Consumption | <0.5W |
| Net Weight | 17.63kg (38.87lbs.) |
| BTU Rating | 1239 BTU/h |
| Maximum Power Output | 350W/Ch (4Ω) |
| Continuous Power Output | 200W/Ch (8Ω) |
| (THD) | <0.008% |
| Frequency Response | Line Level Inputs: |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 103dB |
