Rotel · Integrated Amplifiers
RA-6000
The RA-6000 Diamond Series stereo amplifier delivers 350W into 4 ohms, marking Rotel's 60th anniversary.
fig. 01 · integrated amplifiers
RA-6000
From Rotel
The RA-6000 is a Diamond Series component celebrating Rotel's 60-year heritage. It delivers 350W of Class AB power into 4 ohms with a wide array of modern and legacy inputs.

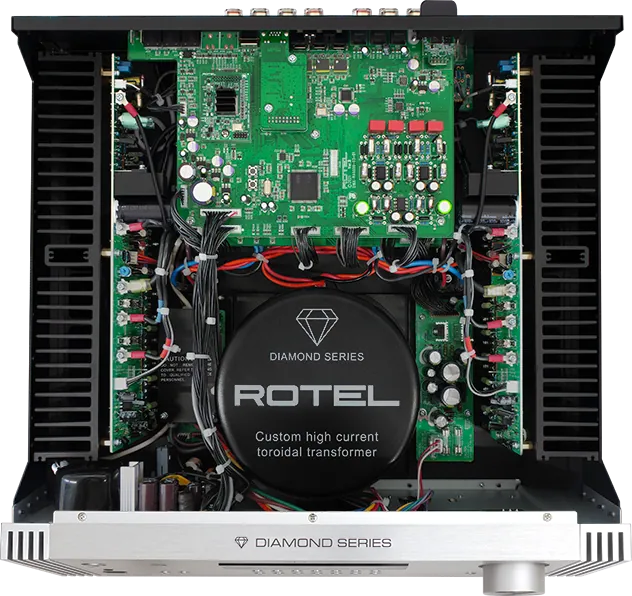

Both analog and digital sources are supported, including high-resolution formats. The amplifier section uses Rotel's in-house power supply and circuit design.
Specifications
| Dimensions (W × H × D) | 431 × 144 × 425 mm17" × 5.7" × 16" |
|---|---|
| Front Panel Height | 3U / 132.6 mm (5.25") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 500 W |
| Standby Power Consumption | <0.5 W |
| Net Weight | 18.81 kg (41.47 lbs.) |
| BTU (4 ohms, 1/8th power) | 1239 BTU/h |
| Power Output (FTC) | 235 W/Ch (8 Ω) |
| Maximum Power Output (Non FTC) | 350 W/Ch (4 Ω) |
| Continuous Power Output (Non FTC) | 200 W/Ch (8 Ω) |
| Total Harmonic Distortion (THD) | <0.0075% |
| Frequency Response | Line Level Inputs: |
| S/N Ratio (IHF "A" Weighted) | Line Level Inputs: 103 dB |
