Rotel · Power Amplifiers
RB-1582 MkII
The RB-1582 MkII is a 2x200W stereo power amplifier using Rotel's Balanced Design Concept.
fig. 01 · power amplifiers
RB-1582 MkII
From Rotel

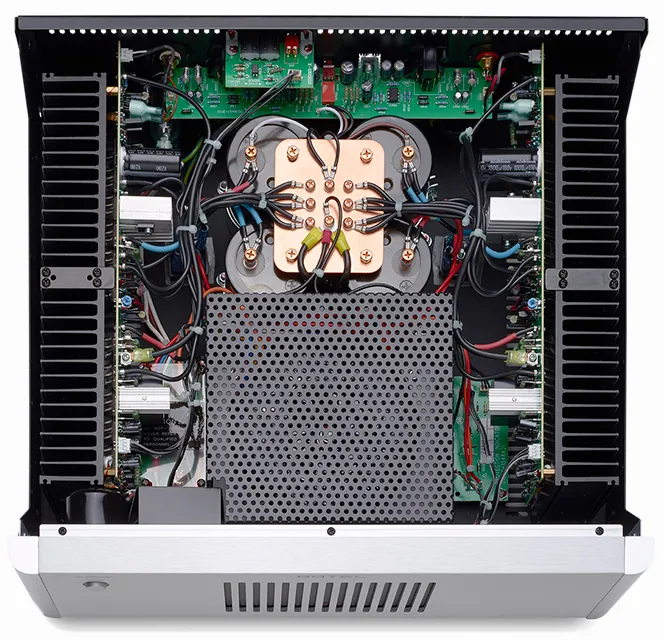

The RB-1582 MkII outputs 2x200W per channel using Rotel's Balanced Design Concept. The circuit layout aims for matched signal paths across both channels.
It sits in the middle of Rotel's stereo power amp range, between the RB-1552 MkII and RB-1590.
Specifications
| Dimensions (W × H × D) | 431 × 144 × 407 mm17" × 5.7" × 16" |
|---|---|
| Front Panel Height | 3U / 132.6 mm (5.25") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 550 W |
| Idle power consumption | 60 W |
| Standby Power Consumption | 0.5 W |
| Net Weight | 17.6 kg (39 lbs.) |
| BTU Rating (4 Ω, 1/8th power) | 1104 BTU/h |
| Power Output | 200 W/Ch (8 Ω) |
| Total Harmonic Distortion (THD) | (20 Hz – 20k Hz) < 0.03% |
| Frequency Response | 10 Hz - 100k Hz ± 0.5 dB |
| S/N Ratio (IHF "A" Weighted) | 116 dB |
| Gain | RCA: 26.5 dB |
