Rotel · Power Amplifiers
RMB-1555
The RMB-1555 is a 5x120W multi-channel power amplifier for medium to large home theaters.
fig. 01 · power amplifiers
RMB-1555
From Rotel

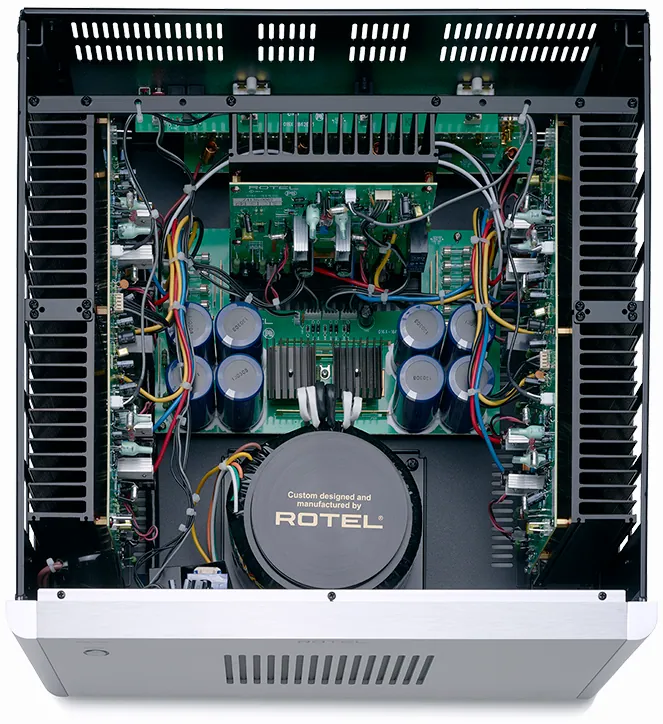

The RMB-1555 delivers 5x120W per channel from a toroidal power supply. It's built for medium and large home theater systems.
It shares the same chassis and build approach as the higher-powered RMB-1585.
Specifications
| Dimensions (W × H × D) | 431 × 188 × 454mm17" × 7.5" × 17.9" |
|---|---|
| Front Panel Height | 4U / 176.8mm (7") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 650W |
| Standby Power Consumption | 0.5W |
| Net Weight | 21.8kg (48lbs.) |
| BTU Rating (4Ω, 1/8th power) | 1683 BTU/h |
| Power Output | 120W/Ch (5 channels driven, 8Ω) |
| Total Harmonic Distortion (THD) | (20Hz–20kHz) <0.03% |
| Frequency Response | 10Hz - 100kHz +0.5, -3dB |
| S/N Ratio (IHF "A" Weighted) | 116dB |
| Gain | 26.5dB |
