Rotel · Power Amplifiers
RMB-1587MKII
The RMB-1587MKII is a 7-channel Class AB amplifier delivering 150W per channel for multi-channel systems.
fig. 01 · power amplifiers
RMB-1587MKII
From Rotel

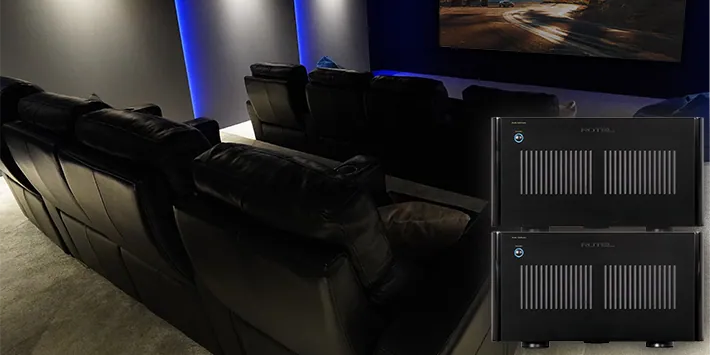

The RMB-1587MKII drives 7 channels at 150W each in Class AB. It's built for home theater and multi-channel music systems.

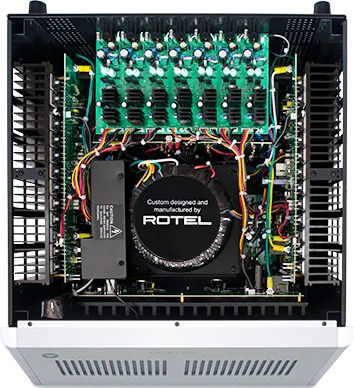

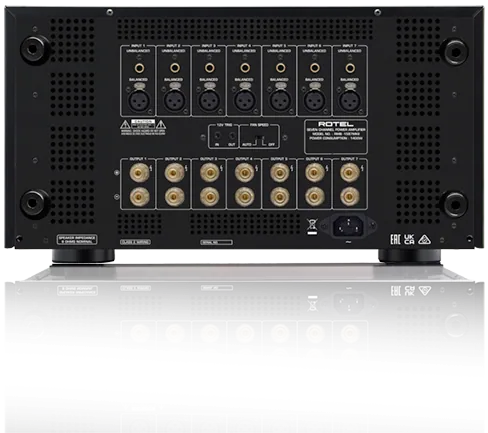

Rotel's in-house toroidal transformer and amplifier design carry over from the stereo range. RCA inputs connect to a surround processor or preamplifier.
Specifications
| Dimensions (W × H × D) | 431 × 237 × 456 mm |
|---|---|
| Front Panel Height | 5U / 221mm (8.75") |
| Power Requirements | 120 V, 60 Hz |
| Power Consumption | 1400 W |
| Net Weight | 37.6 kg (82.9 lbs.) |
| BTU Rating (4 Ω, 1/8th power) | 4016 BTU/h |
| FTC Power Output RATING | 165 W/Ch (7 channels driven, 8 Ω) |
| Continuous Power Output | 155 W/Ch (7 channels driven, 8 Ω) |
| Total Harmonic Distortion (THD) | (20 Hz–20 kHz) <0.03% |
| Frequency Response | 10 Hz - 100 kHz, +0 dB, -3 dB |
| S/N Ratio (IHF "A" Weighted) | 111 dB |
| Gain | 26.6 dB |
| Crosstalk/Separation | >55dB |
