Rotel · All-in-One Systems

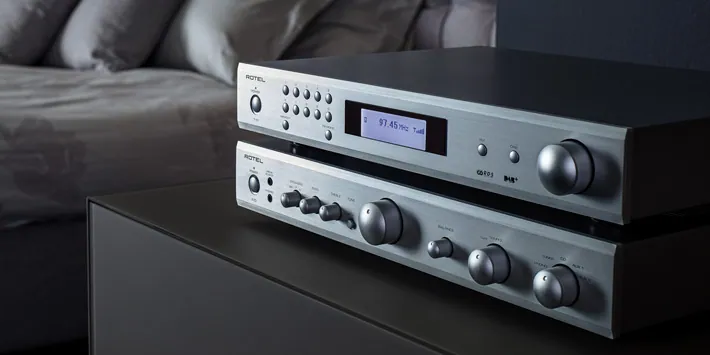

T11
The T11 is a high-quality FM/DAB+ tuner with up to 30 station presets.
fig. 01 · all-in-one systems
T11
From Rotel
The T11 receives FM and DAB+ radio broadcasts. It stores up to 30 station presets.
It's one of the few dedicated radio tuners still in production, built for systems where broadcast radio is a primary source.
Specifications
| Dimensions (W × H × D) | 430 × 73 × 330mm17" × 2.9" × 13" |
|---|---|
| Front Panel Height | 60mm (2.36") |
| Power Requirements | 120V, 60Hz |
| Power Consumption | 10W |
| Standby Power Consumption | <0.5W |
| Net Weight | 4.3kg (9lbs.) |
| BTU Rating | 17 BTU/h |
| DAB Sensitivity | -80dBm |
| DAB Tuning Range | Band III (174-240MHz) |
| DAB Audio Date Rate | 224Kbps Max |
| DAB Frequency Response | 20Hz - 20kHz ±1dB |
| DAB Analog Output | 2.1V at 0dBfs |
| DAB Antenna Input | 75Ω F Connector |
