T+A · Power Amplifiers

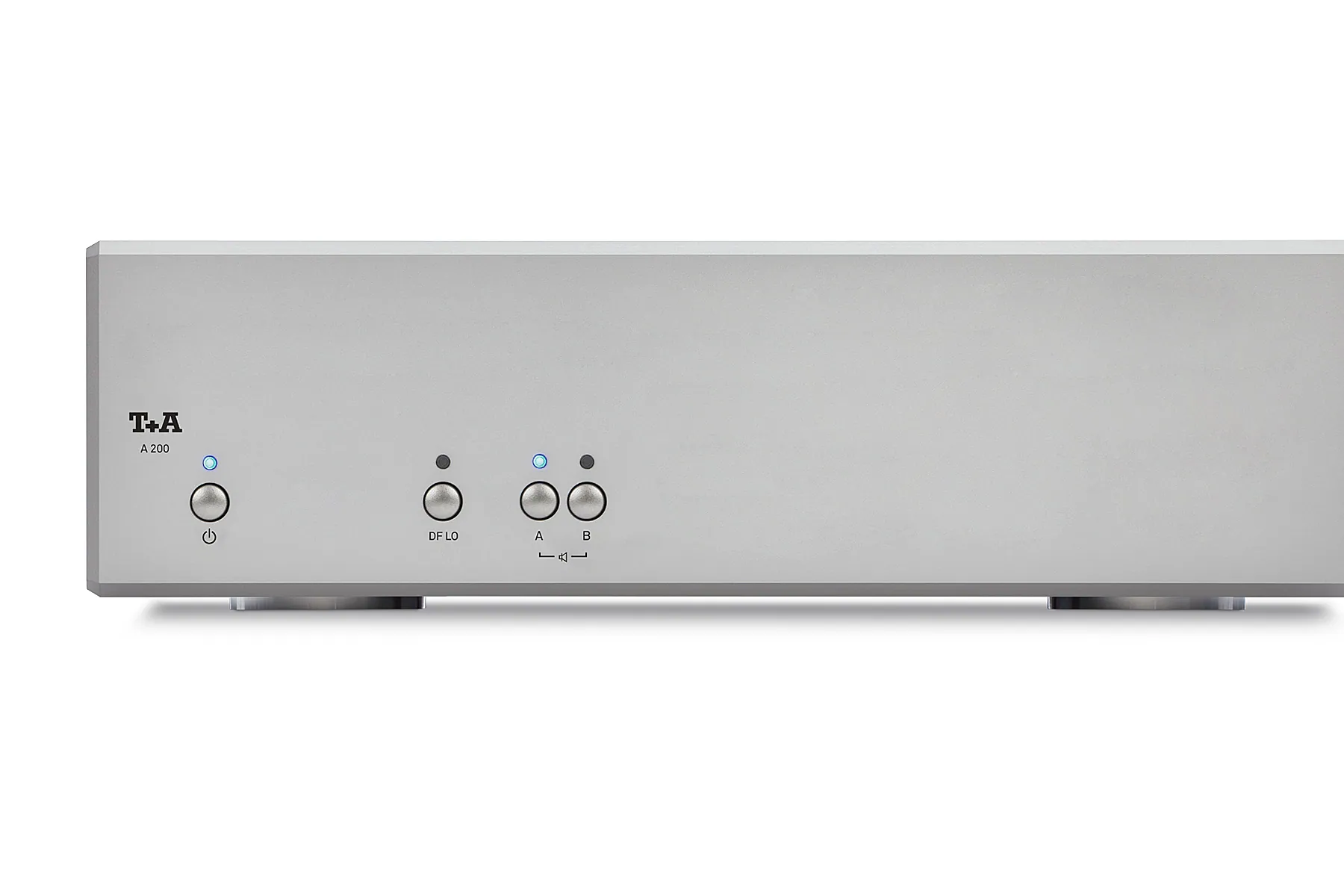

A 200 Power Amplifier
Series 200 stereo amplifier rated at 250 W into 4 ohms.
fig. 01 · power amplifiers
A 200 Power Amplifier
6 photographs · 5 shown
From T+A
A 200 is a Series 200 stereo power amplifier rated at 250 watts per channel into 4 ohms and 125 watts into 8 ohms. It has RCA and balanced XLR input sensitivity specs, a damping factor above 800, 1 Hz to 60 kHz frequency response, E2-Link cable, and a 10 x 32 x 34 cm chassis.
Specifications
| Output Stage: Nominal power per channel | 250 Watts @ 4 Ohms125 Watts @ 8 Ohms |
|---|---|
| Output Stage: Frequency response + 0 / − 3 dB | 1 Hz – 60 kHz |
| Output Stage: Signal to noise ratio | 113 dB |
| Output Stage: THD / Intermodulation | < 0,002 % / < 0,002 % |
| Output Stage: Channel separation | > 103 dB |
| Output Stage: Damping factor | > 800 / DF LO > 70 |
| Output Stage: Gain factor | 37,4 (31,4 dB) |
| Output Stage: Input sensitivity nominal | High level (RCA) 800 mVeff / 5,8 kOhmsBalanced (XLR) 1,6 Veff / 20 kOhms |
| Mains / Accessories / Dimensions: Mains | 220 – 240 V, 50 – 60 Hz |
| Mains / Accessories / Dimensions: Power consumption | max. 600 Watts25 Watts while power on and idling with no signal |
| Mains / Accessories / Dimensions: Standby | < 0,5 Watts |
| Mains / Accessories / Dimensions: Dimensions (H × W× D) | 10 × 32 × 34 cm,4 x 12.6 x 13.4 inch |
| Mains / Accessories / Dimensions: Accessories | Power cord, E2-Link-cable |
| Mains / Accessories / Dimensions: Weight | 5 kg, 11 lbs |
| Mains / Accessories / Dimensions: Finishes | Alu silver anodized (43), Alu schwarz anodized (42) |
| Power output | 250 Watts of continuous power per channel |
