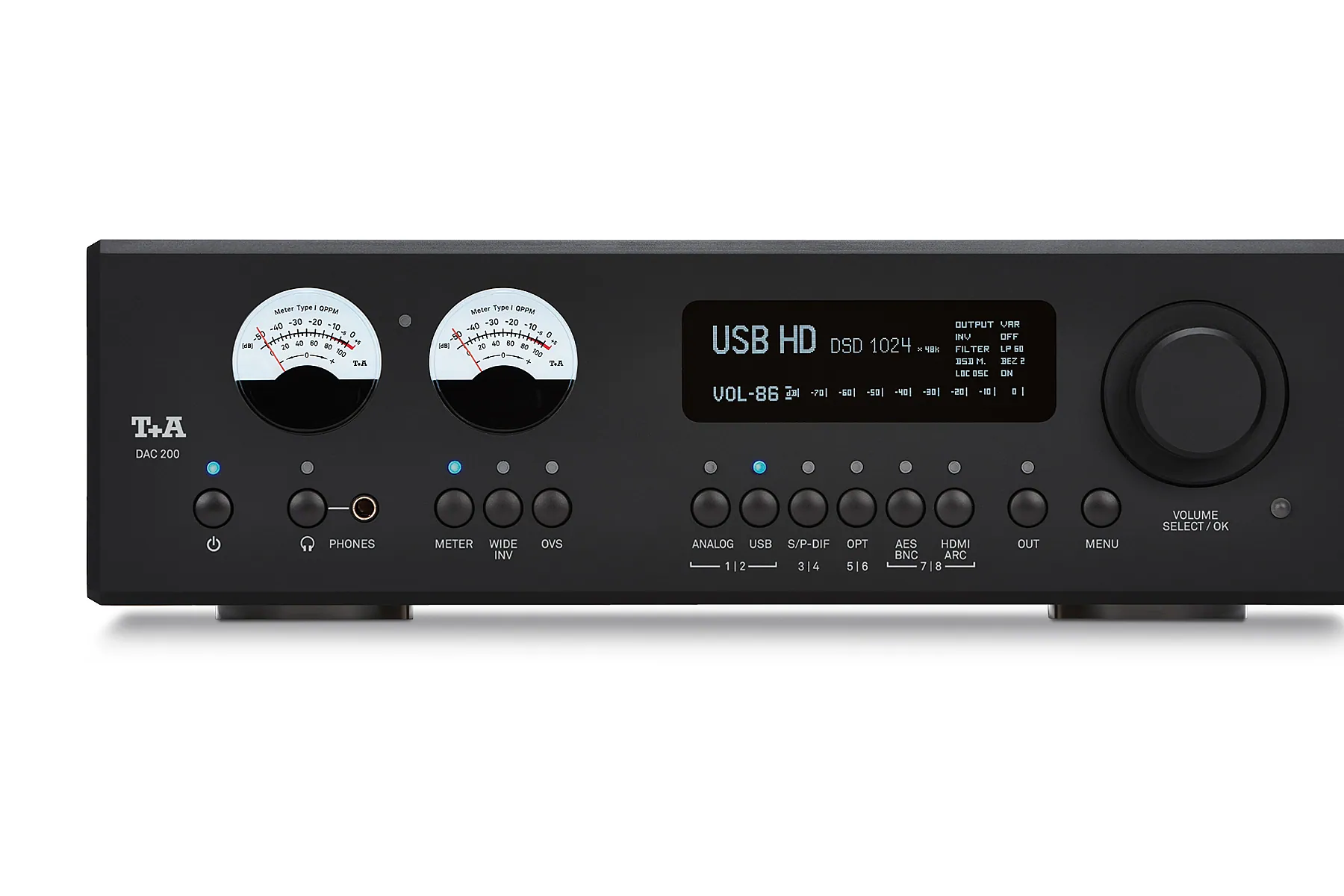

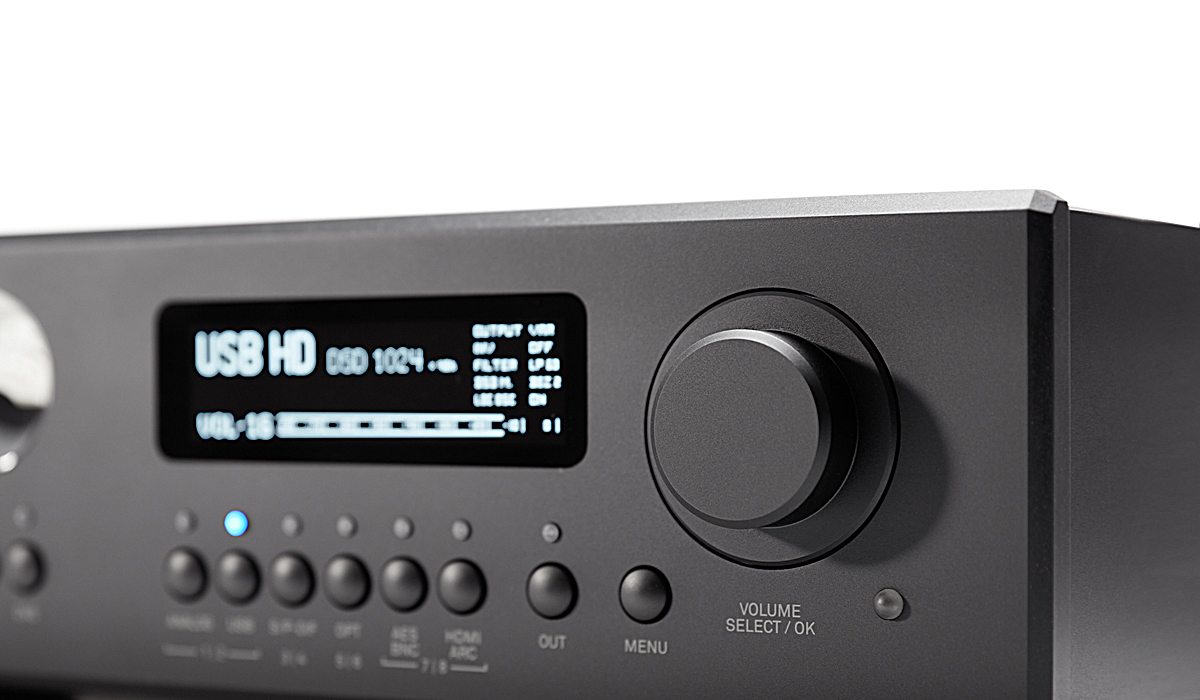

DAC 200 D/A Converter
Series 200 DAC/preamp with DSD 1024 and headphone output.
fig. 01 · dacs
DAC 200 D/A Converter
7 photographs · 5 shown
From T+A
DAC 200 is a Series 200 D/A converter with variable and fixed RCA and balanced XLR preamp outputs, RCA analogue input, 4.4 mm Pentaconn headphone output, and relay-based volume control. Its converter section supports PCM up to 768 kSps and native DSD up to DSD 1024.
Specifications
| Analogue section: Frequency response + 0 / − 3 dB | 0,1 Hz – 200 kHz |
|---|---|
| Analogue section: Signal / noise ratio | 110/114 dB |
| Analogue section: THD / Intermodulation | < 0,001 % / < 0,001 % |
| Analogue section: Channel separation | > 108 dB |
| Analogue section: Pre-amplifier outputs | variable:High level (RCA) 0...2,5 Veff / 22 Ohms, balanced (XLR) 0...5,0 Veff / 22 Ohmsfixed:High level (RCA) 2,5 Veff / 22 Ohms, balanced (XLR) 5,0 Veff / 22 Ohmsdiscreetly designed Class A-HV-output stage in Double-Mono-Circuitry |
| Analogue section: Volume control | Gold contact relays controlled in 1 dB steps, - 90 dB to 0 dB |
| Analogue section: Headphone output | 4.4 mm Pentaconn, discreetly designed high performance output stage, Class A operation up to 200 mA, 6 Ohms output impedance |
| Analogue inputs: High level (RCA) | 250 mVeff ... 4,5 Veff / 10 kOhms |
| D/A converter section: PCM | Double-Differential-Quadruple-Converter with four 32-Bit Sigma-DeltaD/A converter per channel, 705,6 / 768 kSps conversion rate |
| D/A converter section: DSD | T+A-True-1Bit DSD D/A converter, up to DSD 1024 (49,2 MHz), native bitstream |
| D/A converter section: Upsampling | T+A signal-processor – synchronous upsampling with four selectable oversampling algorithms. FIR short, FIR long, Bezier/IIR, Bezier, NOS (non-oversampling) |
| D/A converter section: Analogue filter | Phase-linear Bessel filter 3rd order, switchable with 60 or 120 kHz cut off frequency |
| Mains / Accessories / Dimensions: Mains | 200 – 240 V, 50 – 60 Hz, 30 Watts |
| Mains / Accessories / Dimensions: Standby | < 0,5 Watts |
| Mains / Accessories / Dimensions: Dimensions (H × W× D) | 10 × 32 × 34 cm, 4 x 12.6 x 13.4 inch |
| Mains / Accessories / Dimensions: Accessories | Remote control FM200, power cord, USB cable |
| Mains / Accessories / Dimensions: Weight | 6,2 kg, 13.7 lbs |
| Mains / Accessories / Dimensions: Finishes | Alu silver anodized (43), Alu schwarz anodized (42) |
| Digital format support | DSD 1024 files |
