M 40 HV Mono Power Amplifier
HV-series mono amplifier rated at 1000 W into 4 ohms.
fig. 01 · power amplifiers
M 40 HV Mono Power Amplifier
From T+A
M 40 HV is an HV-series mono power amplifier rated at 550 watts into 8 ohms and 1000 watts into 4 ohms. It supports pure Class A operation up to 60 watts, Class AB up to 250 watts, RCA plus 3-pin and 4-pin XLR inputs, and a 56 x 36 x 47 cm, 52 kg chassis.
Specifications
| Mono Power Amplifier: into 8 Ohmsinto 4 Ohms | 550 Watts1000 Watts |
|---|---|
| Mono Power Amplifier: into 8 Ohmsinto 4 Ohms 2 | 570 Watts1070 Watts |
| Mono Power Amplifier: Power | up to 60 Watts pure Class A, up to 250 Watts Class AB |
| Mono Power Amplifier: Frequency response + 0 / – 3 dB | 1 Hz – 150 kHz |
| Mono Power Amplifier: Slew rate | 65 V/μs |
| Mono Power Amplifier: Damping factor | > 115 |
| Mono Power Amplifier: Signal / noise ratio | > 114 dB |
| Mono Power Amplifier: Distortion (5W, 4 Ohms, 1 kHz) | < 0,009 % |

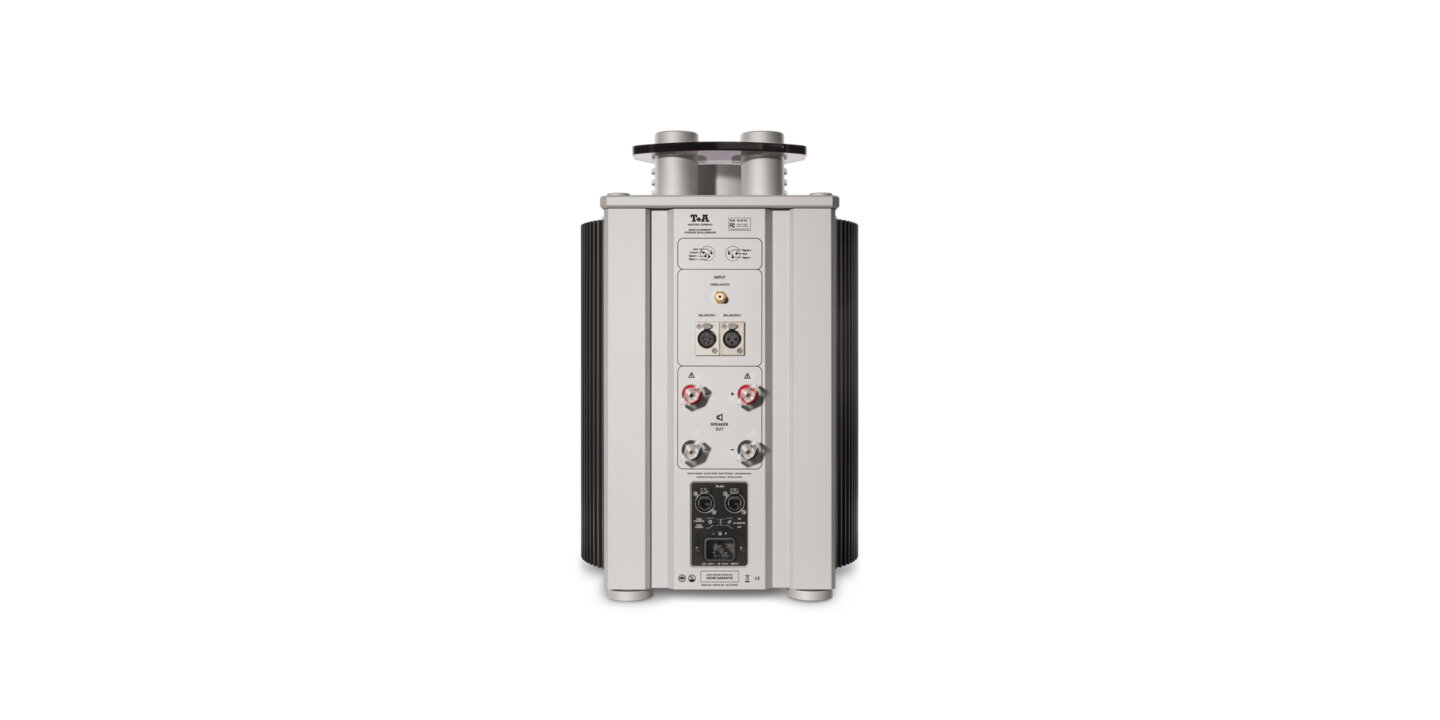

| Mono Power Amplifier: Inputs | unbalanced (RCA), balanced XLR 3 pin and XLR 4 pin |
| Mono Power Amplifier: PWR supply capacity | 180000 μF |
| Mains / Accessories / Dimensions: Mains110-150 V/60 Hz or 220-230 V/50 Hz / 1500 W | 2500 Watts |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Features | Trigger input +5 ... 20V for external switching-on |
| Mains / Accessories / Dimensions: Optional Accessories | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Audio Triax (Carbon) | Speaker Hex (Carbon)| IP control |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 56 x 36 x 47 cm |
| Mains / Accessories / Dimensions: Weight | 52 kg |
| Mains / Accessories / Dimensions: Finishes | Case: silver laquer 47 or titanium laquer 64,heat sink: black 42 |
