T+A · CD & SACD Players
MP 200 G3 Multi Source Player
Series 200 source player with CD, streaming, FM/DAB, and Bluetooth.
fig. 01 · cd & sacd players

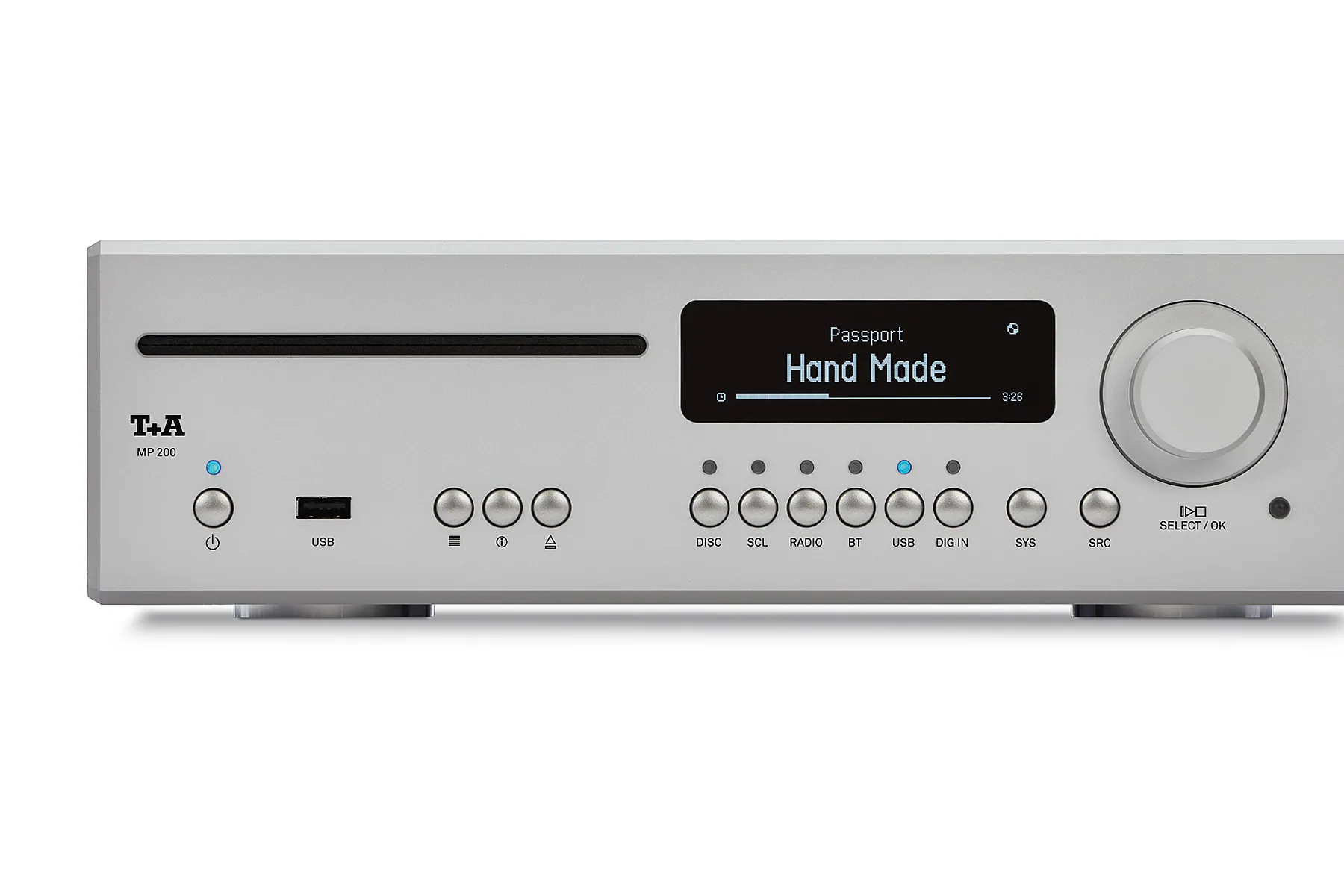

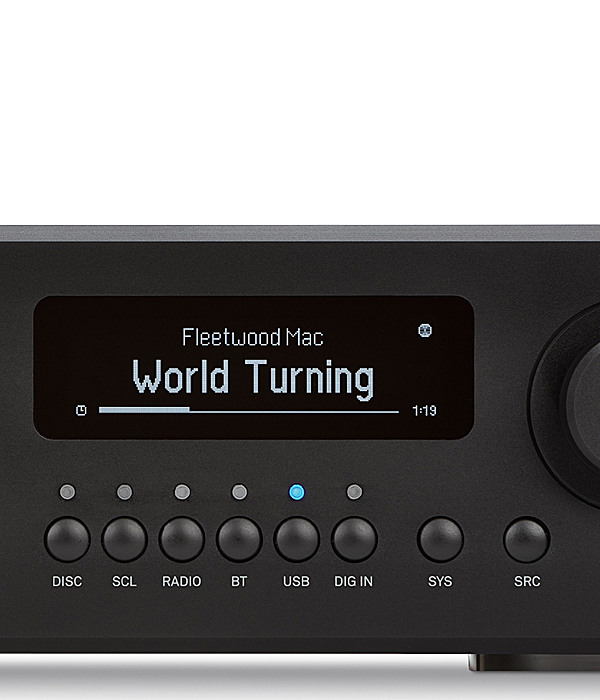

MP 200 G3 Multi Source Player
6 photographs · 5 shown
From T+A
MP 200 G3 is a Series 200 multi-source player with CD playback, streaming, FM/FM-HD, DAB/DAB+, Bluetooth, Gigabit Ethernet, WLAN, and T+A SYS Link control with DAC 200 or HA 200. It supports PCM streaming data up to 384 kHz, DSD64/128/256, and includes USB-SYS and RJ-45 SYS-Link cables.
Specifications
| CD-Player: Formats | CD/DA, CD-R, CD-RW, CD-text |
|---|---|
| CD-Player: Frequency response and dynamic range | 2 Hz – 20 kHz / 100 dB |
| Streaming Client: Formats / Standards | MP3, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV, M4A (AAC/ALAC), DFF, DSF |
| Streaming Client: Data rates | PCM 32...384 kHz,16/24 Bit; MP3 bis 320 kBit,constant and variable data rateDSD64, DSD128, DSD256 |
| Streaming Client: Music services | airable radio und podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, HIGHRESAUDIO, Tidal connect, Spotify connect, Qobuz connect, Apple AirPlay2, Plays with Audirvana, Roon Ready |
| Streaming Client: Features | Gapless Playback for MP3 (Lame), WAV, FLACT+A MusicNavigator für iOS und Android |
| Streaming Client: Network | LAN: Gigabit EthernetWLAN: IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)Channel 1 – Channel 13North America FCC, Japan MIC, Europe ETSI20MHz bandwidth5.180-5.825 GHz (5GHz UNII-1/2/3 Band, 24 Channels)North America (IC and FCC):5.180-5.600 GHz, 5.650-5.825 GHzEurope, Japan (ETSI and MIC):5.180-5.700 GHzmax gain in 2.4GHz band: 3.2dBimax gain in 5 GHz band: 4.25dBiup to 17dBm (at antenna terminal) |
| Tuner FM: Frequency range | FM Radio 87,5 – 108 MHz (Europe / US); 76 – 90 MHz (Japanese version) |
| Tuner FM: Sensitivity | Mono (26dB S/N) 0,9 µV, Stereo (46 dB S/N) 40 µV |
| Tuner FM: Overload margin | 103 dB µV |
| Tuner FM: Stereo channel separation | 50dB |
| Tuner FM: RDS Functions | Stationname, Radio text |
| Tuner DAB: Reception standard | DAB, DAB+ |
| Tuner DAB: Freqency band | 168 – 240 MHz (Band III) |
| Tuner DAB: Overload margin | 103 dB µV |
| Tuner DAB: Sensitivity (BER = 10 – 4) | 2,5 µV |
| Bluetooth: Supported audio formats | aptX HDâ„¢, MP3, AAC, SBC |
| Bluetooth: Freqency band | 2,4 GHz: 2042Mhz ... 2480Mhz Max. transmission power <10 dBm (EIRP) |
| Bluetooth: RC protocol | AVRCP |
| Mains / Accessories / Dimensions: Mains in | 200 – 240 V, 50 – 60 Hz, 25 Watts |
| Mains / Accessories / Dimensions: Normal operation (max.) | 25 W |
| Mains / Accessories / Dimensions: Standby (ECO) | < 0,50 W |
| Mains / Accessories / Dimensions: Automatic power down | After 90 Minutues without music signal |
| Mains / Accessories / Dimensions: Dimensions | 10 × 32 × 34 cm, 4 x 12.6 x 13.4 inch |
| Mains / Accessories / Dimensions: Accessories | Remote control handset FM200, Mains cord, USB-SYS-cable and RJ-45 SYS-Link-cable for connection of a DAC 200 or HA 200, WLAN and Bluetooth antenna |
| Mains / Accessories / Dimensions: Weight | 4,4 kg, 9.7 lbs |
| Mains / Accessories / Dimensions: Finishes | Alu silver anodized (43), Alu schwarz anodized (42) |
| Disc format support | CD |
| Streaming / radio support | Bluetooth |
