T+A · CD & SACD Players

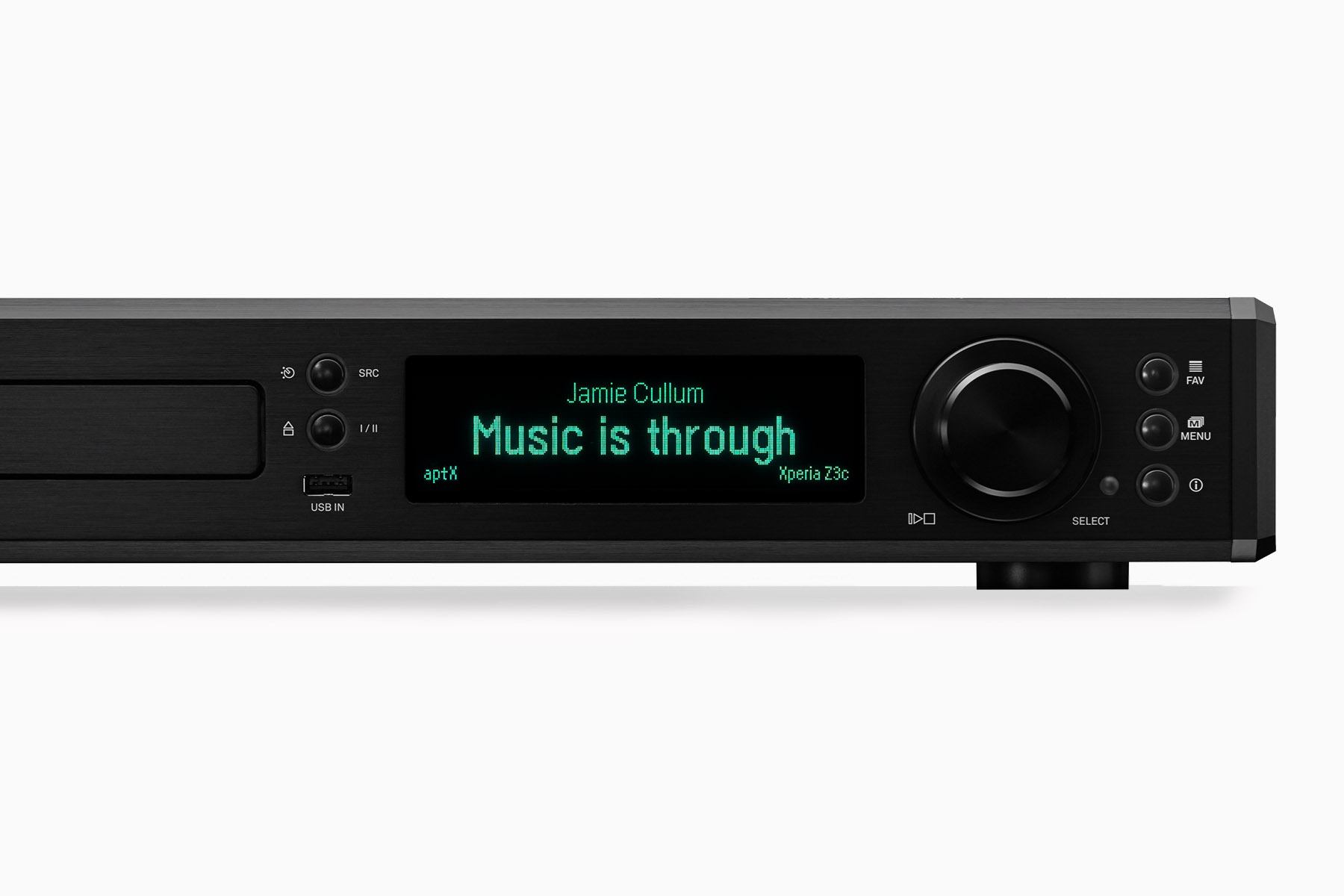

MP 2000 R G3 Multi Source Player
R-series multi-source player with CD, streaming, radio, and USB.
fig. 01 · cd & sacd players
MP 2000 R G3 Multi Source Player
6 photographs · 5 shown
From T+A
MP 2000 R G3 handles CD playback, streaming-client playback, FM/FM-HD, DAB/DAB+, Bluetooth, S/P-DIF inputs, USB device and master inputs, and RCA plus balanced XLR analogue outputs. Its format support includes PCM up to 384 kSps and DSD files up to DSD 512.
Specifications
| CD-Player: Formats | CD/DA, CD-R, CD-RW, CD Text |
|---|---|
| CD-Player: Frequency response + dynamic range | 2 Hz – 20 kHz/100 dB |
| Streaming Client: Formats | MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC, DFF, DSFPCM 32 … 384 kHz, 16/24 Bit; MP3 bis 320 kBitDSD64; DSD128; DSD256 |
| Streaming Client: Supported media servers | UPnP 1.1, UPnP AV and DLNA kompatible Server, Microsoft Windows Media Connect Server (WMDRM10, DLNA compatible servers |
| Streaming Client: Supported streaming services | airable radio and podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, HIGHRESAUDIO, Tidal connect, Spotify connect, Qobuz connect, Apple AirPlay2, Plays with Audirvana |
| Streaming Client: Features | Auto Network Config., Internet Radio Station database (automatic updates) |
| Streaming Client: Interfaces LAN | Fast Ethernet 10/100 Base-T |
| Streaming Client: Interfaces WLAN | IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)Channel 1 – Channel 13North America FCC, Japan MIC, Europe ETSI20MHz bandwidth5.180-5.825 GHz (5GHz UNII-1/2/3 Band, 24 Channels)North America (IC and FCC):5.180-5.600 GHz, 5.650-5.825 GHzEurope, Japan (ETSI and MIC):5.180-5.700 GHzmax gain in 2.4GHz band: 3.2dBimax gain in 5 GHz band: 4.25dBiup to 17dBm (at antenna terminal). |
| Streaming Client: USB | 2x USB 2.0 Mastermode |
| Digital Connecting Board: S/P-DIF digital inputs | 2 high-quality co-ax and two opt. TOS-Link;32kSps; 44.1kSps; 48kSps; 88.2kSps; 96kSps;176.4kSps; 192kSps; 16/24-bit |
| Digital Connecting Board: USB (Device Mode) | USB Class 2 mode; support for asynchronous data transferPCM mode: 44.1kSps; 48kSps; 88.2kSps; 96kSps; 176.4kSps; 192kSps; 352.8kSps; 384kSps;16/24/32-bit DSD mode: DSD 64; DSD 128; DSD 256; DSD 512 |
| Digital Connecting Board: USB (Master Mode) | 2 inputs (1×front panel, 1×back panel),formats as Streaming Client formats |
| FM - Tuner: Reception standard | FM, FM-HD |
| FM - Tuner: Frequency range | 87.5 – 108 MHz (Europe/US Version)76 – 90 MHz (Japan-Version) |
| FM - Tuner: Sensitivity | Mono (26dB S/N) 0.9 uV,Stereo (46 dB S/N) 40 uV |
| FM - Tuner: Overload margin | 103 dB uV |
| FM - Tuner: Total harmonic distortion | 0,1 % |
| FM - Tuner: Signal:noise ratio, mono / stereo | 72/62 dB |
| FM - Tuner: Stereo channel separation | 50 dB |
| FM - Tuner: De-emphasis (Europe/US version) | 50/75 us |
| FM - Tuner: Data services | RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT) |
| DAB - Tuner: Reception standard | DAB, DAB+ |
| DAB - Tuner: Frequency range | 168 – 240 MHz (Band III) |
| DAB - Tuner: Sensitivity (BER = 10 – 4) | 2,5 uV |
| DAB - Tuner: Overload margin | 103 dB uV |
| Bluetooth: Bluetooth | aptX® HD Bluetooth Audio transmission protocolA2DP (Audio) AVRCP 1.4 (Control), MP3, SBC |
| Connections: Analogue outputs high level (RCA) | 2,2 Veff / 50 Ohms |
| Connections: Analogue outputs balanced (XLR) | 4,4 Veff / 50 Ohms |
| Connections: Digital outputs | 1 × coax, IEC 60958 (LPCM) |
| D/A-Converter: PCM | Double differential quadruple converter with four D/A converters per channel,32-bit sigma-delta, 352.8kSps/384kSpsUp-sampling:freely programmable signal processor with four selectable oversampling algorithms. FIR short, FIR long, Bezier/IIR, Bezier |
| D/A-Converter: DSD | Direct DSD signal path via T+A True 1-bit converter |
| D/A-Converter: Frequency response PCM 44,1 kSps | 2 Hz – 20 kHz |
| D/A-Converter: Frequency response PCM 48 kSps / DSD 64 | 2 Hz – 22 kHz / 2 Hz – 44 kHz |
| D/A-Converter: Frequency response PCM 96 kSps / DSD 128 | 2 Hz – 40 kHz / 2 Hz – 60 kHz |
| D/A-Converter: Frequency response PCM 192 kSps / DSD 256 | 2 Hz – 80 kHz / 2 Hz – 80 kHz |
| D/A-Converter: Frequency response PCM 384 kSps / DSD 512 | 2 Hz – 100 kHz / 2 Hz – 100 kHz |
| D/A-Converter: Analogue filter | Phase-linear filter with automatic bandwidth switching 60…120kHz (according to sample rate) |
| D/A-Converter: Total harmonic distortion | < 0,001 % |
| D/A-Converter: Signal:noise ratio | 110 dB |
| D/A-Converter: Channel separation | 110 dB |
| Mains / Accessories / Dimensions: Control interface | R2-Link |
| Mains / Accessories / Dimensions: Remote control | SRC 1, MusicNavigator App |
| Mains / Accessories / Dimensions: Mains connection | 100 – 240 V, 50 – 60 Hz |
| Mains / Accessories / Dimensions: Power consumption max. | 40 Watts |
| Mains / Accessories / Dimensions: ECO-Standby | 0,4 Watt |
| Mains / Accessories / Dimensions: Auto power off function | yes (after 90 minutes without audio signal) |
| Mains / Accessories / Dimensions: Optional Accessories | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Audio Triax (Carbon) | IP-Steuerung |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 8,2 × 46 × 40 cm |
| Mains / Accessories / Dimensions: Weight | 8 kg |
| Mains / Accessories / Dimensions: Finishes | Silver anodised aluminium (43), black anodised aluminium (42), brushed |
| Digital format support | PCM signals up to 384 kSps | DSD files up to DSD 512 |
| Streaming / radio support | FM/FM-HD | Internet radio | Apple AirPlay 2 |
