T+A · CD & SACD Players
MP 2500 R G3 Multi Source Player
R-series SACD/CD player with streaming, radio, and digital inputs.
fig. 01 · cd & sacd players

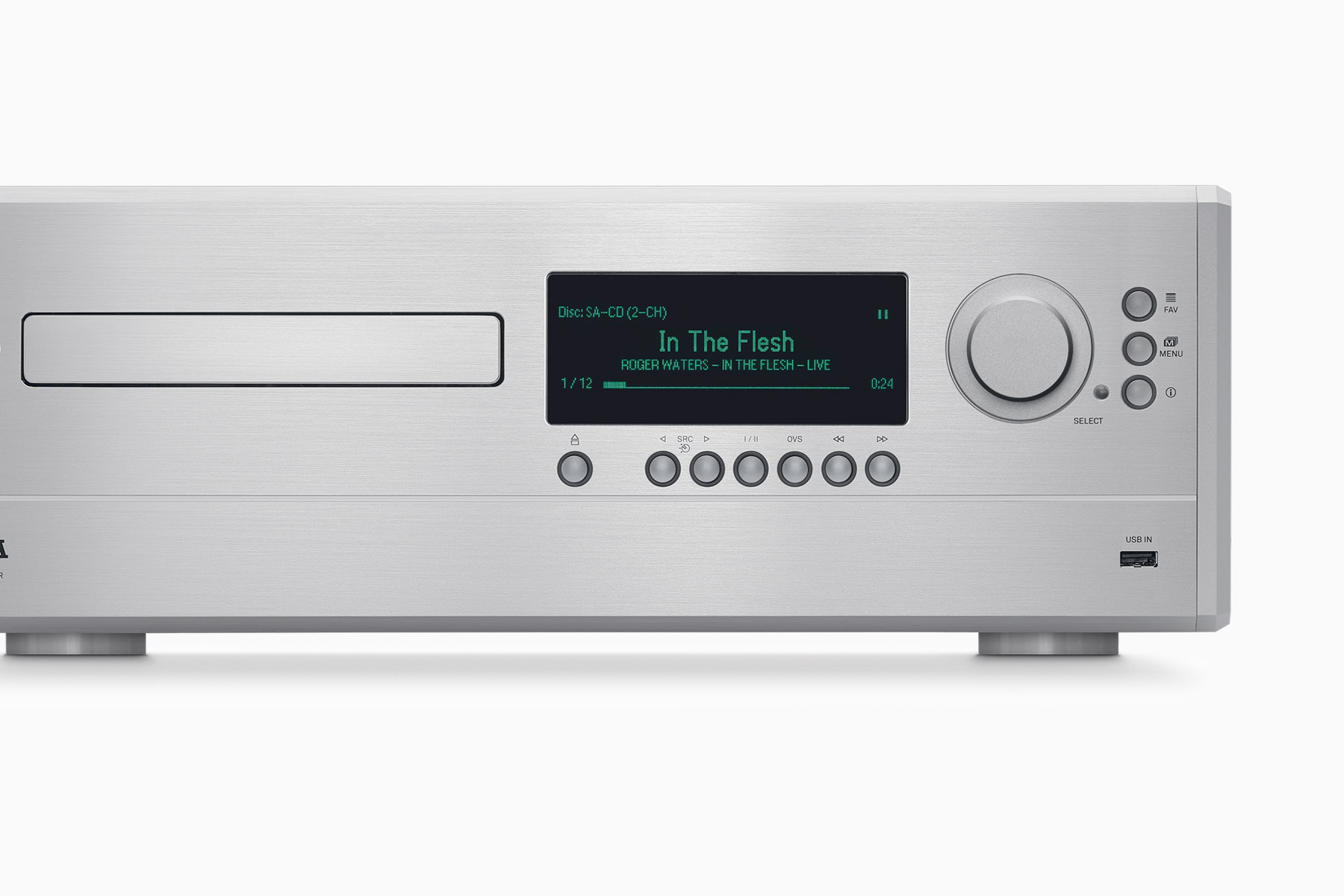

MP 2500 R G3 Multi Source Player
From T+A
MP 2500 R G3 is an R-series multi-source player with SACD/CD playback, streaming-client playback, FM/FM-HD, DAB/DAB+, Internet radio, Bluetooth, S/P-DIF and USB digital inputs, and RCA plus balanced XLR analogue outputs. Its digital format support lists PCM up to 384 kSps and DSD files up to DSD 512.
Specifications

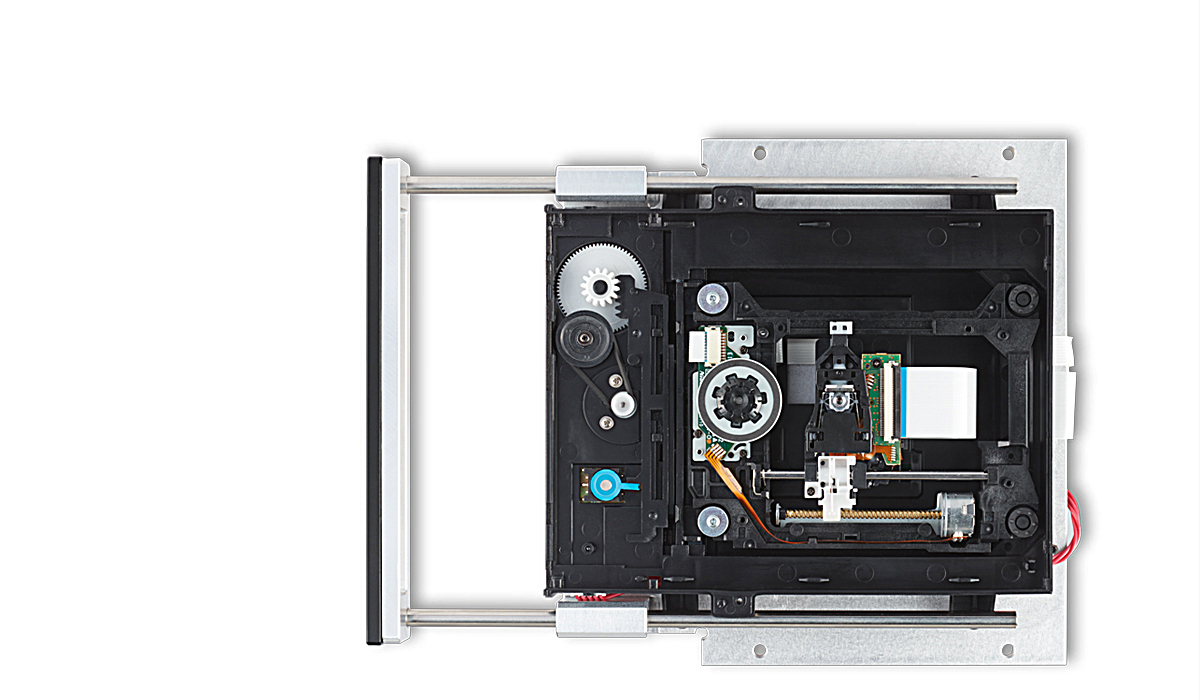

| SACD-Player: Mechanism | High precision linear tracking drive.Double-Lasersystem: SACD: 650 nm, CD: 785 nm |
|---|---|
| SACD-Player: Formats | SACD Stereo, CD/DA, CD-R, CD-RW, SACD/CD Text |
| SACD-Player: Frequency responce / dynamic range | SACD: 2 Hz - 44 kHz / 110 dB, CD: 2 Hz - 20 kHz / 100 dB |
| Streaming Client: Formats | MP3, AAC, OGG-Vorbis, FLAC, WAV, AIFF, ALAC, DFF, DSFPCM 32 … 384 kHz, 16/24 Bit; MP3 bis 320 kBitDSD64; DSD128; DSD256 |
| Streaming Client: Supported media servers | UPnP 1.1, UPnP AV and DLNA kompatible Server, Microsoft Windows Media Connect Server (WMDRM10, DLNA compatible servers |
| Streaming Client: Supported streaming services | airable radio and podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, HIGHRESAUDIO, Tidal connect, Spotify connect, Qobuz connect, Apple AirPlay2, Plays with Audirvana |
| Streaming Client: Features | Auto Network Config., Internet Radio Station database (automatic updates) |
| Streaming Client: Interfaces LAN | Fast Ethernet 10/100 Base-T |
| Streaming Client: Interfaces WLAN | IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)Channel 1 – Channel 13North America FCC, Japan MIC, Europe ETSI20MHz bandwidth5.180-5.825 GHz (5GHz UNII-1/2/3 Band, 24 Channels)North America (IC and FCC):5.180-5.600 GHz, 5.650-5.825 GHzEurope, Japan (ETSI and MIC):5.180-5.700 GHzmax gain in 2.4GHz band: 3.2dBimax gain in 5 GHz band: 4.25dBiup to 17dBm (at antenna terminal). |
| Streaming Client: USB | 2x USB 2.0 Mastermode |
| Digital Connecting Board: S/P-DIF digital inputs | 1x Coax, 2x BNC, 2x TOS-Link |
| Digital Connecting Board: USB (Device Mode) | 1x USB Device-Mode asynchronous |
| Digital Connecting Board: USB (Master Mode) | 2 x USB Master-Mode for USB-storage devices |
| FM - Tuner: Reception standard | FM, FM-HD |
| FM - Tuner: Frequency range | 87,5 - 108 MHz; |
| FM - Tuner: Sensitivity | (>65 dBA S/N) 1 μV |
| FM - Tuner: Overload margin | 103 dB uV |
| FM - Tuner: Total harmonic distortion | 0,1 % |
| FM - Tuner: Signal / noise ratio (mono / stereo) | 72/62 dB |
| FM - Tuner: Stereo channel separation | 50 dB |
| FM - Tuner: De-emphasis | 50/75 us |
| FM - Tuner: Data services | RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT) |
| DAB - Tuner: Reception standard | DAB, DAB+ |
| DAB - Tuner: Frequency range | 168 -240 MHz (Band III) |
| DAB - Tuner: Sensitivity (BER = 10 – 4) | 2,0 μV |
| DAB - Tuner: Overload margin | 103 dB uV |
| Bluetooth: Bluetooth | A2DP (Audio), AVRCP 1.4 (Control) / aptX® HD, MP3, SBC |

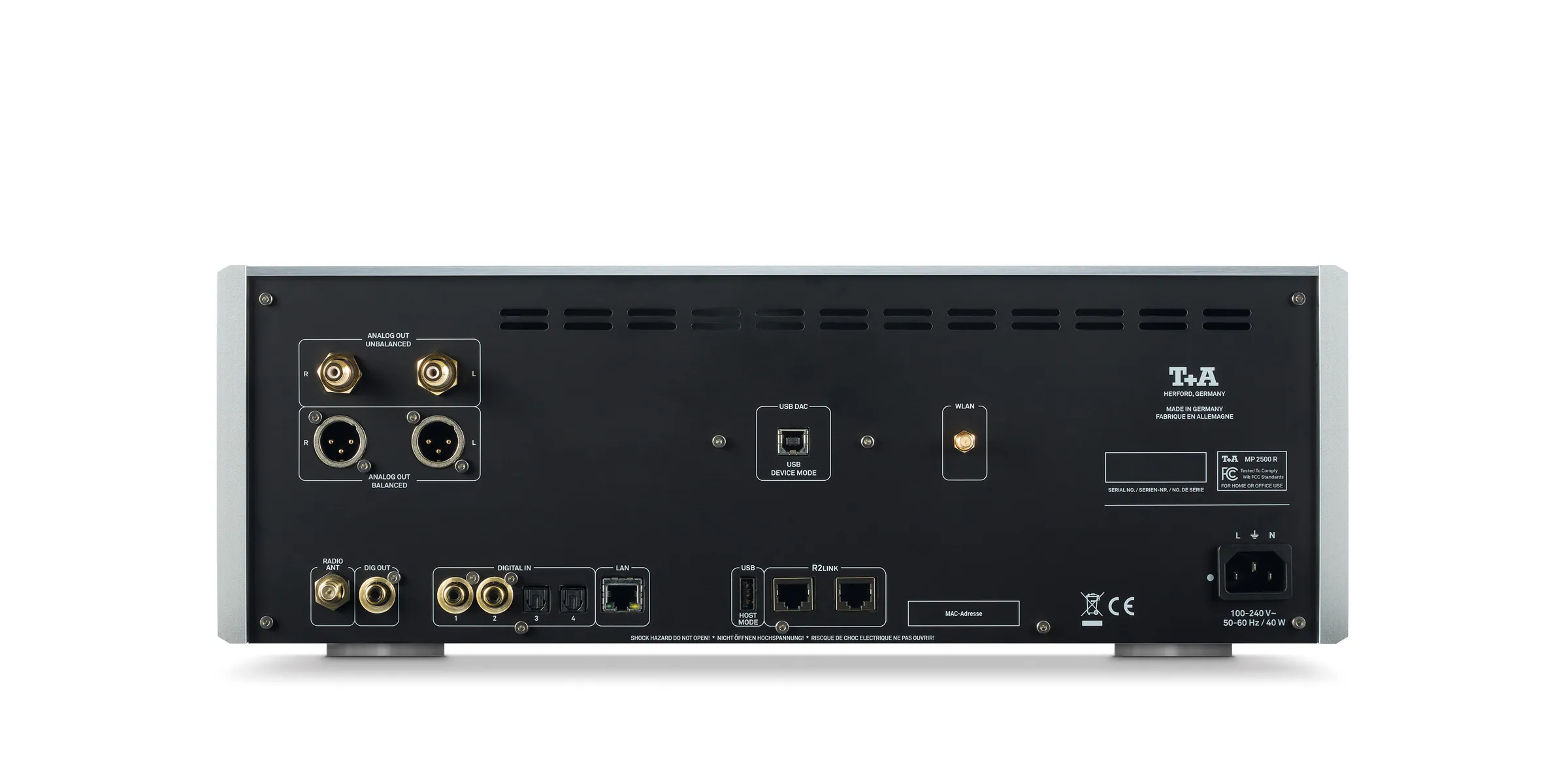

| Connections: Analogue outputs high level (RCA) | 2,5 Veff / 50 Ohms |
| Connections: Analogue outputs balanced (XLR) | 5,0 Veff / 50 Ohms |
| Connections: Digital outputs | 1 x coax, IEC 60958 S/P-DIF (LPCM) |
| D/A-Converter: PCM | Double differential quadruple converter with four D/A converters per channel,32-bit sigma-delta, 352.8kSps/384kSps |
| D/A-Converter: DSD | T+A-True-1Bit DSD D/A-converter up to DSD 512 (22 MHz) |
| D/A-Converter: Frequency response PCM 44,1 kSps | 2 Hz – 20 kHz |
| D/A-Converter: Frequency response PCM 48 kSps / DSD 64 | 2 Hz – 22 kHz / 2 Hz – 44 kHz |
| D/A-Converter: Frequency response PCM 96 kSps / DSD 128 | 2 Hz – 40 kHz / 2 Hz – 60 kHz |
| D/A-Converter: Frequency response PCM 192 kSps / DSD 256 | 2 Hz – 80 kHz / 2 Hz – 80 kHz |
| D/A-Converter: Frequency response PCM 384 kSps / DSD 512 | 2 Hz – 100 kHz / 2 Hz – 100 kHz |
| D/A-Converter: Analogue filter | Phase-linear Bessel filter of 3rd Order with 100 kHz cut off frequency |
| D/A-Converter: Total harmonic distortion | < 0,001 % |
| D/A-Converter: Signal / noise ratio | 116 dB |
| D/A-Converter: Channel separation | 110 dB |
| Mains / Accessories / Dimensions: Control interface | R2-Link |
| Mains / Accessories / Dimensions: Remote control | SRC 1, T+A MusicNavigator APP |
| Mains / Accessories / Dimensions: Mains connection | 100-240 V, 50-60 Hz |
| Mains / Accessories / Dimensions: Power consumption max. | 40 Watts |
| Mains / Accessories / Dimensions: ECO-Standby | 0,3 Watt |
| Mains / Accessories / Dimensions: Auto power off function | yes (after 90 minutes without audio signal) |
| Mains / Accessories / Dimensions: Optional Accessories | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Audio Triax (Carbon) | IP-Steuerung |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 16,5 × 46 × 40 cm |
| Mains / Accessories / Dimensions: Weight | 11,3 kg |
| Mains / Accessories / Dimensions: Finishes | Silver anodised aluminium (43), black anodised aluminium (42), brushed |
| Digital format support | PCM signals up to 384 kSps | DSD files up to DSD 512 |
| Disc format support | SACD | CD |
| Streaming / radio support | FM/FM-HD | Internet radio | Apple AirPlay 2 |
