T+A · CD & SACD Players
MP 3100 HV G3 Multi Source Player
HV-series SACD player with streaming, radio, Bluetooth, and digital inputs.
fig. 01 · cd & sacd players

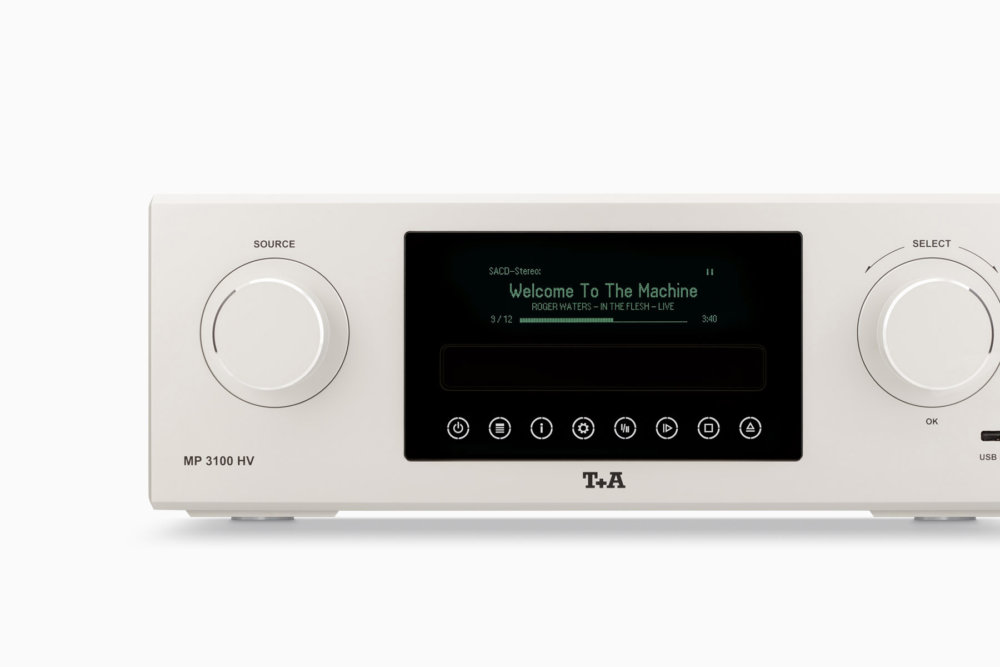

MP 3100 HV G3 Multi Source Player
6 photographs · 5 shown
From T+A
MP 3100 HV G3 combines SACD/CD playback, streaming-client playback, FM/DAB radio, Bluetooth, and digital inputs in an HV-series source. It handles separate PCM and DSD conversion paths, SACD Stereo/CD/CD-R/CD-RW formats, PCM up to 384 kHz through the streaming client, and RCA plus balanced XLR analog outputs.
Specifications
| SACD drive unit: SACD drive unit | High precision linear tracking driveDouble-Lasersystem: SACD: 658 nm, CD: 790 nm |
|---|---|
| SACD drive unit: Formats | SACD Stereo, CD, CD-R, CD-RW, CD Text |
| SACD drive unit: Frequency range and dynamics | CD: 2 Hz – 20 kHz / 100 dB,SACD: 2 Hz – 44 kHz / 110 dB |
| Streaming Client: Formats / Standards | MP3, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV |
| Streaming Client: Data rates | PCM 32...384 kHz,16/24 Bit; MP3 bis 320 kBit,constant and variable data rateDSD64, DSD128, DSD256 |
| Streaming Client: Music services | airable radio und podcasts, Tidal, Qobuz, Deezer, Amazon Music HD, HIGHRESAUDIO, Tidal connect, Spotify connect, Qobuz connect, Apple AirPlay2, Plays with Audirvana |
| Streaming Client: Features | Gapless Playback for MP3 (Lame), WAV, FLACT+A Music Navigator für iOS und Android |
| Streaming Client: Network | LAN: Gigabit EthernetWLAN: IEEE 802.11a/b/g/n/ac/ax 2x2 MIMO2.412 – 2.472 GHz (2.4GHz ISM Band, 13 Channels)Channel 1 – Channel 13North America FCC, Japan MIC, Europe ETSI20MHz bandwidth5.180-5.825 GHz (5GHz UNII-1/2/3 Band, 24 Channels)North America (IC and FCC):5.180-5.600 GHz, 5.650-5.825 GHzEurope, Japan (ETSI and MIC):5.180-5.700 GHzmax gain in 2.4GHz band: 3.2dBimax gain in 5 GHz band: 4.25dBiup to 17dBm (at antenna terminal) |
| Tuner: Internet Radio | Airable Internet Radio Service (> 11000 Stations) |
| Tuner: FM, FM-HD | 87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA |
| Tuner: DAB, DAB+ | 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA. |
| Tuner: Features | RDS/RDBS, station name (PS), programme type (PTY), radiotext (RT), time |
| Bluetooth: Bluetooth | A2DP (Audio), AVRCP 1.4 (Control) / aptX® HD, MP3, SBC. |
| Connections: Outputs analogue Co-axial (RCA) | Balanced (XLR) | 2,5 Veff / 50 Ohm | 5,0 Veff / 50 Ohm |
| Connections: Output digital | 1 x coax, IEC 60958 S/P-DIF (LPCM) |
| Connections: Digital inputs (digital connecting board) | 1x AES-EBU 192 kSps /24 bit5x S/P-DIF: 1x standard coax, 2 high quality BNC 192 kSps/24 bit and 2 optical TOS-Link 96 kSps /24 bit.1x USB: Device-Mode up to. 384 kSps (PCM) and DSD512*, supports asynchronous data transfer2 x USB Master-Mode for USB-Mass storage (Stick or HDD)* DSD256 and DSD512 only with a Windows PC with appropriate driver installed |
| D/A Converter: PCM | Double-Differential-Quadruple-Converter with four 32-Bit Sigma Delta D/A converters per channel. 352.4 / 384 kSps conversion rate. |
| D/A Converter: DSD | T+A True-1Bit DSD D/A-Converter native bitstream |
| D/A Converter: Upsampling (PCM) | T+A Digital Signal Processor - synchronous upsampling with 4 selectable oversampling algorithms: FIR short, FIR long, Bezier/IIR, Bezier |
| D/A Converter: Analogue filter | Phase-linear Bessel filter 3rd Order with 60 or 120 kHz cut off frequency |
| D/A Converter: Frequency responce | PCM 44.1 kSps: 2 Hz - 20 kHzPCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHzPCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHzPCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHzPCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHz |
| D/A Converter: Total harmonic distortion | < 0,001 % |
| D/A Converter: Signal / noise ratio | > 116 dB |
| D/A Converter: Channel separation | > 110 dB |
| Mains / Accessories / Dimensions: Mains | 2 x 110-120 V or 220-240 V, 50-60 Hz, 2 x 40 W |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) / Weight | 17 x 46 x 46 cm / 26 kg |
| Mains / Accessories / Dimensions: Remote control | F 3100, IR radio remote control T+A MusicNavigator APP |
| Mains / Accessories / Dimensions: Accessories | WLAN aerial, BNC / RCA adapter |
| Mains / Accessories / Dimensions: Optional Accessories | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | HV-Individual finish (Individual colours on request) |
| Mains / Accessories / Dimensions: Finishes | case: silver laquer 47 or titanium laquer 64heat sink black 42 |
| Disc format support | SACD |
