P 3100 HV Preamplifier
HV-series preamp with RCA, XLR, headphone, and pre-out paths.
fig. 01 · preamplifiers
P 3100 HV Preamplifier
From T+A

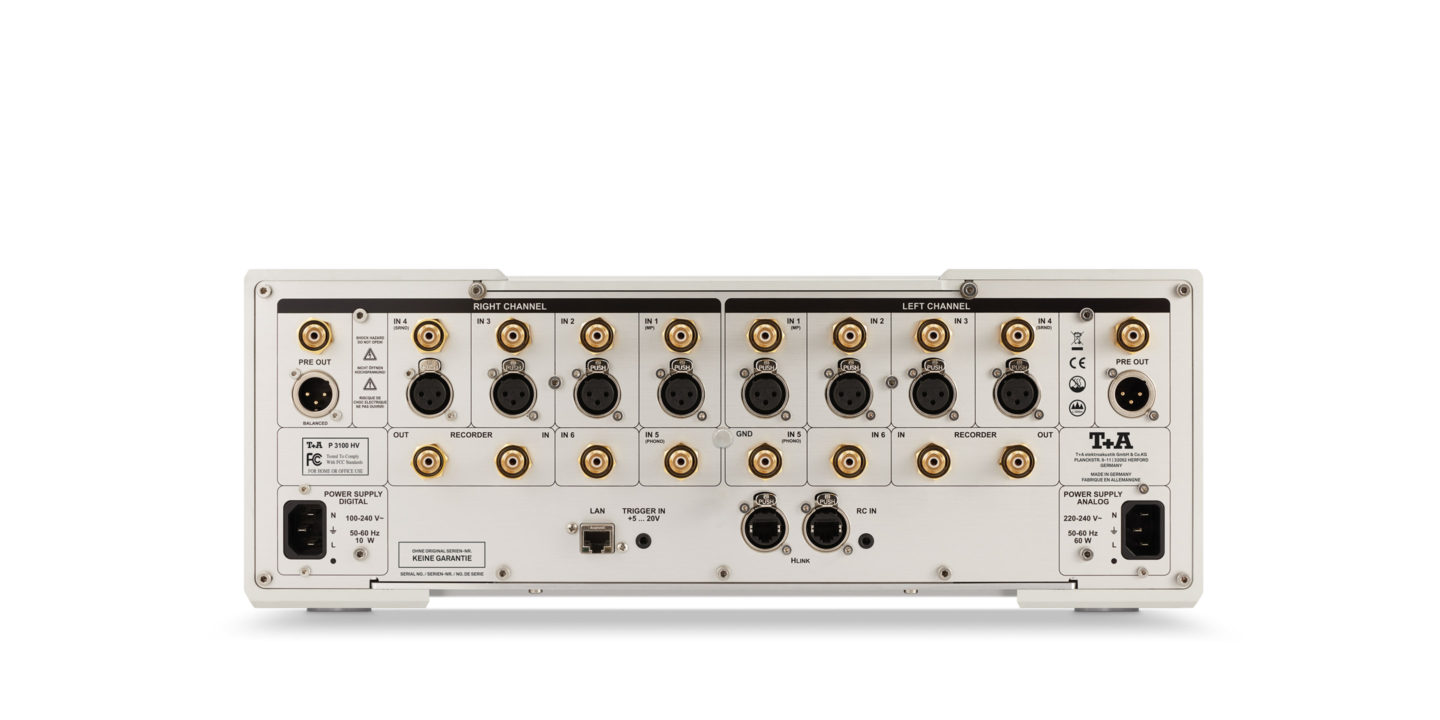

P 3100 HV is an HV-series preamplifier for switching, volume control, signal processing, and output to power amplifiers. It has 7 RCA inputs, 4 balanced XLR inputs, headphone output, RCA and XLR pre-outs, an optional MM or MC phono module slot, surround-mode setup on input 4, and 75,000 μF reservoir capacity.
Specifications
| Preamplifier stage: Frequency response + 0 / – 3 dB | 0,5 Hz – 300 kHz |
|---|---|
| Preamplifier stage: Signal / noise ratio | 108 / 112 dB |
| Preamplifier stage: Total harmonic distortion | < 0,001% |
| Preamplifier stage: Intermodulation | < 0,001 % |
| Preamplifier stage: Channel separation | > 108 dB |
| Preamplifier stage: Unbalanced inputs (RCA) | 7 x 250 mVeff ... 9 Veff / 20 kOhms |
| Preamplifier stage: Balanced inputs (XLR) | 4 x 500 mVeff ... 18 Veff / 5 kOhms |
| Outputs: Headphones | 50 Ohms high current |
| Outputs: 1 x Recorder | 250 mVeff / 100 Ohms |
| Outputs: PRE out RCA | Nom 1 Veff, Max 9,5 Veff / 50 Ohms |
| Outputs: PRE out XLR | Nom 1,45 Veff, Max 19,6 Veff / 50 Ohms |

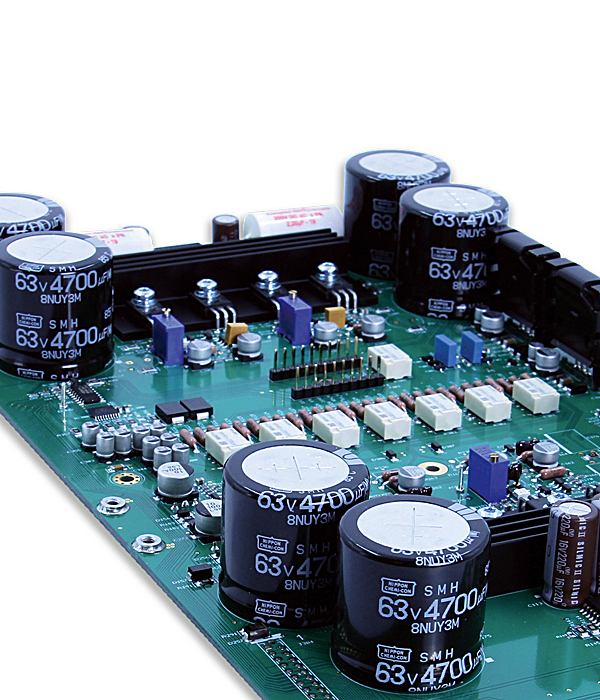

| Outputs: Reservoir capacity | 75000 μF |
| Mains / Accessories / Dimensions: Mains | 2 x 110 - 120 V/60 Hz or 220 - 240 V/50 Hz,10 + 60 Watts rated current consumption |
| Mains / Accessories / Dimensions: Standbybetrieb | < 0,5 W |
| Mains / Accessories / Dimensions: Features | Trigger input +5 ... 20 V for external switching-oninput 4 can be configured in surround modeanalogue signal processing moduleslot for optional phono content_default MM / MC |
| Mains / Accessories / Dimensions: Remote control | F 3001 |
| Mains / Accessories / Dimensions: Accessories | 2 x power cord, remote control receiver E 2000 |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 17 x 46 x 46 cm |
| Mains / Accessories / Dimensions: Weight | 28 kg / 61.7 lbs |
| Mains / Accessories / Dimensions: Finishes | case: silver laquer 47 or titanium laquer 64heat sink black 42 |
