PA 2000 R Integrated amplifier
R-series amplifier rated above 200 W per channel into 4 ohms.
fig. 01 · integrated amplifiers
PA 2000 R Integrated amplifier
From T+A

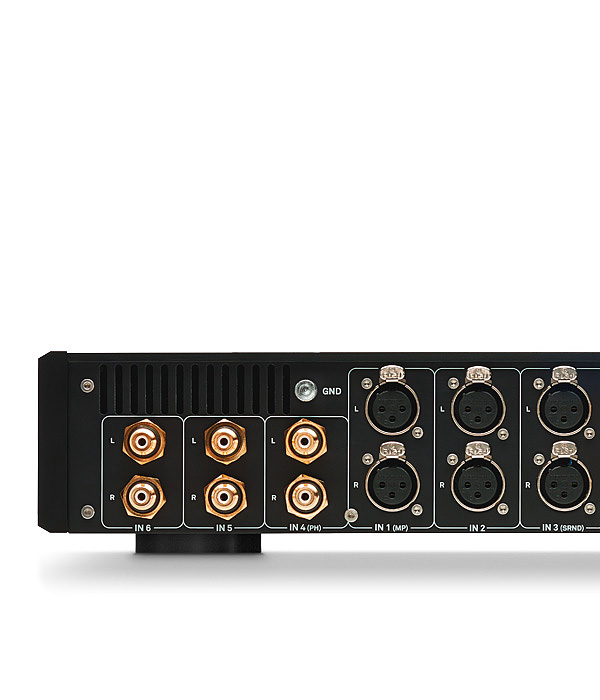

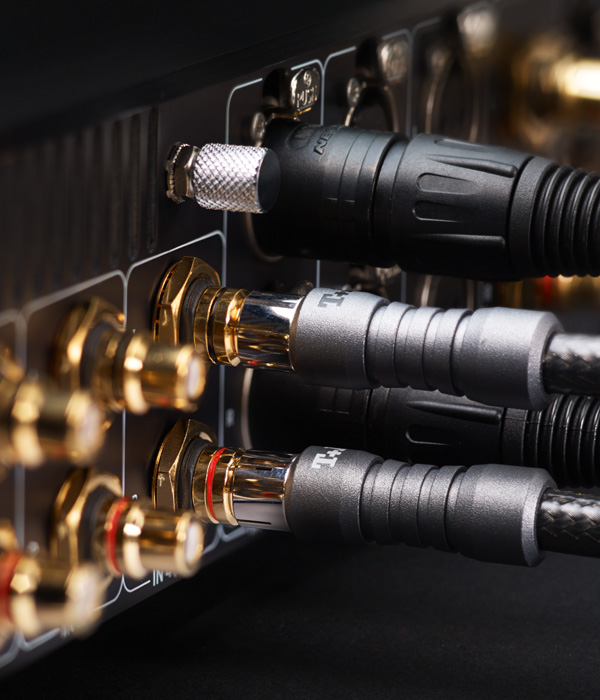

PA 2000 R is a compact R-series amplifier with more than 200 watts per channel into 4 ohms. Connections include RCA and XLR inputs, headphone and pre-out sockets, channel-separated tone controls, bypassable loudness, optional MM/MC phono modules, and Surround Pass Through mode.
Specifications
| Pre-amplifier stage: Frequency response + 0 / − 3 dB | 0,5 Hz – 300 kHz |
|---|---|
| Pre-amplifier stage: Signal:noise ratio, unweighted/A-weighted | 105/109 dB |
| Pre-amplifier stage: Total harmonic distortion/Intermodulation | < 0,001 % / < 0,001 % |
| Pre-amplifier stage: Channel separation | > 90 dB |
| Pre-amplifier stage: Loudness | Switchable, variable to suit loudspeaker efficiency |
| Pre-amplifier stage: Tone controlsBassTreble | Switchable, channel-separate−6 … +8 dB−6 … +8 dB |
| Pre-amplifier stage: High level (RCA) | 3 × 250 mV … 4 Veff/20 kOhms |
| Pre-amplifier stage: Balanced (XLR) | 3 × 500 mV … 8 Veff/5 kOhms |
| Pre-amplifier stage: Phono-MM (optional*)*Phono module replaces one high-level input | 1 – 5 mV,16 Capacitances |
| Pre-amplifier stage: Phono-MC (optional*)*Phono module replaces one high-level input | 60 – 1000 µV,16 Impedances |
| Outputs: Headphone | 50 Ohms |
| Outputs: PRE out RCA | Nom 1 Veff, Max 9,5 Veff, 75 Ohms |
| Output stage: Nominal output per channel | into 8 Ohms 100 Wattsinto 4 Ohms 200 Wattsinto 2 Ohms 300 Watts |
| Output stage: Frequency response + 0/– 3 dB | 1 Hz – 150 kHz |
| Output stage: Slew rate | 60 V/µs |
| Output stage: Damping factor | > 65 |
| Output stage: Total harmonic distortion | < 0,02 % |
| Output stage: Reservoir capacity | 60000 µF |
| Mains / Accessories / Dimensions: Control interface | R2-Link |
| Mains / Accessories / Dimensions: Remote control | SRC 1 |
| Mains / Accessories / Dimensions: Mains connection | 100 – 120 V oder 200 – 240 V, 50 – 60 HzMax. 1000 Watts |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Additional features | Trigger input +5V … 20V via adapter plug for remote power-onInput 3 (symmetrical) or 5 (asymmetrical) can be configured as Surround Pass Through |
| Mains / Accessories / Dimensions: Optional Accessories | PHE-P/PA R MM or MC phono content_default | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Speaker Hex (Carbon) |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 8,2 × 46 × 40 cm |
| Mains / Accessories / Dimensions: Weight | 10,5 kg |
| Mains / Accessories / Dimensions: Finishes | Silver anodised aluminium (43), black anodised aluminium (42), brushed |
| Power output | more than 200 Watts per channel into 4 Ohms |
| Phono cartridge support | MM / MC |
