PA 3100 HV Integrated amplifier
HV-series amplifier rated at 500 W per channel into 4 ohms.
fig. 01 · integrated amplifiers
PA 3100 HV Integrated amplifier
From T+A

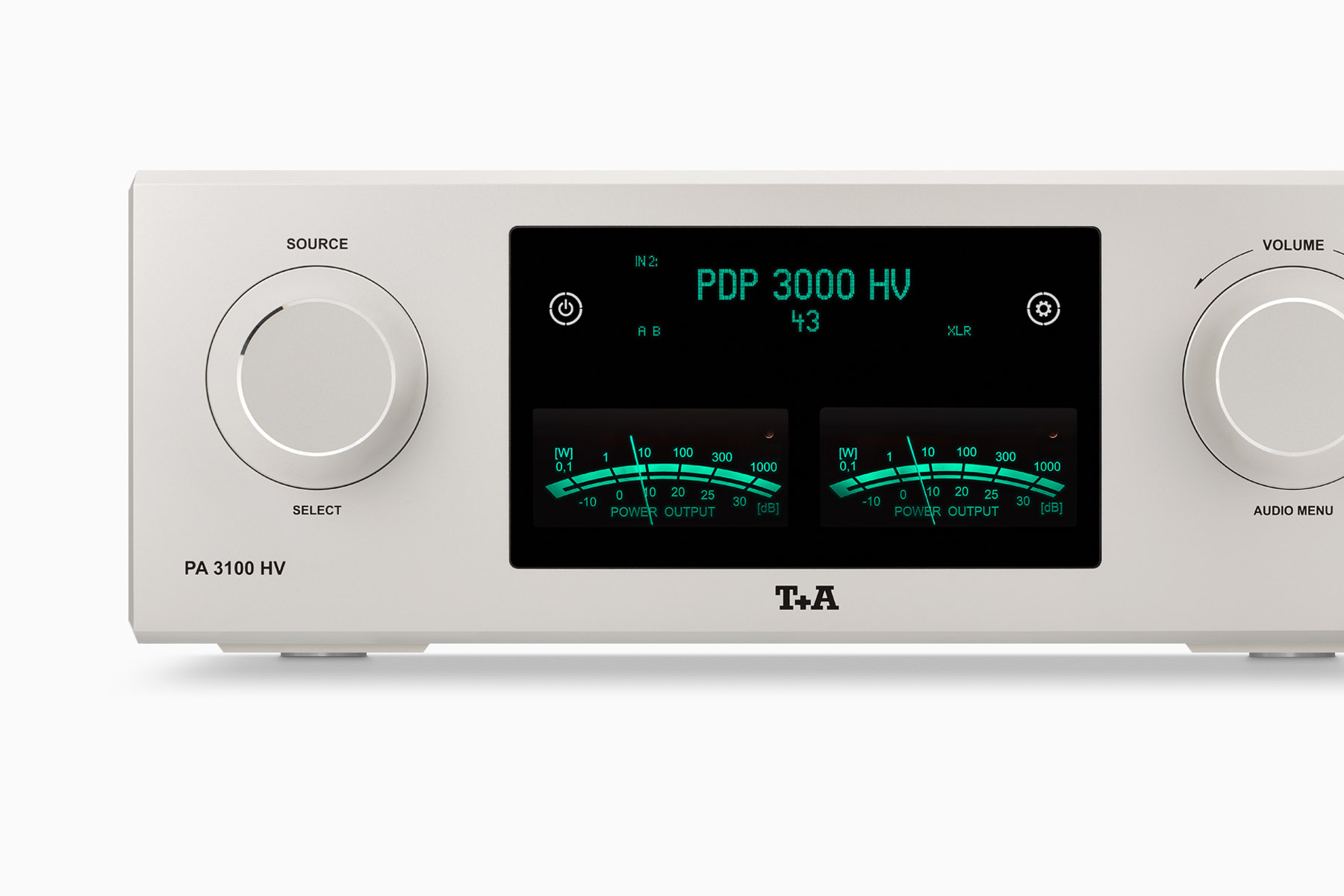

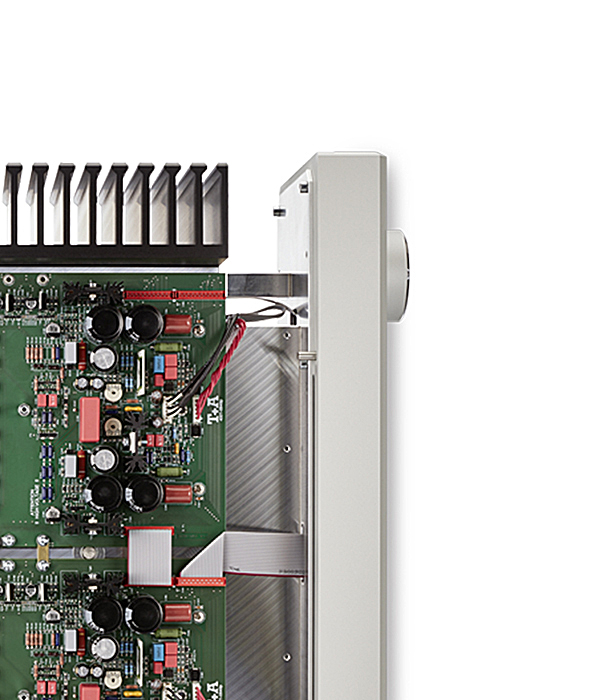

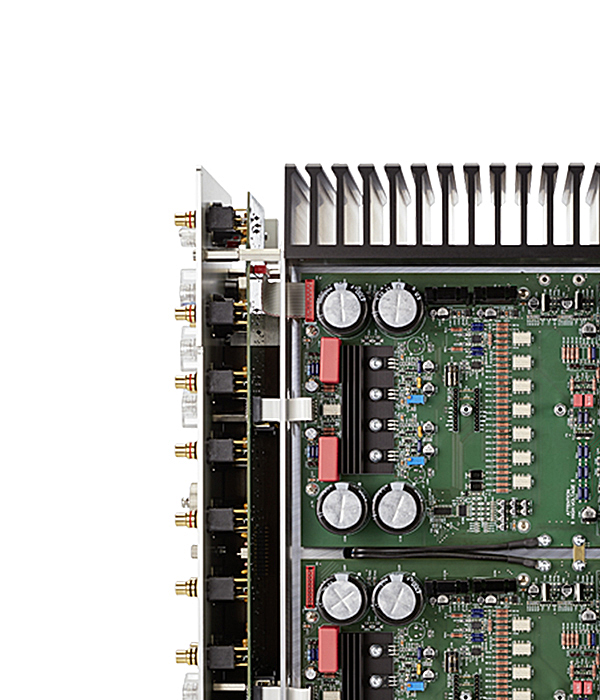

PA 3100 HV is an HV-series amplifier with front-panel VU meters, RCA and XLR inputs, headphone output, RCA and XLR pre-outs, and optional PH HV phono or APM signal-processor modules. Its output stage is rated at 300 watts per channel into 8 ohms and 500 watts into 4 ohms, with a PS 3000 HV power-supply connection and LAN control.
Specifications
| Pre-amplifier stage: Frequency response + 0 / – 3 dB | 0,5 Hz –300 kHz |
|---|---|
| Pre-amplifier stage: Signal / noise ratio | 105 / 110 dB |
| Pre-amplifier stage: Total harmonic distortion | < 0,001% |
| Pre-amplifier stage: Intermodulation | < 0,001 % |
| Pre-amplifier stage: Channel separation | > 90 dB |
| Pre-amplifier stage: Nominal input sensitivity High level (RCA) | 7 x 250 mVeff ... 3 Veff / 20 kOhms |
| Pre-amplifier stage: Nominal input sensitivity Balanced (XLR) | 4 x 500 mVeff ... 6 Veff / 20 kOhms |
| Outputs: Headphones | 50 Ohms |
| Outputs: 1 x Recorder | 250 mVeff / 100 Ohms |
| Outputs: PRE out RCA | nom 1 Veff, max 9,5 Veff / 50 Ohms |
| Outputs: PRE out XLR | nom 1,45 Veff, max 19,6 Veff / 50 Ohms |
| Output stage: RMS output per channel into 8 Ohms | 300 Watts |
| Output stage: RMS output per channel into 4 Ohms | 500 Watts |
| Output stage: Peak output into 8 Ohms | 380 Watts |
| Output stage: Peak output into 4 Ohms | 700 Watts |
| Output stage: Power bandwith | 1 Hz – 150 kHz |
| Output stage: Frequency response + 0 / – 3 dB | 0,5 Hz – 180 kHz |
| Output stage: Slew rate | 60 V/µs |
| Output stage: Damping factor | > 65 |
| Output stage: Signal / noise ratio | > 115 dB |
| Output stage: Total harmonic distortion | < 0,03 % |
| Output stage: Reservoir capacity | 120000 µF |
| Mains / Accessories / Dimensions: Mains | 110 V/60 Hz or 220/240 V/50 Hz |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Remote control | F 3001 |
| Mains / Accessories / Dimensions: Features | Trigger input +5 ... 20V for external switching-onInput 4 can be configured in surround mode(Surround pass-through)connectivity for additional PS 3000 HVLAN connector for home-automation systems |
| Mains / Accessories / Dimensions: Optional Accessories | PS 3000 HV Power Supply | PH HV MM oder MC phono module | APM signal processor module | Power Three HD (Carbon) | Power Bar | Audio Quad (Carbon) | Speaker Hex (Carbon) HV-Individual finish (Individual colours on request)| IP control |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 17 x 46 x 46 cm |
| Mains / Accessories / Dimensions: Weight | 38 kg |
| Mains / Accessories / Dimensions: Finishes | Case: silver laquer 47 or titanium laquer 64Heat sink: black 42 |
| Supply power | extra 1800 Watts of supply power |
