T+A · CD & SACD Players
PDT 3100 HV Reference CD SACD Transport
HV-series CD/SACD transport with AES-EBU digital output.
fig. 01 · cd & sacd players
PDT 3100 HV Reference CD SACD Transport
From T+A

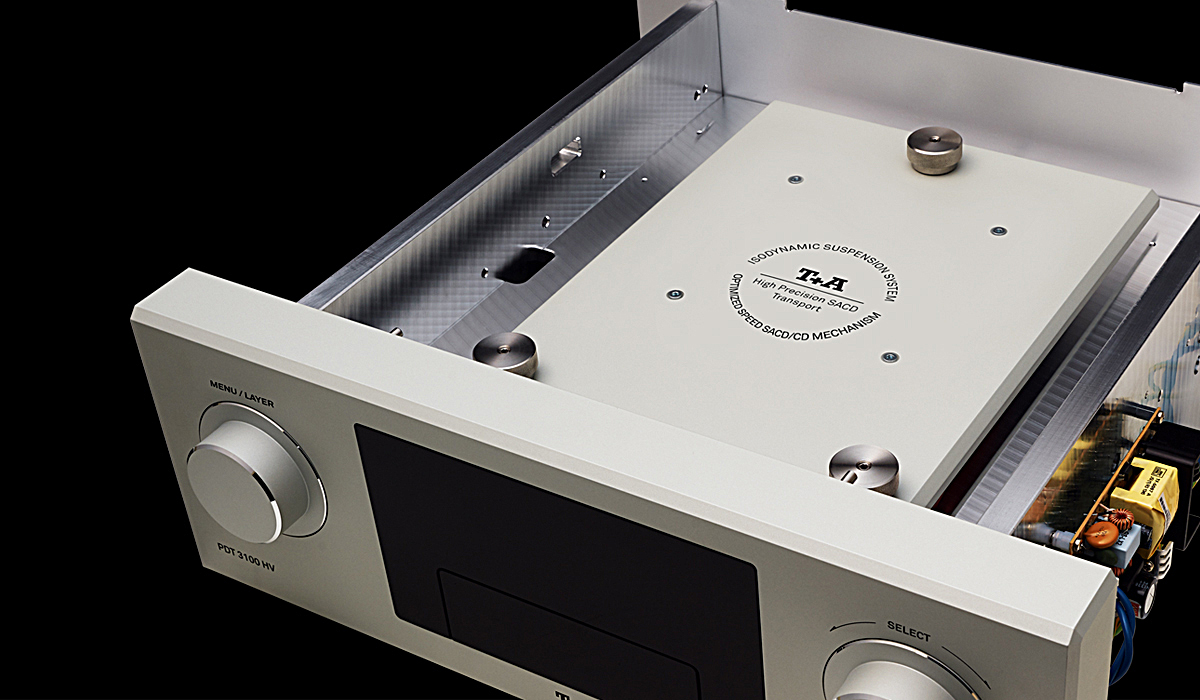

PDT 3100 HV is an HV-series CD/SACD transport built around a high-precision linear tracking drive. It reads CD, CD-R, CD/RW, SACD Stereo, and SACD/CD Text, with AES-EBU digital output, F 3100 remote, CD stabilizer, IPA-Bus cable, 17 x 46 x 46 cm chassis, and 29 kg weight.
Specifications
| Mechanism: Principle | High precision linear tracking driveDouble-Lasersystem:SACD: 650 nmCD: 785 nmDouble-GaAlAs-Lasersystem |
|---|---|
| Mechanism: Formats | CD, CD-R, CD/RW, SACD Stereo, SACD/CD Text |
| Mechanism: Frequency range and dynamics | CD: 2 Hz – 20 kHz / 100 dBSACD: 2 Hz – 44 kHz / 110 dB |

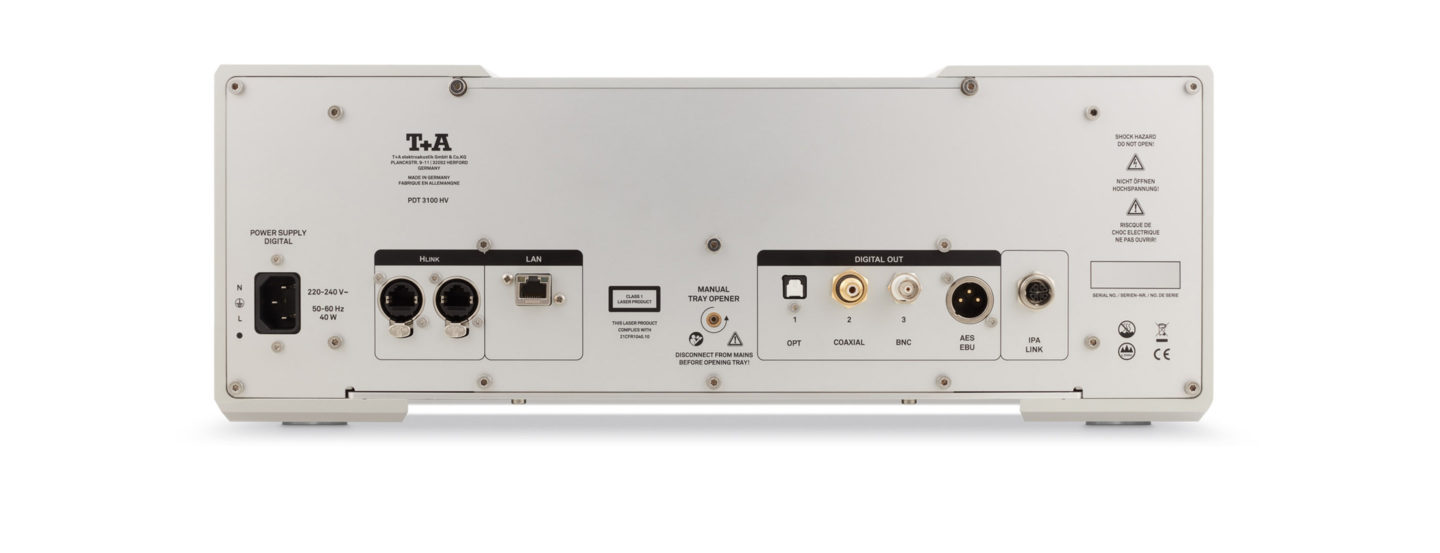

| Connections: Digital outputs AES | 1 x AES-EBU 32...192 kHz / 16-24 Bit |
| Mains / Accessories / Dimensions: Mains | 110-120 V oder 220-240 V, 50-60 Hz, 40 W |
| Mains / Accessories / Dimensions: Power consumption in operation | 40 Watts |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Accessories | Power cordRemote control F 3100CD stabilizerIPA-Bus Kabel |
| Mains / Accessories / Dimensions: Optional Accessories | Power Three HD (Carbon) | Power Bar | Audio Triax (Carbon) | HV-Individual finish (Individual colours on request) |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) | 17 x 46 x 46 cm |
| Mains / Accessories / Dimensions: Weight | 29 kg |
| Mains / Accessories / Dimensions: Finishes | Case: silver laquer 47 or titanium laquer 64 |
| Disc format support | SACD | CD |
