PSD 3100 HV Pre-amplifier-Streaming DAC
HV-series preamp/streaming DAC with digital inputs and radio.
fig. 01 · preamplifiers
PSD 3100 HV Pre-amplifier-Streaming DAC
6 photographs · 5 shown
From T+A

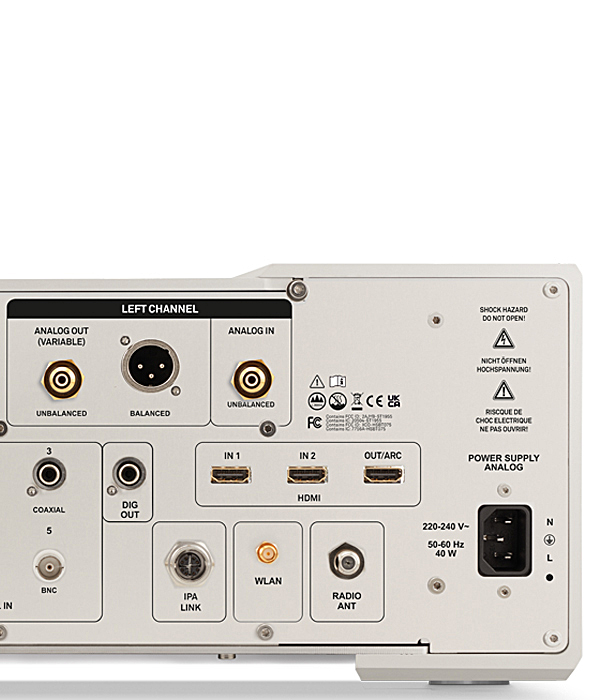

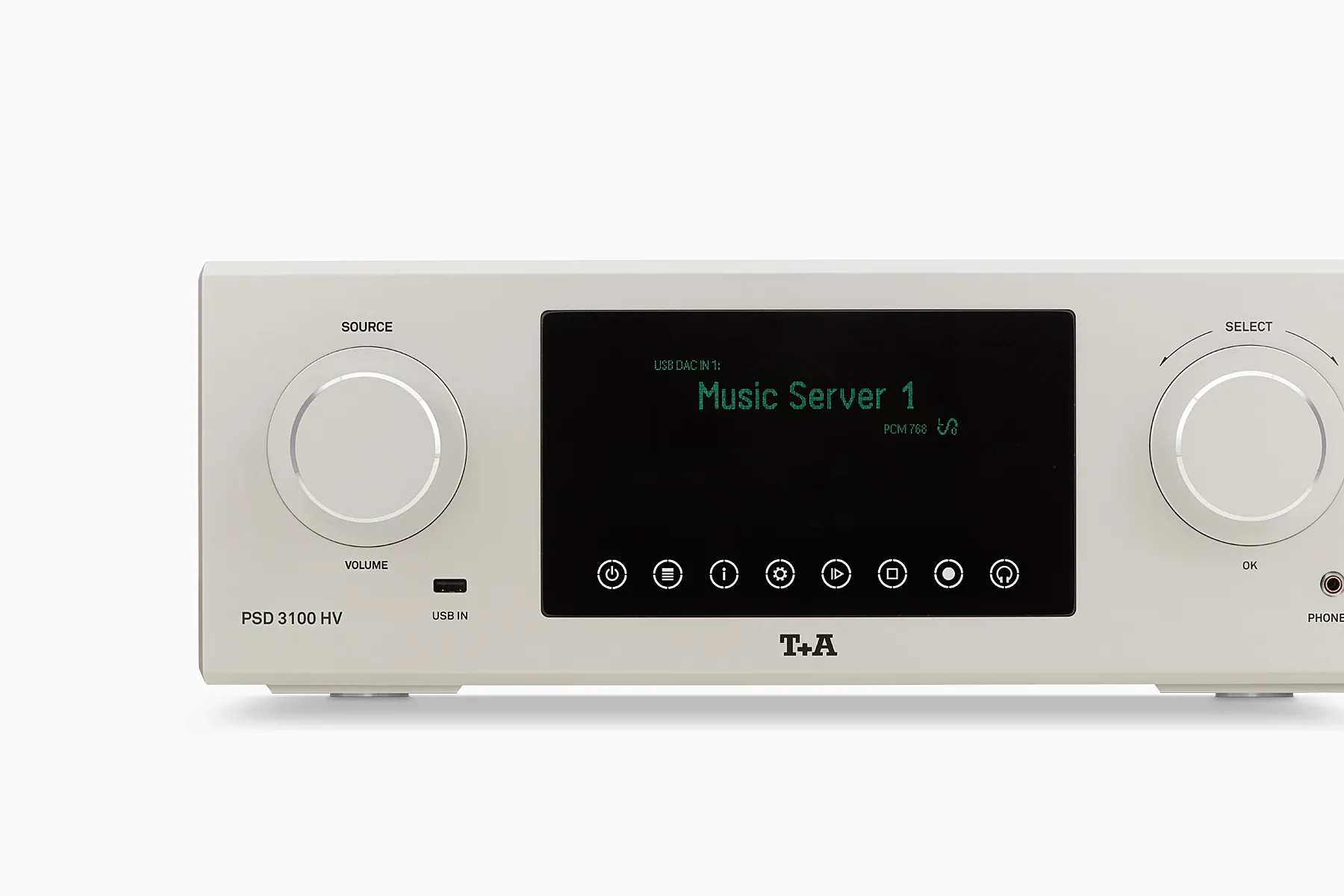

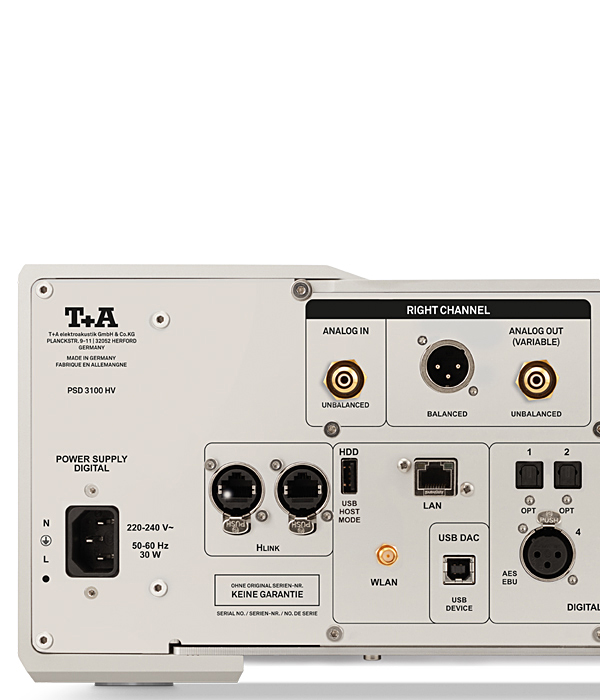

PSD 3100 HV combines HV-series preamp, streaming DAC, FM/FM-HD, DAB/DAB+, Internet radio, Bluetooth, USB, HDMI ARC, and digital input functions. It has RCA and XLR analogue outputs, 4.4 mm headphone output, PCM support up to 768 kSps, DSD support up to DSD 512, and a 17 x 46 x 46 cm chassis.
Specifications
| Pre-Amplifier: Frequency response +0 /-3dB | 0,5 Hz - 300 kHz |
|---|---|
| Pre-Amplifier: Signal / noise ratio | 108 / 112 dB |
| Pre-Amplifier: THD | Intermodulation | Channel separation | < 0,001 % | < 0,001 % | > 108 dB |
| Pre-Amplifier: Nominal input sensitivityHigh level (RCA) | 250 mVeff ... 9 Veff / 20 kOhm | 500 mVeff ...18 Veff / 40 kOhm |
| Pre-Amplifier: Analogue output RCA | XLR | nom 1 Veff, max 9,5 Veff / 20 Ohm | nom 1,45 Veff, max 19,6 Veff / 40 Ohm |
| Headphone output: Headphone output | 4,4 mm Pentaconn (6 Ohms) |
| Connections: Digital inputs | 1 x AES-EBU 32...192 kHz / 16-24 Bit4 x S/P-DIF: 1 x Standard Coax1 x high quality BNC 32...192 kHz / 16-24 Bit,2 x optical TOS-Link 32...192 kHz / 16-24 Bit1 x USB DAC: Device-Mode with max. 768 kSps (PCM) und DSD 512*,supports asynchronous data transfer.*DSD512 with Windows PC with appropriate driver installed or Linux PC with 4.4 Kernel or higher only.2 x USB Master-Mode for USB-Mass storage (Stick or HDD)2 x HDMI IN, 1 x HDMI OUT with ARC1 x IPA (LVDS) |
| D/A-Converter: PCM | Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel. 705,6 / 768 kSps conversion rate |
| D/A-Converter: DSD | T+A-True-1Bit DSD D/A-Converter, up tp DSD 512 (24,5 MHz), native bitstream |
| D/A-Converter: Upsampling (PCM) | T+A-Signalprocessor – synchronous upsamplingwith 4 selectable oversampling algorithmsFIR short, FIR long, Bezier/IIR, Bezier |
| D/A-Converter: Analogue filter | Phase-linear Bessel filter 3rd order, switchablewith 60 or 120 kHz cut off frequency |
| D/A-Converter: Frequency response | PCM 44.1 kSps: 2 Hz - 20 kHzPCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHzPCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHzPCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHzPCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHzPCM 768 kSps: 2 Hz - 120 kHz |
| D/A-Converter: THD | < 0.001 % |
| D/A-Converter: S/N ratio | > 117 dB |
| D/A-Converter: Channel separation | > 110 dB |
| Streaming Client: Streaming Client | Streaming client module 3rd generation with Quad Core processor |
| Tuner: Internet Radio | Airable Internet Radio Service (> 11000 Stationen weltweit) |
| Tuner: FM, FM-HD | 87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA |
| Tuner: DAB, DAB+ | 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA |
| Tuner: Features | RDS/RDBS, Stationname (PS), Programm type (PTY), Radiotext (RT) |
| Bluetooth: Bluetooth Standard / Codec | A2DP (Audio), AVRCP 1.4 (Control) / aptX® HD, SBC, AAC |
| Mains / Accessories / Dimensions: Mains | 2 x 110-120 V or 220-240 V, 50-60 Hz.Operation: 30 W digital / 40 W analogue, Standby: < 0,5 W |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) / Weight | 17 x 46 x 46 cm / 26 kg |
| Mains / Accessories / Dimensions: Accessories | 2x power cord, remote control F 3100, BNC adapter |
| Mains / Accessories / Dimensions: Finishes | silver laquer 47 or titanium laquer 64 |
| Streaming / radio support | Bluetooth |
