Pulsar S 130
3-way floor-standing speaker with bass reflex loading.

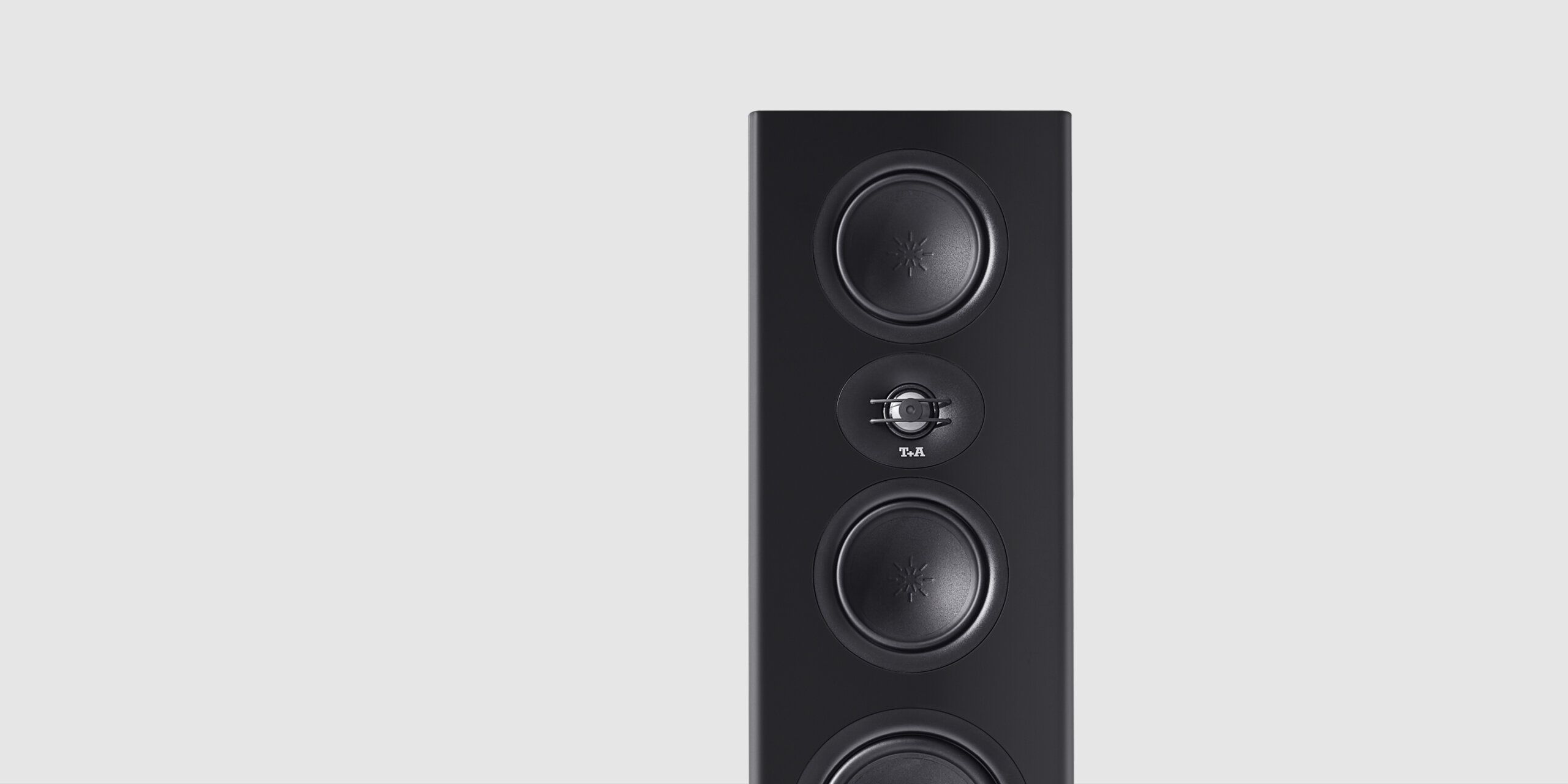

fig. 01 · floor-standing speakers
Pulsar S 130
From T+A
Pulsar S 130 is a compact floor-standing speaker with a 3-way bass reflex design, 4 ohm impedance, and a 32 Hz to 45 kHz frequency range. Its saved specs list 2 150 mm bass drivers, 2 115 mm midrange drivers, a 25 mm high-frequency driver, and a 100 x 27 x 37 cm cabinet including base and spikes.
Specifications
| Principle: Floor-standing speaker | 3-way, bass reflex |
|---|---|
| Power rating: Nominal power rating | 150 Watts |
| Power rating: Music power rating | 180 Watts |
| Power rating: Impedance | 4 Ohms |
| Power rating: Frequency range | 32 - 45000 Hz |
| Power rating: Sensitivity | 86 dB |
| Drive units: Drive units bass | 2 x 150 mm |
| Drive units: Drive units midrange | 2 x 115 mm |
| Drive units: Drive units highrange | 1 x 25 mm |
| Drive units: Crossover frequencies | 225 / 2200 Hz |
| Dimensions: Dimensions H x W x D | 100 x 27 x 37 cm incl. base and spikes |
| Dimensions: Weight | 22,5 kg |
| Dimensions: Finishes | Rubbed lacquer black 12Rubbed lacquer white 11 |
| Product type | floor-standing speaker |
| Speaker type | floor-standing |
