SD 3100 HV Reference Streaming DAC
HV-series streaming DAC with PCM 768 kSps and DSD 1024 support.
fig. 01 · music servers & streamers

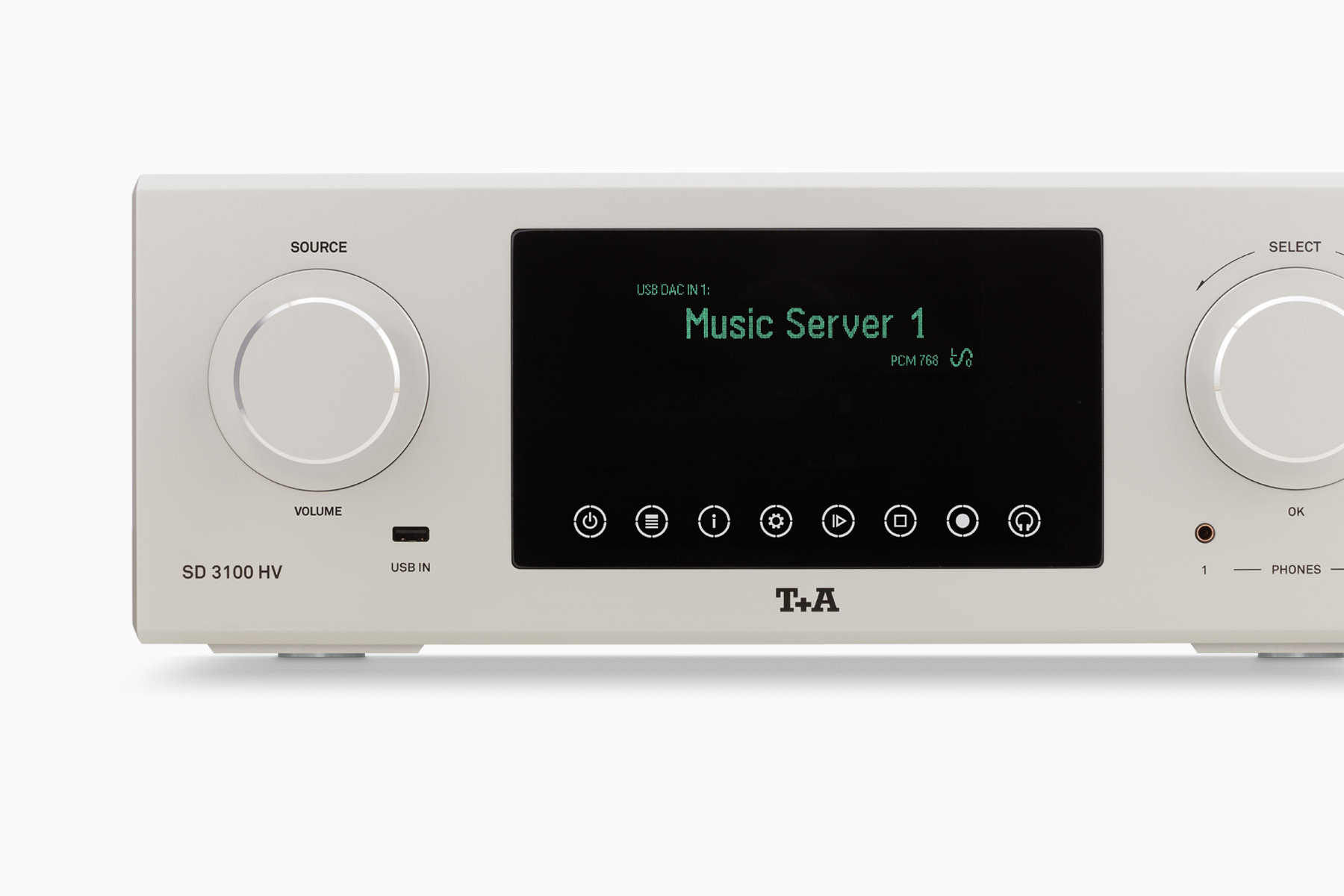

SD 3100 HV Reference Streaming DAC
From T+A

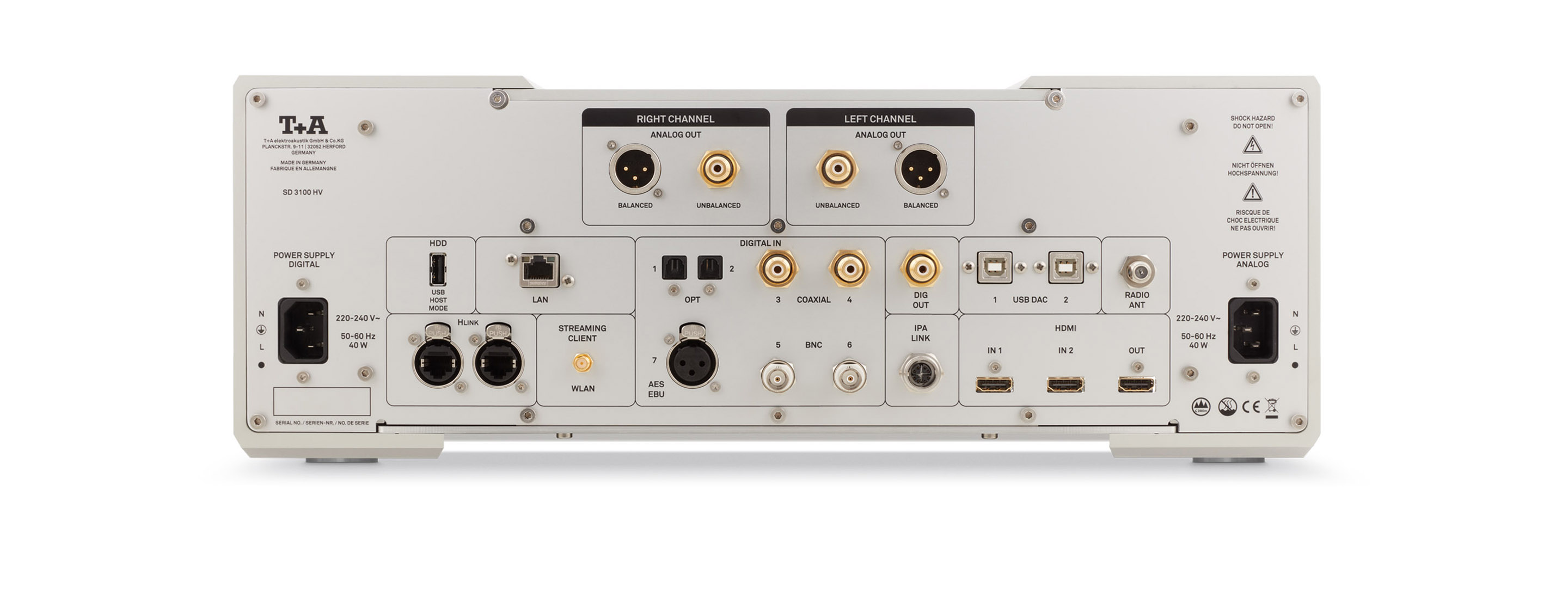

SD 3100 HV is an HV-series streaming DAC with RCA and balanced XLR analogue outputs, 6.3 mm and 4.4 mm headphone outputs, AES-EBU, S/P-DIF, USB DAC, USB master, HDMI ARC, IPA, LAN, and WLAN connections. Its converter section supports PCM up to 768 kSps and DSD up to DSD 1024.
Specifications
| Analogue output: Coaxial (RCA) | Balanced (XLR) | 2,5 Veff / 20 Ohm | 5,0 Veff / 40 Ohm |
|---|---|
| Headphone output: Headphone output | 6,3 mm Klinke (20 Ohm) and 4,4 mm Pentaconn (8 Ohm) |
| Connections: Digital output | 1x coax, IEC 60958 S/P-DIF (LPCM) |
| Connections: Digital inputs | 1 x AES-EBU 32...192 kHz / 16-24 Bit6 x S/P-DIF:2 x Standard Coax2 x high quality BNC 32...192 kHz / 16-24 Bit,2 x optical TOS-Link 32...192 kHz / 16-24 Bit2 x USB DAC:Device-Mode with max. 768 kSps (PCM) und DSD 1024*,supports asynchronous data transfer.*DSD512 und DSD 1024 with Windows PC with appropriate driver installed or Linux PC with 4.4 Kernel or higher only.2 x USB Master-Mode for USB-Mass storage (Stick or HDD)2 x HDMI IN, 1 x HDMI OUT with ARC1 x IPA (LVDS) |
| Connections: Network connection | LAN: Fast Ethernet 10/100/1000 Base-T,WLAN: 802.11 b/g/n |
| D/A-Converter: PCM | Double-Differential-Quadruple-Converter with four 32-Bit Sigma-Delta D/A-Converter per channel. 705,6 / 768 kSps conversion rate |
| D/A-Converter: DSD | T+A-True-1Bit DSD D/A-Converter, up tp DSD 1024 (49,2 MHz), native bitstream |
| D/A-Converter: Upsampling (PCM) | T+A-Signalprocessor – synchronous upsamplingwith 4 selectable oversampling algorithmsFIR short, FIR long, Bezier/IIR, Bezier |
| D/A-Converter: Analogue filter | Phase-linear Bessel filter 3rd order, switchablewith 60 or 120 kHz cut off frequency |
| D/A-Converter: Frequency response | PCM 44.1 kSps: 2 Hz - 20 kHzPCM 48 kSps: 2 Hz - 22 kHz / DSD 64: 2 Hz - 44 kHzPCM 96 kSps: 2 Hz - 40 kHz / DSD 128: 2 Hz - 60 kHzPCM 192 kSps: 2 Hz - 80 kHz / DSD 256: 2 Hz - 80 kHzPCM 384 kSps: 2 Hz - 100 kHz / DSD 512: 2 Hz - 100 kHzPCM 768 kSps: 2 Hz - 120 kHz / DSD 1024: 2 Hz - 120 kHz |
| D/A-Converter: THD | < 0.001 % |
| D/A-Converter: S/N ratio | > 117 dB |
| D/A-Converter: Channel separation | > 110 dB |
| Streaming Client: Formats / Standards | MP3, WMA, AAC, OGG Vorbis, FLAC, WAV, AIFF, ALAC / UPnP AV, T+A Control |
| Streaming Client: Data rates | PCM 32...192 kHz,16/24 Bit; MP3 bis 320 kBit,variable and constant bit rate |
| Streaming Client: Music services | Tidal, Deezer, qobuz (Subscription required) |
| Streaming Client: Features | Gapless Playback for MP3 (Lame), WAV, FLACT+A MusicNavigator App for iOS und Android |
| Tuner: Internet Radio | Airable Internet Radio Service (> 11000 Stations worldwide) |
| Tuner: FM, FM-HD | 87,5 - 108 MHz; sensitivity 1 µV; S/N > 65 dBA |
| Tuner: DAB, DAB+ | 168 -240 MHz (Band III); sensitivity 2,0 µV, S/N > 96 dBA |
| Tuner: Features | RDS/RDBS, Stationname (PS), Programm type (PTY), Radiotext (RT) |
| Bluetooth: Bluetooth Standard / Codec | A2DP (Audio), AVRCP 1.4 (Control) / aptX®, MP3, SBC |
| Mains / Accessories / Dimensions: Mains | 2 x 110-120 V or 220-240 V, 50-60 HzOperation: 2 x 40 W |
| Mains / Accessories / Dimensions: Standby | < 0,5 W |
| Mains / Accessories / Dimensions: Dimensions (H x W x D) / Weight | 17 x 46 x 46 cm / 26 kg |
| Mains / Accessories / Dimensions: Accessories | 2x power cord, remote control F 3100, BNC adapter |
| Mains / Accessories / Dimensions: Optional accessories | Power Three HD (Carbon) | Power Bar | HV-Individual finish (Individual colours on request) |
| Mains / Accessories / Dimensions: Finishes | silver laquer 47 or titanium laquer 64 |
