Unico 150
Unico 150 is a higher-power hybrid amplifier with ECC83 and 6H30 valves, 8 Hexfet output devices, XLR inputs, and bi-wiring terminals.
fig. 01 · integrated amplifiers

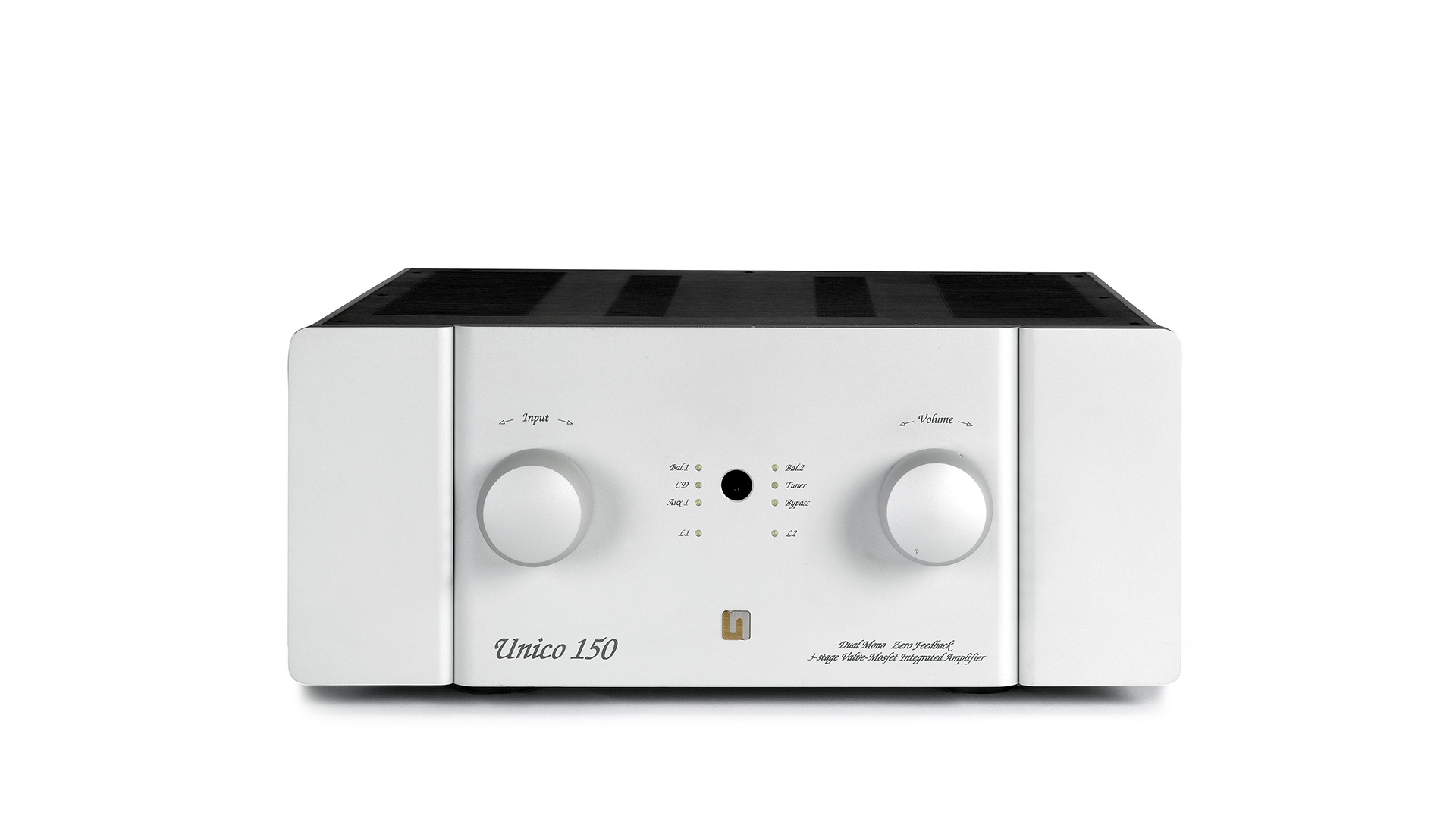

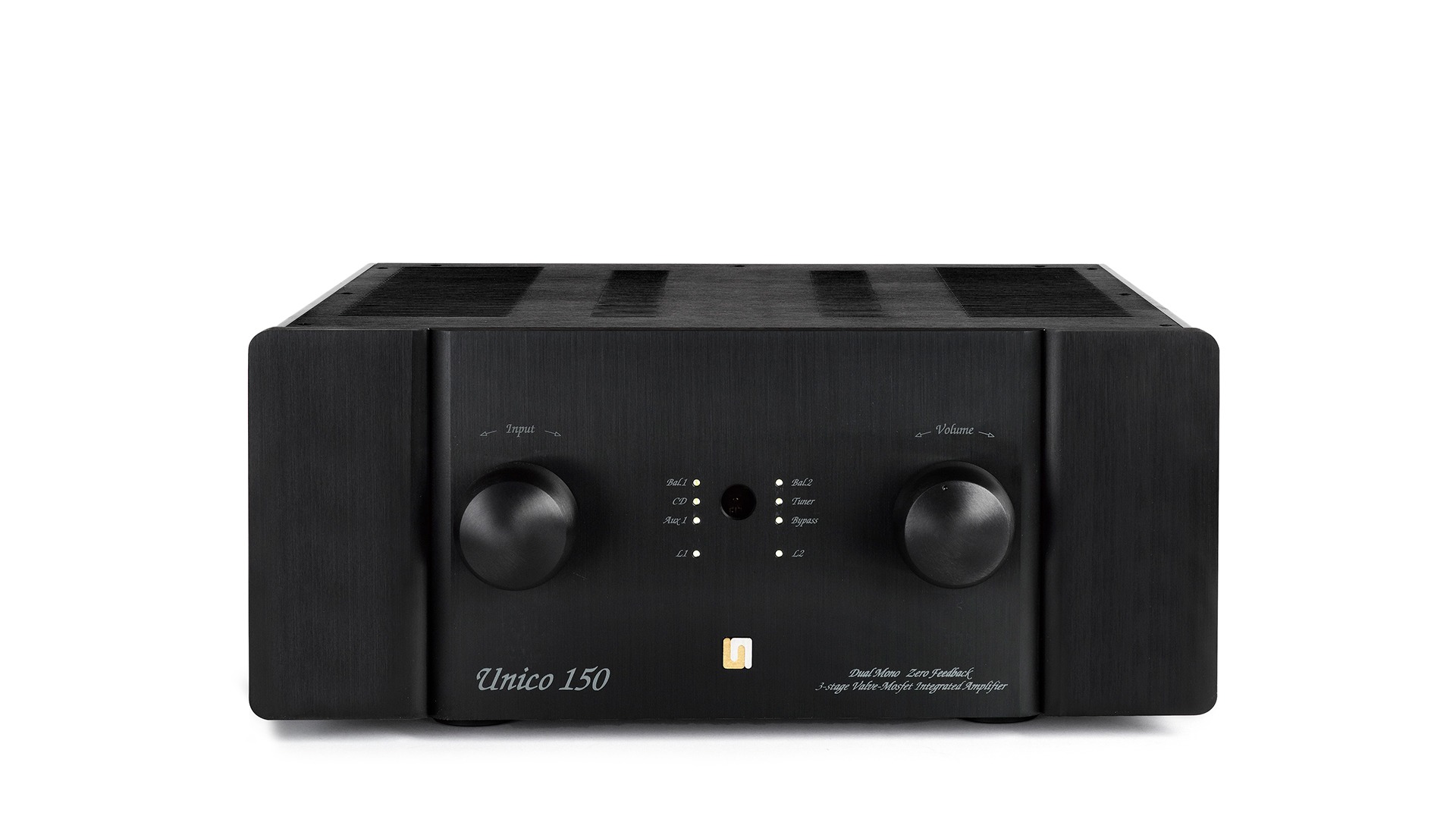

Unico 150
From Unison Research

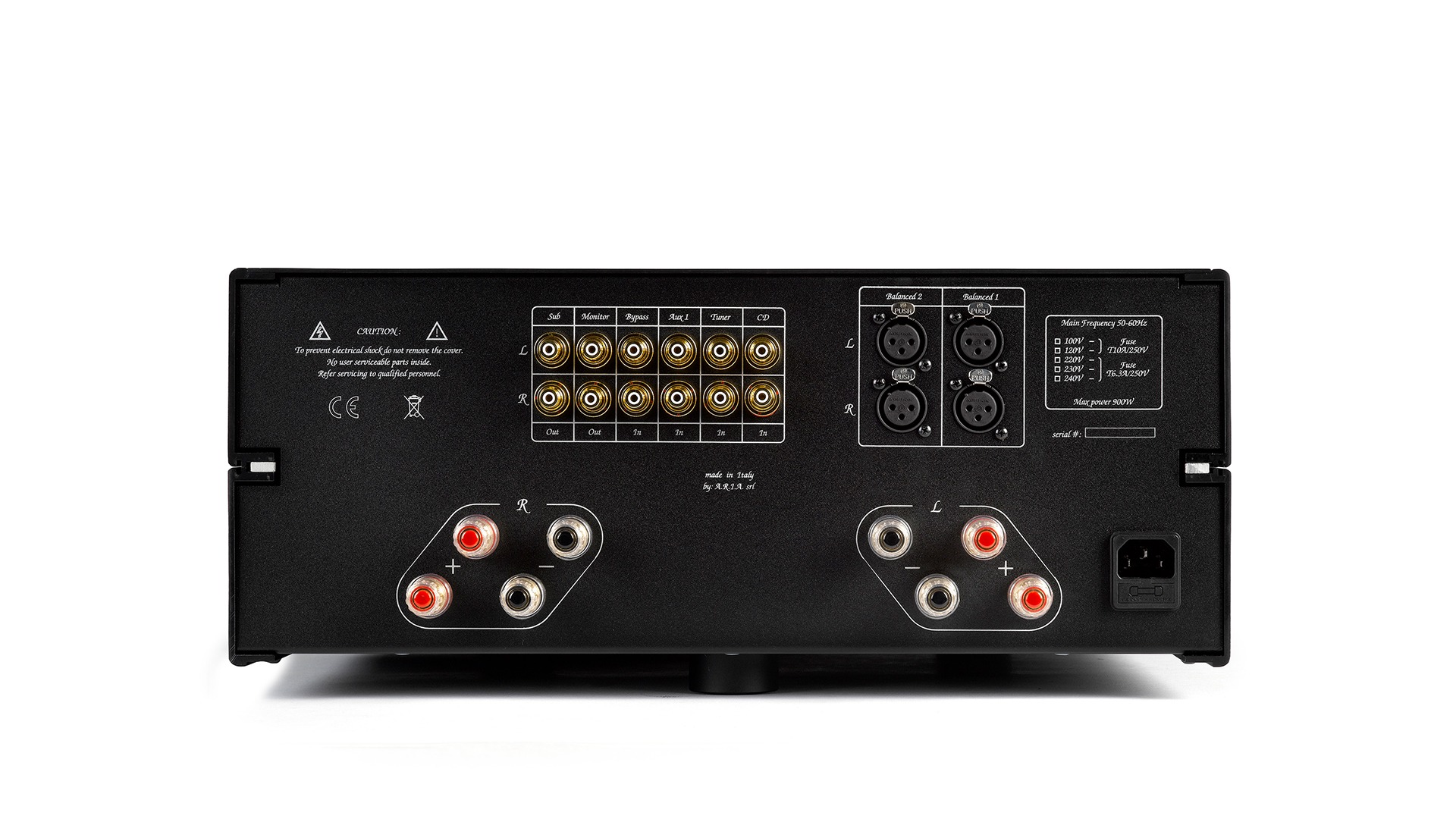

Unico 150 extends the Unico hybrid design with 2 ECC83 valves, 2 6H30 valves, and an 8-device Hexfet output stage. It has 3 unbalanced inputs, 2 balanced inputs, a bypass input, tape and subwoofer outputs, bi-wiring terminals, and a wide 6 Hz to 80 kHz response window.
Specifications
| Output power | 150+150 W on 8Ω / 250+250 W on 4Ω |
|---|---|
| Valves | 2X ECC83 2X 6H30 |
| Output stage | Class AB thermostable, 8X Hexfet |
| Input stage | Pure A class, double triode totem pole ECC83 |
| Inputs | 6 line (3 unbalanced, 2 balanced, 1 "bypass" unbalanced) |
| Line outputs | 1 tape, 1 sub (volume controlled) |
| Frequency response | -1dB @ 12Hz & 45kHz, -3 dB @ 6Hz & 80 kHz |
| Input impedance | 24kΩ // 100pF |
| Input sensitivity | 860mV RMS |
| Output connectors | 4 + 4 bi-wiring |
| Global feedback factor | 0 dB |
| Local feedback factor | 16 dB |
| THD | < 0.005% @ 1kHz, 1 W < 0.002% @ 1kHz, 10 W < 0.003% @ 1kHz, 100 W < 0.002% da 20 a 20000 Hz, 150 W |
| Output resistance | <0.4Ω, resistive on all audio frequencies |
| Power consumption | 550 W (at max power on 8 ohm) |
| Dimensions | 43.5 cm x 18 cm x 44 cm |
| Weight | 25 kg |
| Product type | hybrid integrated amplifier |
| Series | Unico |
