Unison Research · CD & SACD Players
Unico CD Uno
Unico CD Uno combines a CD transport, ESS Sabre DAC, ECC82 valve output stage, USB input, Toslink input, and Bluetooth playback.
fig. 01 · cd & sacd players
Unico CD Uno
From Unison Research

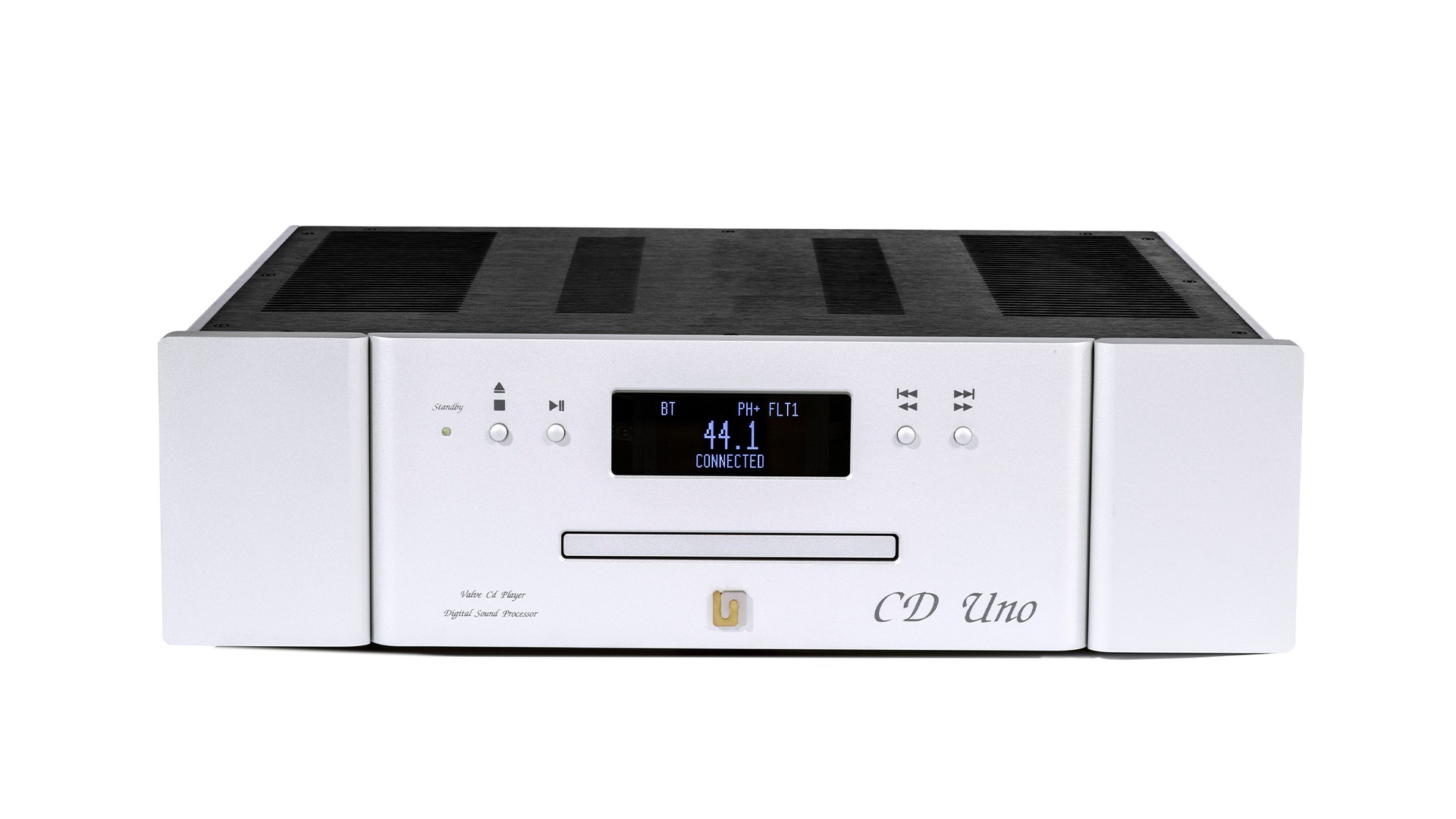

Unico CD Uno is a CD player and DAC built around an ESS Sabre ES9018K2M converter and an ECC82 valve audio stage. It accepts USB, Toslink, and Bluetooth sources, supports high-resolution PCM and DSD over USB, and includes S/PDIF digital output for system flexibility.
Specifications
| Valves | 1 x ECC82 |
|---|---|
| Digital inputs | 1 x USB 2.0: 44.1 - 384 kHz , DSD128, DSD256 Ready Res: 16 to 32 bits |
| 1 x Toslink™ | 44.1 - 96 Res.: 16 to 24 bits |
| 1 x Bluetooth™ 3.0 | 44.1, 48kHz Res: 16 bits |
| Digital output | 1x S/PDIF 0.5Vpp on 75 Ohms |
| Transport | CD-Loader |
| Display | White graphic OLED 128 X 64 |
| DAC | ESS Sabre ES9018K2M SNR: 125dB (0dBFS, 1kHz, 192kHz, "A" weighted ) |
| THD+N | 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ) |
| I/V converter | NE5532AD very low noise |
| Filters | 3 Digital Filters selectable by R.C. FLT 1: Fast Roll-Off, linear Phase |
| Filter 2 | Fast Roll-Off, minimum Phase |
| Filter 3 | Slow Roll-Off, linear Phase |
| Dimensions | 45cm x 38cm x H 13cm |
| Weight | 10Kg / 22lb |
| Product type | CD player and DAC |
| Series | Unico |
