Unison Research · Power Amplifiers
Unico DM v2
Unico DM v2 is a hybrid dual-mono power amplifier with ECC82 input valves, MOSFET output stages, and stereo or bridged mono operation.
fig. 01 · power amplifiers

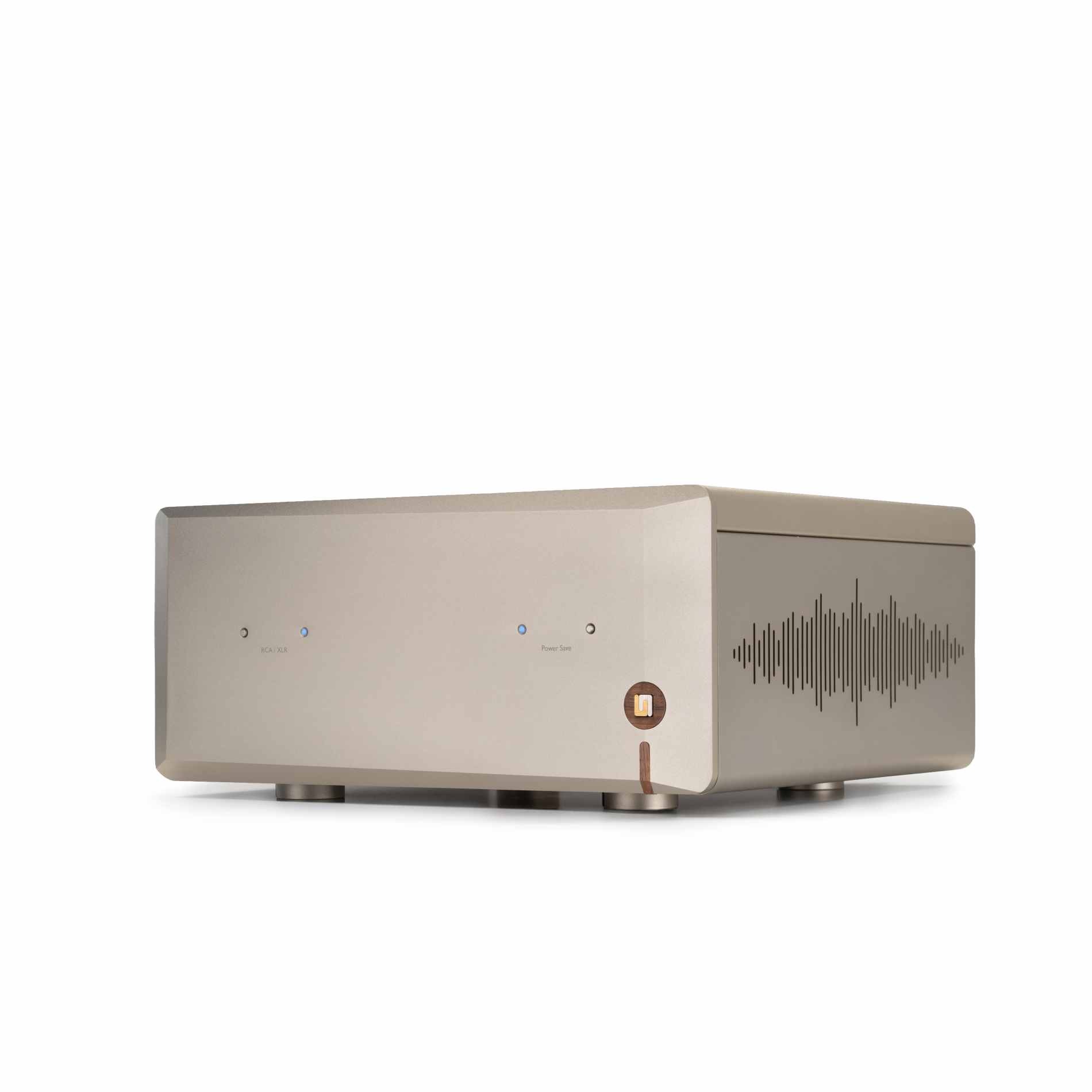

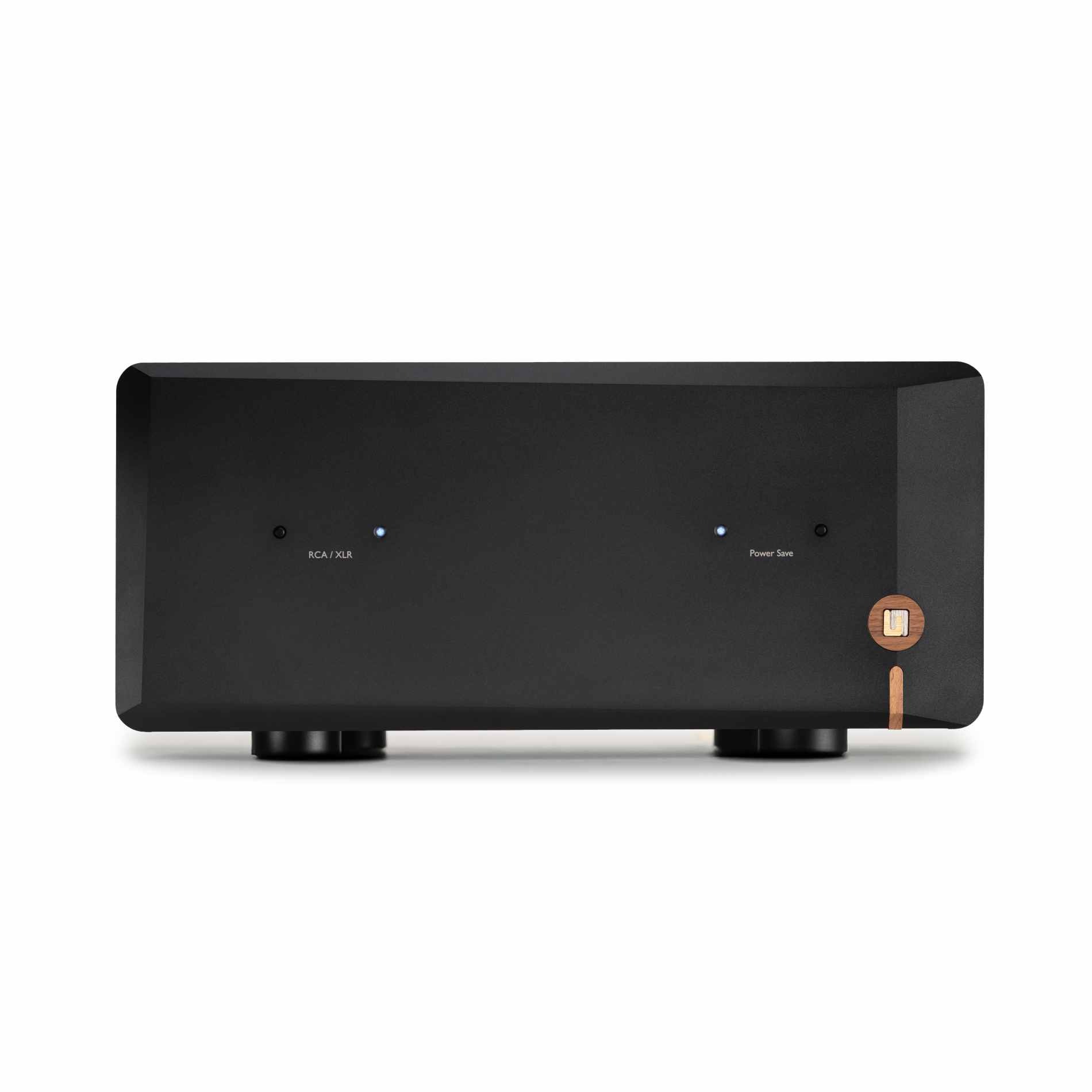

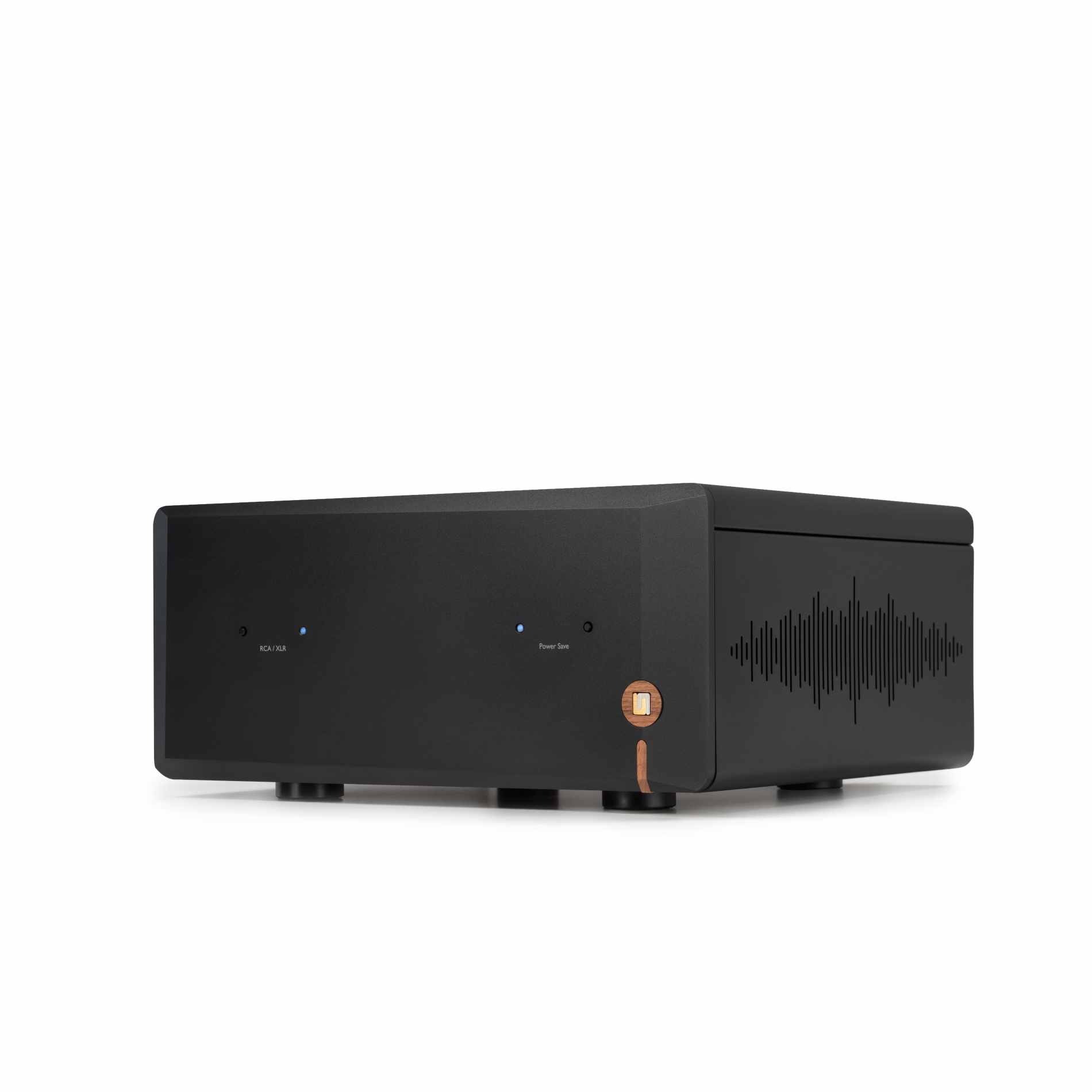

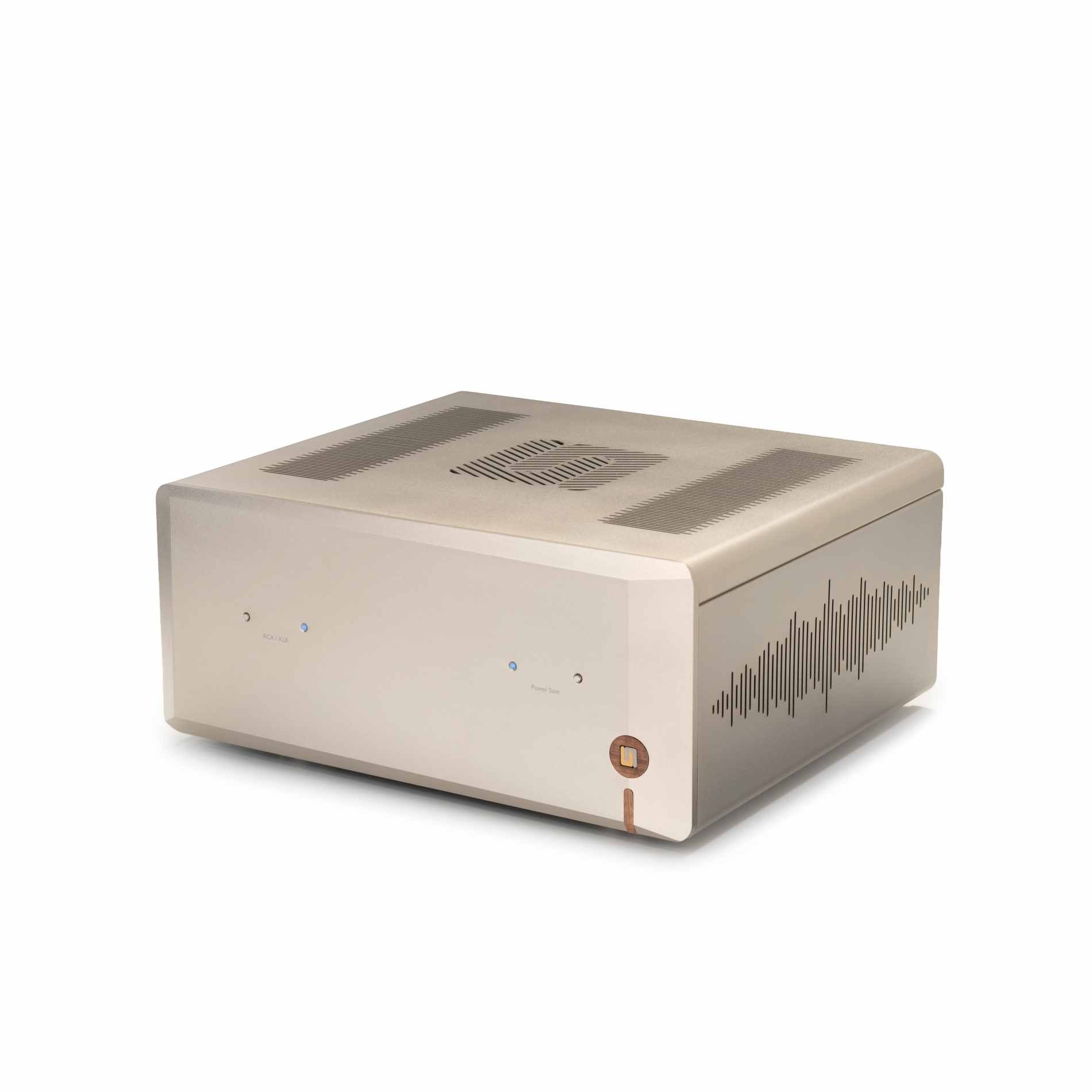

Unico DM v2
8 photographs · 5 shown
From Unison Research
Unico DM v2 anchors the current Unico line with separate channel power supplies, a Class A valve input stage, and a high-current MOSFET output section. It can run as a stereo amplifier or in bridged mono mode, with RCA and XLR inputs plus bi-wiring speaker outputs for larger systems.
Specifications
| Output power | 220 W continuous @ 8 Ω (stereo); 340 W continuous @ 4 Ω (stereo); 370 W continuous @ 2 Ω (stereo, limited by protections); 670 W peak @ 2 Ω (stereo); 650 W continuous @ 8 Ω (mono); 650 W continuous @ 4 Ω (mono) |
|---|---|
| Input stage | Pure Class A; Dual-triode stage (ECC82 / 12AU7) Gold Lion |
| Output stage | A.S.H.A. Technology; Class A-AB; Three complementary MOSFET pairs |
| Inputs | 1 x unbalanced RCA; 1 x balanced XLR; 1 x remote power-on input; Output connectors; 4 + 4 binding posts for bi-wiring; 1 x remote power-on output |
| Dimensions (WxDxH) | 46 x 42 x 21 cm 18 x 17 x 8 inches |
| Weight | 33 kg |
| Product type | hybrid dual-mono power amplifier |
| Series | Unico |
