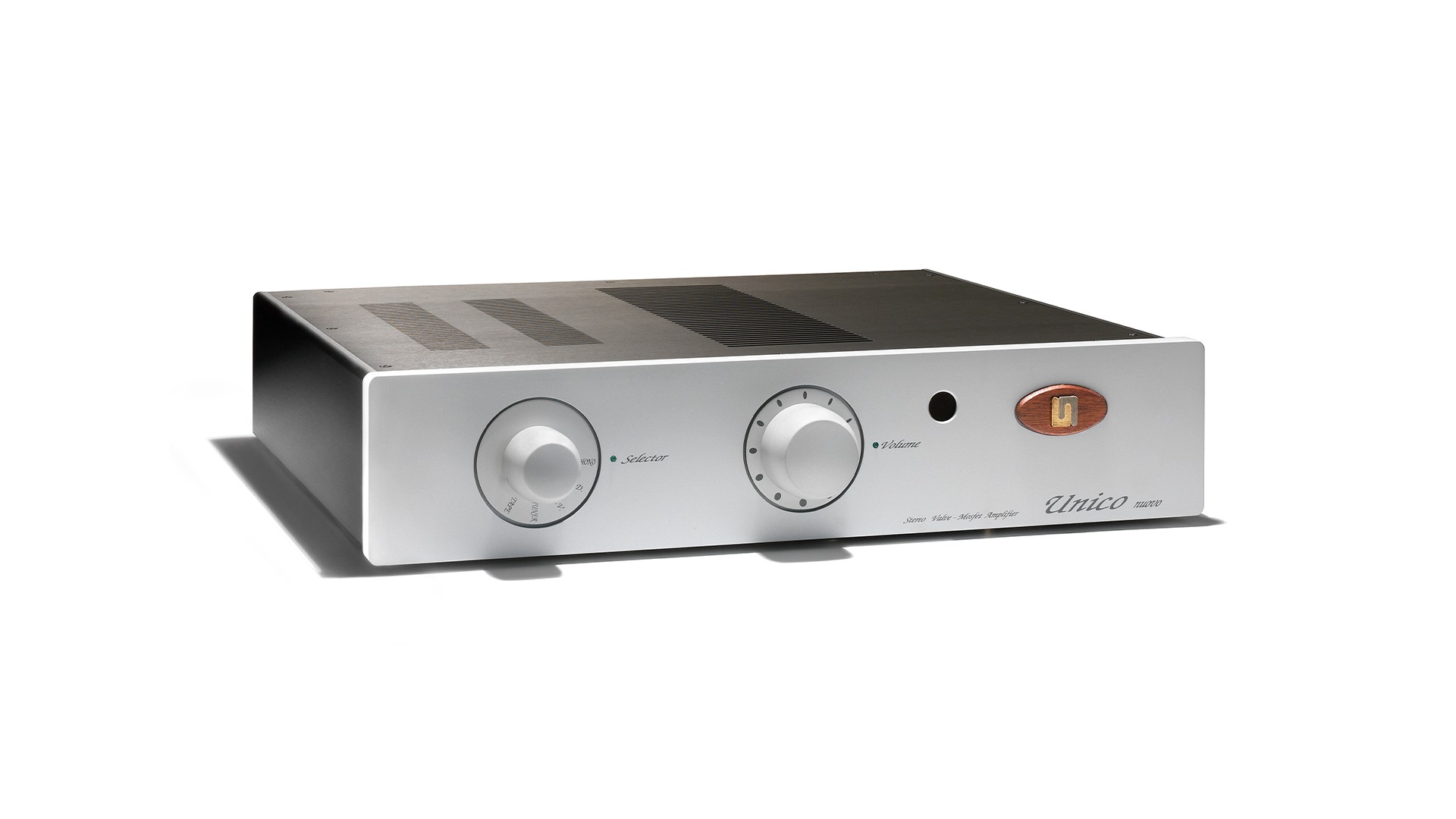

Unico Nuovo
Unico Nuovo is a hybrid amplifier with ECC83 valves, MOSFET output stages, 5 line inputs, optional phono input, and bi-wiring terminals.
fig. 01 · integrated amplifiers
Unico Nuovo
From Unison Research
Unico Nuovo updates one of Unison Research's core amplifier designs with a pure Class A double-triode input stage and 8 power MOSFETs. It has 5 RCA line inputs, optional MM/MC phono support, tape and subwoofer outputs, and bi-wiring speaker terminals.
Specifications
| Output power | 95W |
|---|---|
| Output stage | 8X POWER MOSFET |
| Valves | 2 x ECC83 |
| Inputs | 5 Line RCA (1 phono optional) |
| Line output | 1 tape, 1 sub (with volume control) |
| Input stage | Pure Class A, double triode in parallel |
| Frequency response | -0.1dB @ 10Hz, -0.5dB @ 100kHz |
| Input impedance | 50kOhm // 47pF |
| Sensitivity | 260mV RMS |

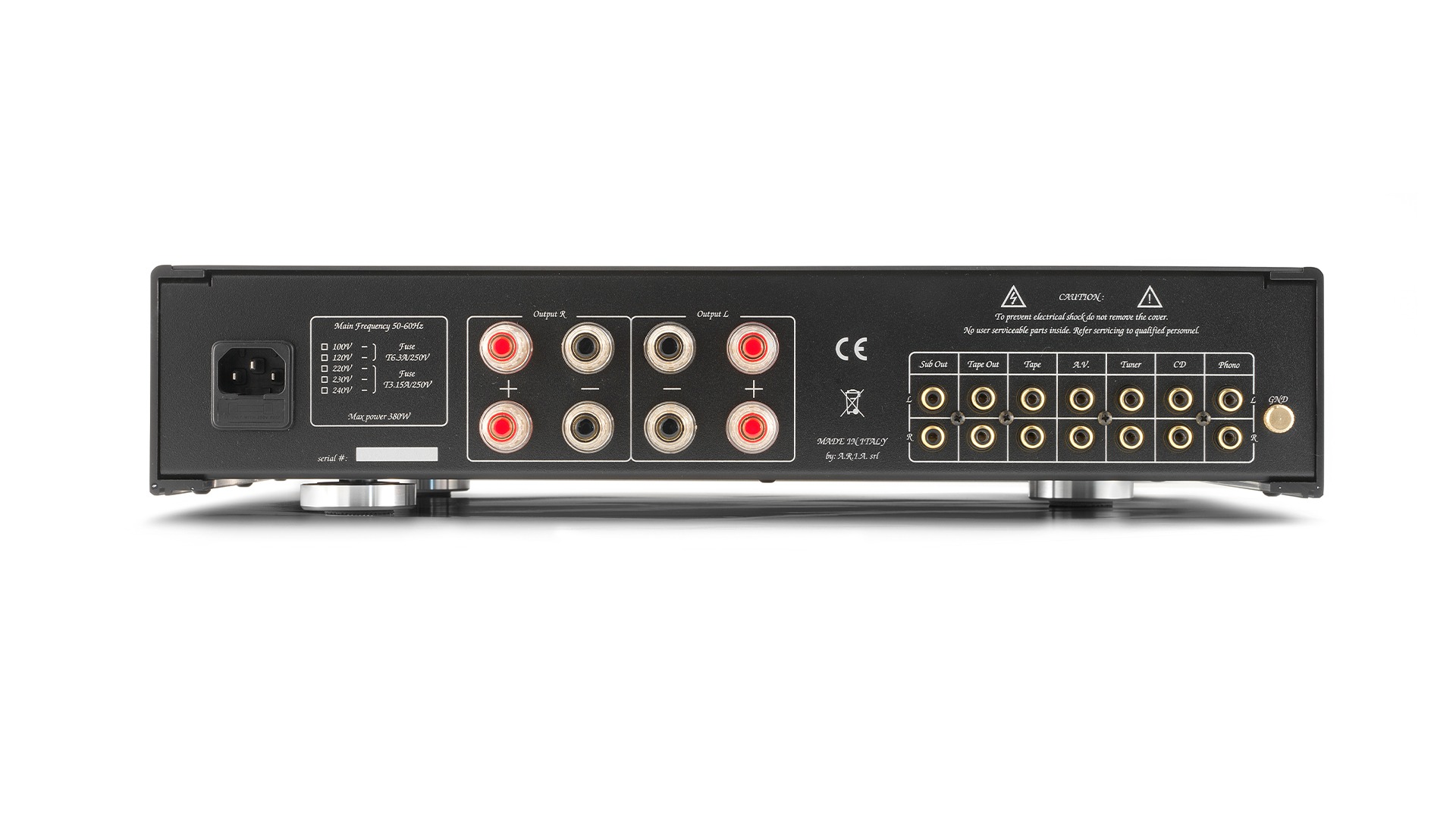

| Output connector | 4 + 4 bi-wiring |
| Feedback factor | 10dB |
| THD | 0.15% @ 10W/1kHz |
| Power consumption | 400W max |
| Dimensions | 43.5cm x 9.5cm x 43cm |
| Weight | 16kg |
| Phono input impedance | 47 kohm / 220 pF (MM) - 100 ohm / 440 pF (MC) |
| Gain | MM 40 dB, MC 50 dB |
| Gain selection | +0 dB / +10 dB |
| Max input voltage | 120 mV @ 1kHz (MM) |
| RIAA equalization | active at low frequencies, passive at high frequencies |
| Phono THD | 0.09% @ 5mV, 1kHz, MM |
| Product type | hybrid integrated amplifier |
| Series | Unico |
