Velodyne · Subwoofers
Deep Waves Series
Subwoofer series with a front driver and side passive radiators.
fig. 01 · subwoofers
Deep Waves Series
From Velodyne

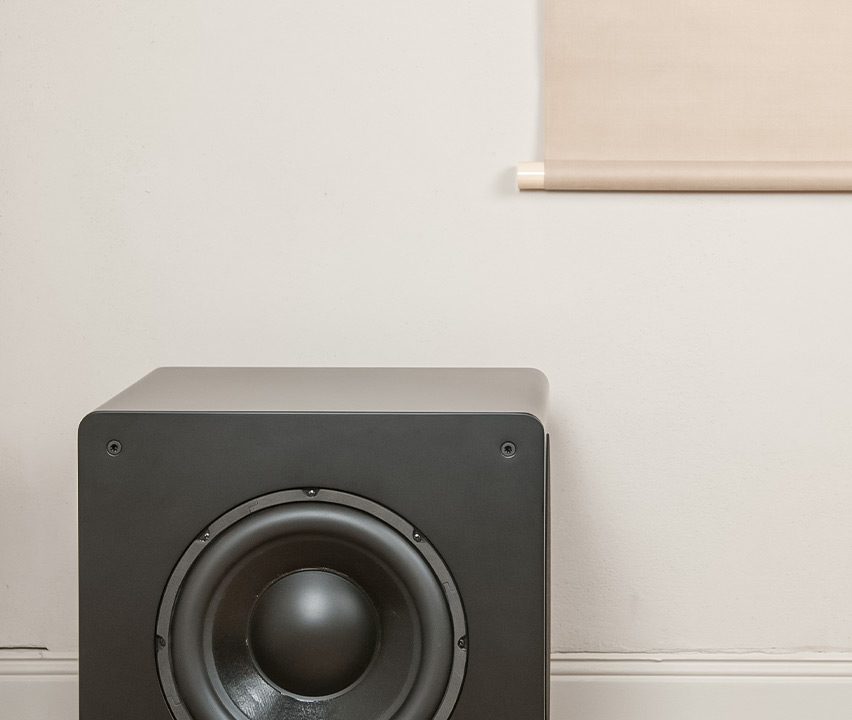

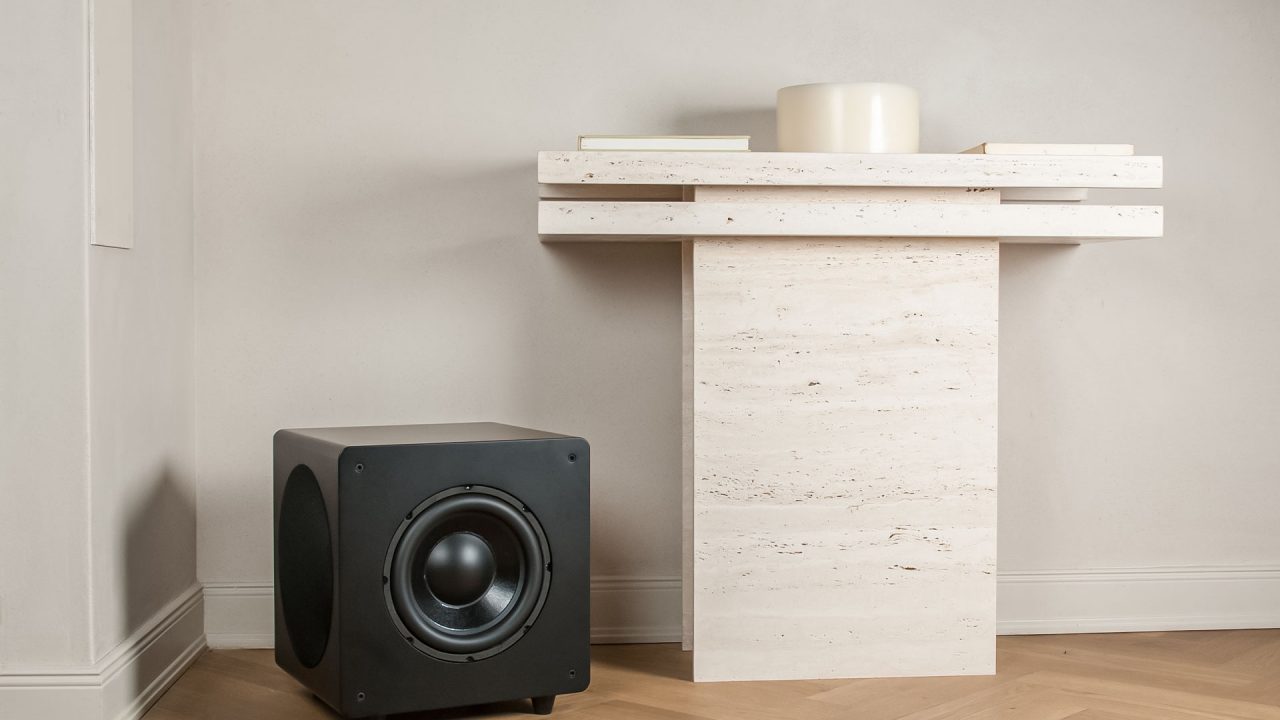

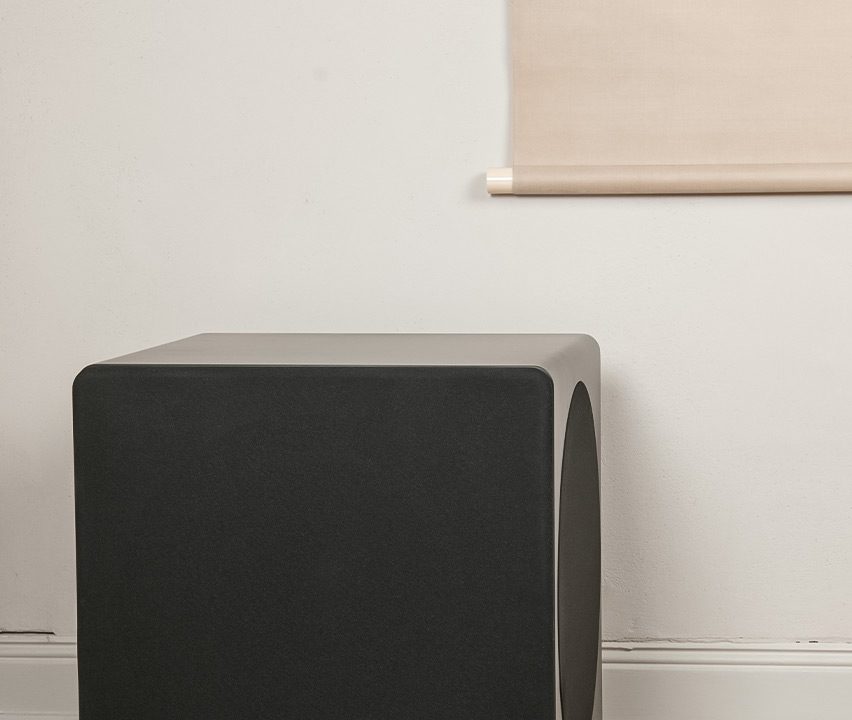

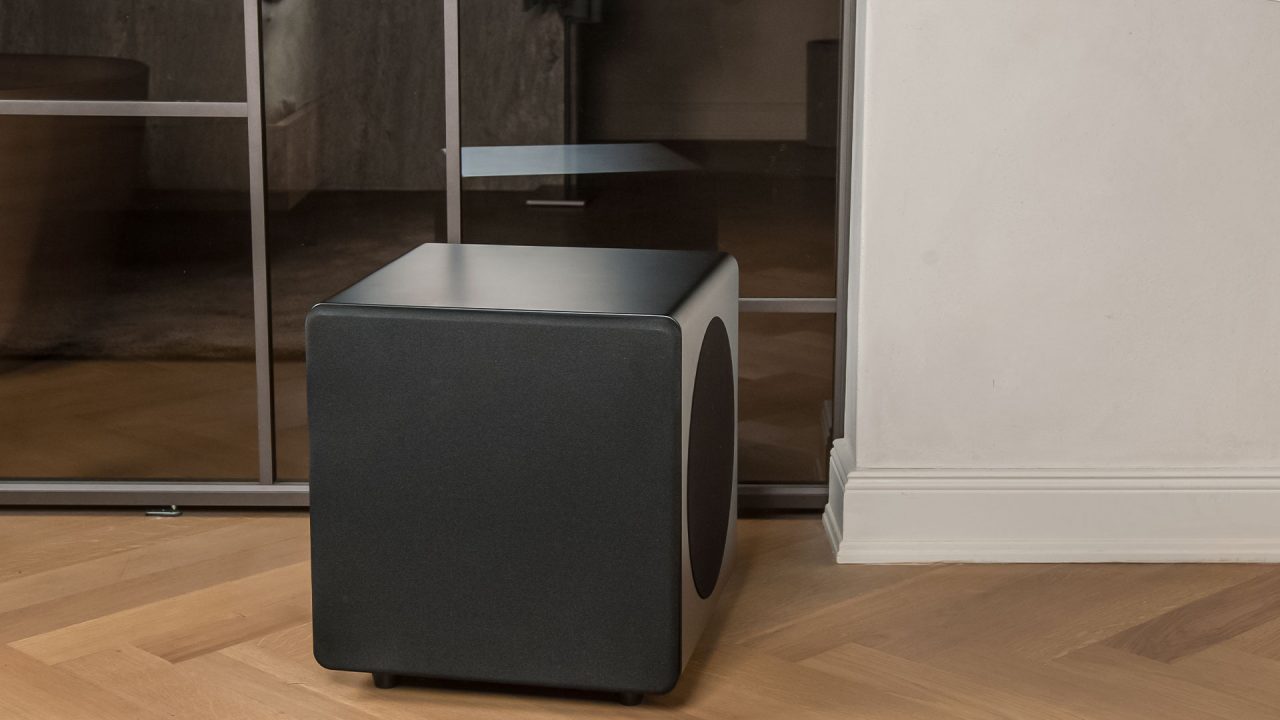

Deep Waves Series uses a front-firing active driver with side-firing passive radiators in a matte black enclosure. The saved specs list a 12-inch driver, 400W RMS amplification, RCA/LFE input and output, and app control from the listening position.
Specifications
| Driver | 12" front firing driver 12" side radiating passive radiators |
|---|---|
| Amplifier | 800 watt dynamic 400 watt RMS |
| Overall Frequency Response: (± 3 dB) | 25 Hz - 180 Hz |
| Overall Frequency Response: (± 10 dB) | 22 Hz - 220 Hz |
| Low-pass crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet | 22 mm MDF |
| Magnet structure | Dual ferrite magnet motor |
| Woofer | 12" high excursion double vented basket driver with pp Membrane and convex cone |
| Voice coil | Four Layer 2,5" / 63 mm voice coil |
| Input | Gold plated Stereo/LFE RCA, Nickel plated High level in |
| Output | Gold plated Stereo/ LFE RCA |
| Power selector | Off / Auto / On |
| Finishes | Flat matte black paint |
| Dimensions | 41 cm x 48 cm x 41 cm |
| Weight | 25 kg |
| Shipping weight | 28 kg |
| Product type | subwoofer series with passive radiators |
| Series | Deep Waves |
