Velodyne · Subwoofers
Digital Drive Plus Series
Powered subwoofer series with calibration controls and high-output amplification.
fig. 01 · subwoofers
Digital Drive Plus Series
6 photographs · 5 shown
From Velodyne

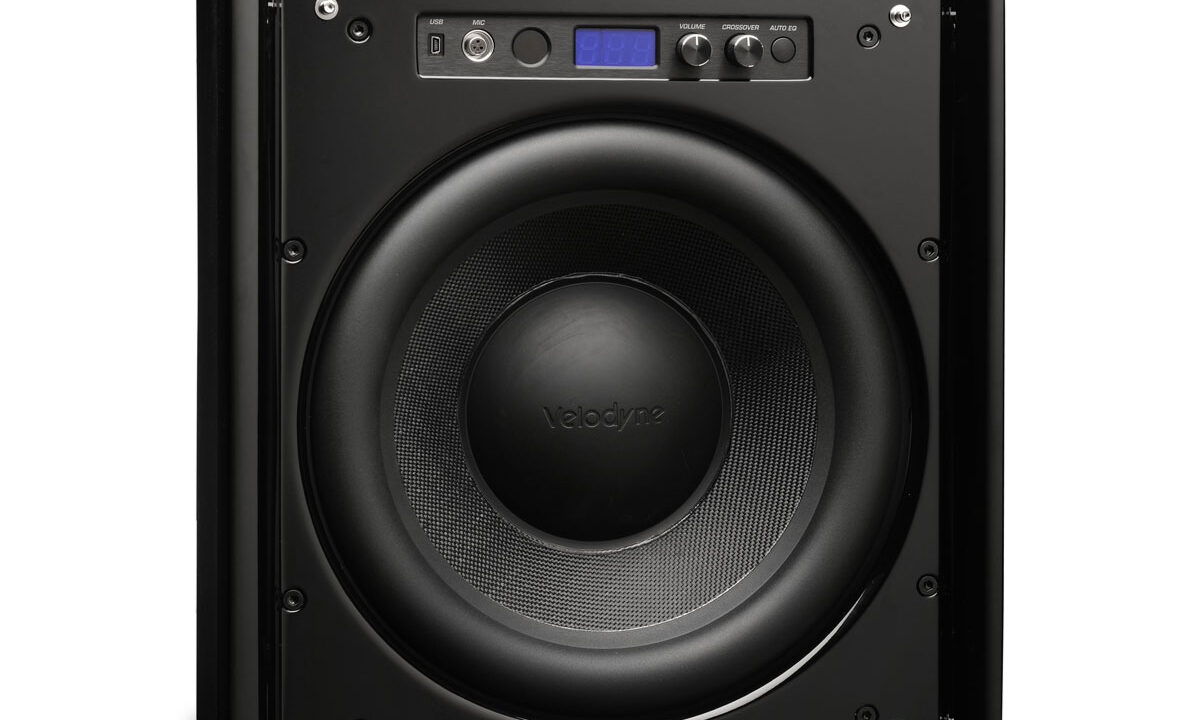

Digital Drive Plus is a Velodyne powered subwoofer series with digital driver control, calibration tools, and remote-control accessories. The saved specs include RCA and XLR inputs, microphone input, high-pass and low-pass outputs, and 1250W RMS amplification for the captured 18-inch model.
Specifications
| Driver | 18" forward firing |
|---|---|
| Amplifier | 3000 watts dynamic 1250 watts RMS power |
| Frequency response | 8.8 - 300 Hz 14.4 - 120 Hz |
| THD | < 0.5 % (typical) |
| High-pass crossover | 80 or 100 Hz at 6 dB/octave |
| Low-pass crossover | 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope Default: 80 Hz @ 24 dB/Octave |
| Phase | 0 to 180 degrees (variable in 15 degree increments) |
| Polarity | Adjustable (+/-) |
| Magnet structure | 39.7 lbs. |

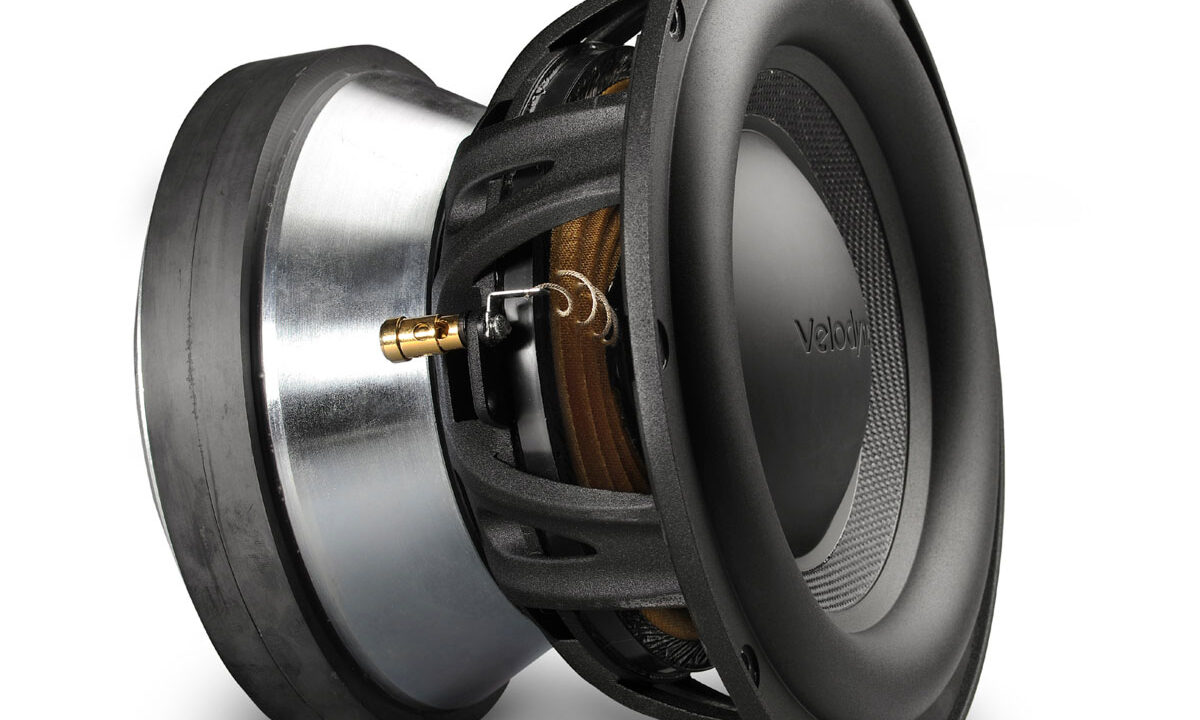

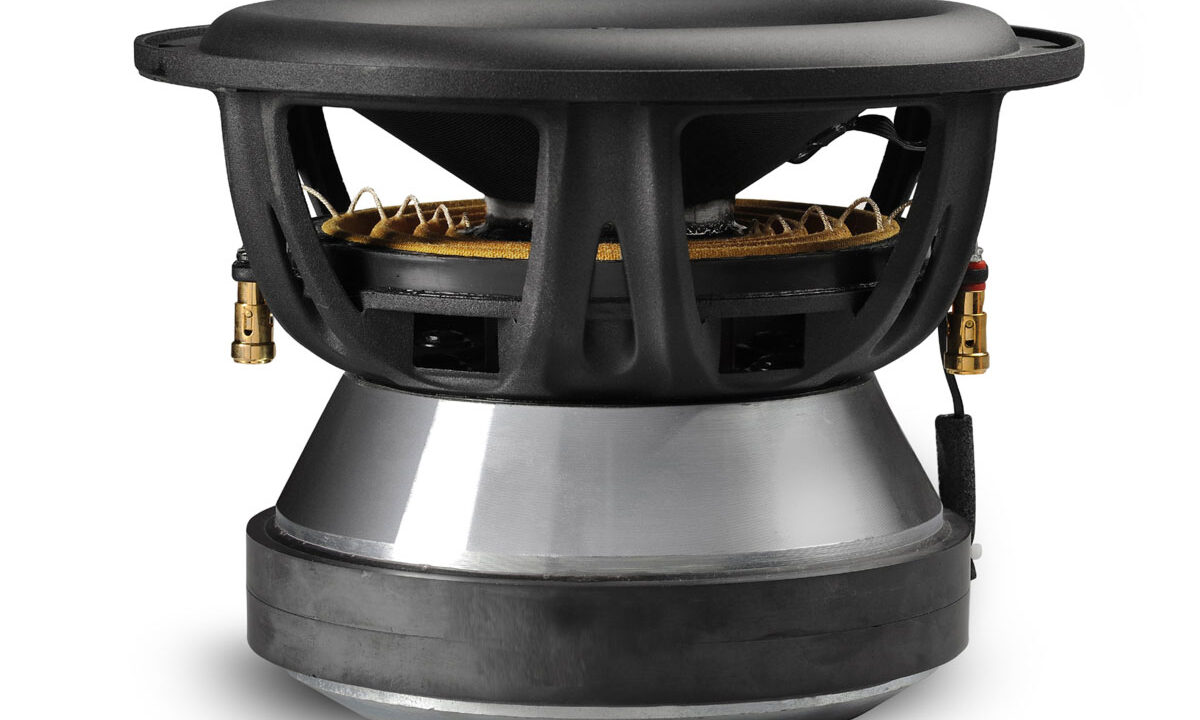

| Voice coil | Six-layer, 75 mm |
| Cone | Fiberglass Rohacell Laminate |
| LFE input | Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K |
| Left / right input | Line level (RCA & XLR) |
| Input Microphone | Balanced (Mini-XLR, cable included) |
| Input Speaker Level (L&R) | Bare wire, banana plugs, or spade lugs |
| Through output | Line level (RCA & XLR) |
| High-pass output | Line level (RCA & XLR) |
| Included Accessories | Full feature remote control, DD+ accessory kit and video cable |
| Finishes | Black gloss ebony or Piano Black |
| Dimensions | 22.7" x 20.7" x 25.6" (58 x 53 x 65 cm) |
| Shipping weight | 64,4 kg |
| Product type | powered subwoofer series |
| Series | Digital Drive Plus |
