Velodyne · Subwoofers
Impact MKII
Powered subwoofer series with long-throw driver and bass reflex cabinet.

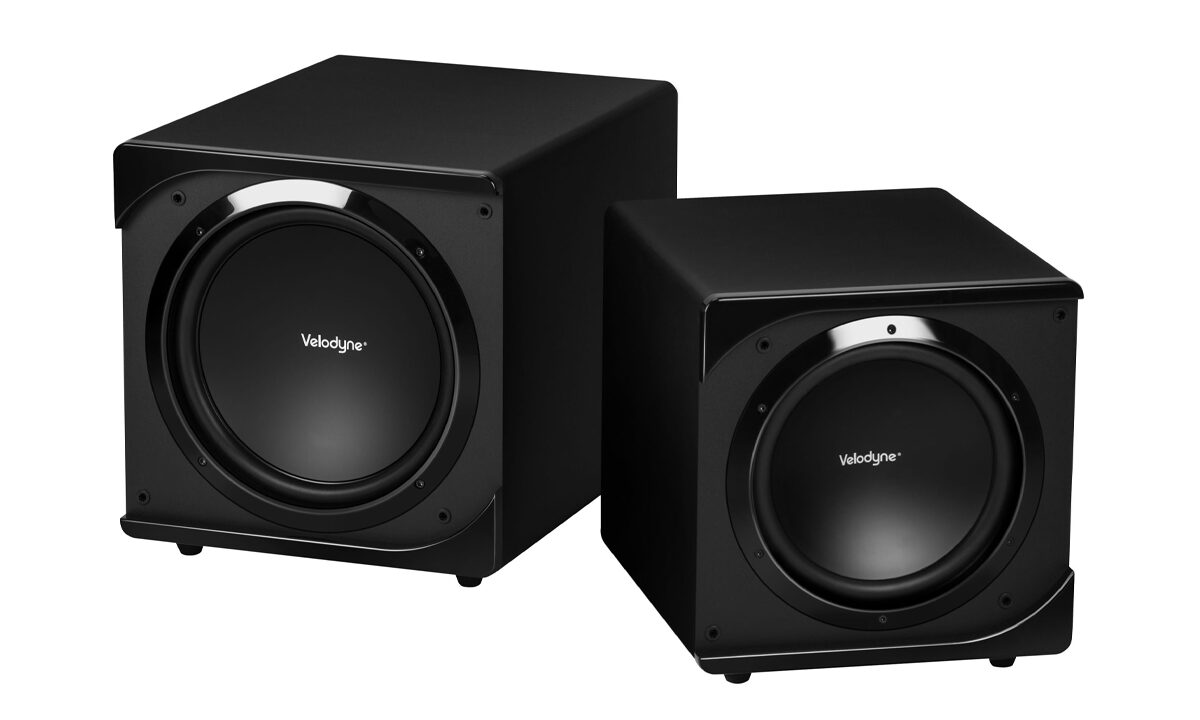

fig. 01 · subwoofers
Impact MKII
6 photographs · 5 shown
From Velodyne
Impact MKII uses a long-throw driver, 2-inch copper voice coil, bottom bass reflex port, and Class D amplification. The saved specs list RCA, LFE, and speaker-level inputs plus 165W RMS output for the captured 12-inch model.
Specifications
| Driver | 12" forward firing |
|---|---|
| Amplifier | 275 watts dynamic 165 watts RMS power |
| Frequency response (+/- 3 dB) | 29 - 140 Hz |
| THD | < 0.5 % (typical) |
| Low-pass crossover | 50 Hz to 200 Hz |
| Phase | 0 or 180 degrees |
| Magnet structure | 5.6 lbs. |
| Voice coil | 2" copper wound |
| Cone | Reinforced Coated Fiber |
| Inputs | RCA Line Level, LFE and Speaker Level inputs |
| Input Impedance | 65K ohm (for LINE INPUT jacks), 1.2K ohm (for SPEAKER LEVEL INPUT terminals) |
| Line-level sensitivity | 1.0 V |
| Outputs | Left and right speaker level pass-through |
| Dimensions | 15.1" x 14.2" x 18.9" (38.4 x 36 x 48 cm) |
| Shipping weight | 38 lbs. |
| Product type | powered subwoofer series |
| Series | Impact MKII |
