Velodyne · Subwoofers
Impact X
Powered subwoofer series with MDF cabinet and Class D amplification.
fig. 01 · subwoofers
Impact X
From Velodyne
Impact X is a Velodyne powered subwoofer series with an MDF cabinet, Class D amplification, and low-distortion bass design. The saved specs list RCA/LFE and high-level input, RCA/LFE output, a 50-180Hz low-pass crossover, and 0/180-degree phase control.
Specifications
| Driver | 15" front firing driver |
|---|---|
| Amplifier | 1000 watts dynamic 550-watt RMS |
| Overall Frequency Response: (± 3 dB) | 23Hz - 180 Hz |
| Overall Frequency Response: (± 10 dB) | 18Hz - 220 Hz |
| Low-pass crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 / 180 degrees |
| Cabinet | 22mm MDF 30mm front |
| Magnet structure | Dual ferrite magnet motor |

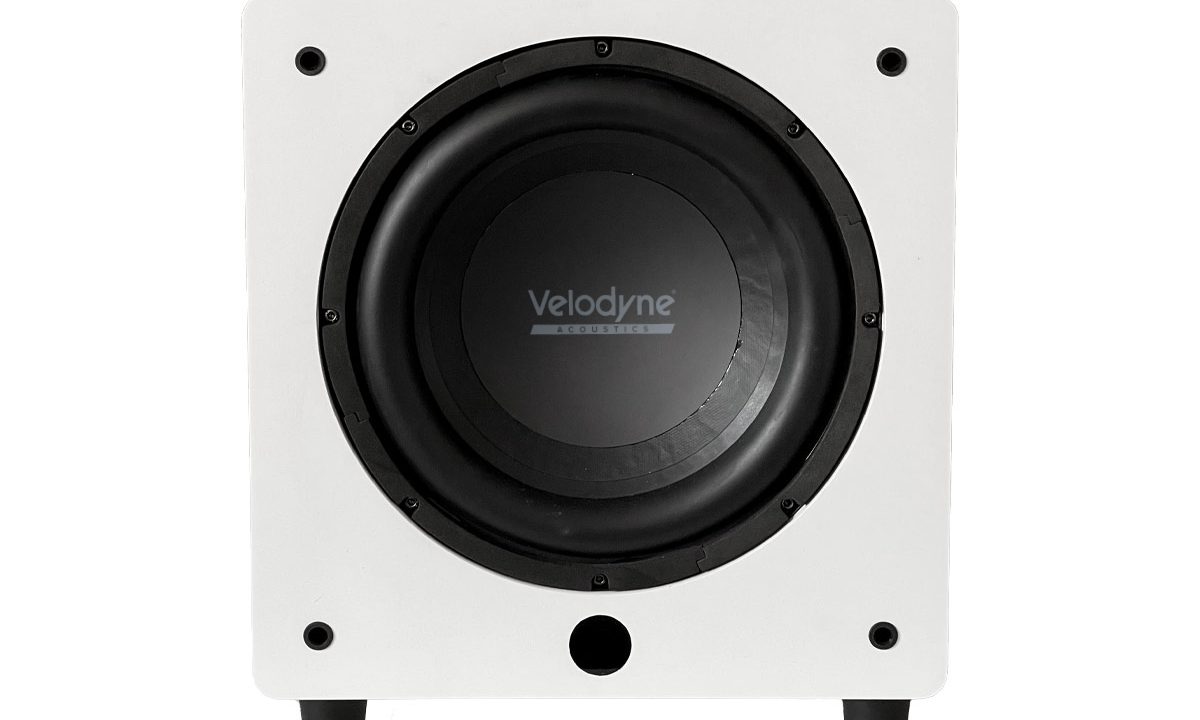

| Woofer | 15" high excursion double vented basket driver with pp Membrane and convex cone |
| Voice coil | Four Layer 3" / 76mm voice coil |

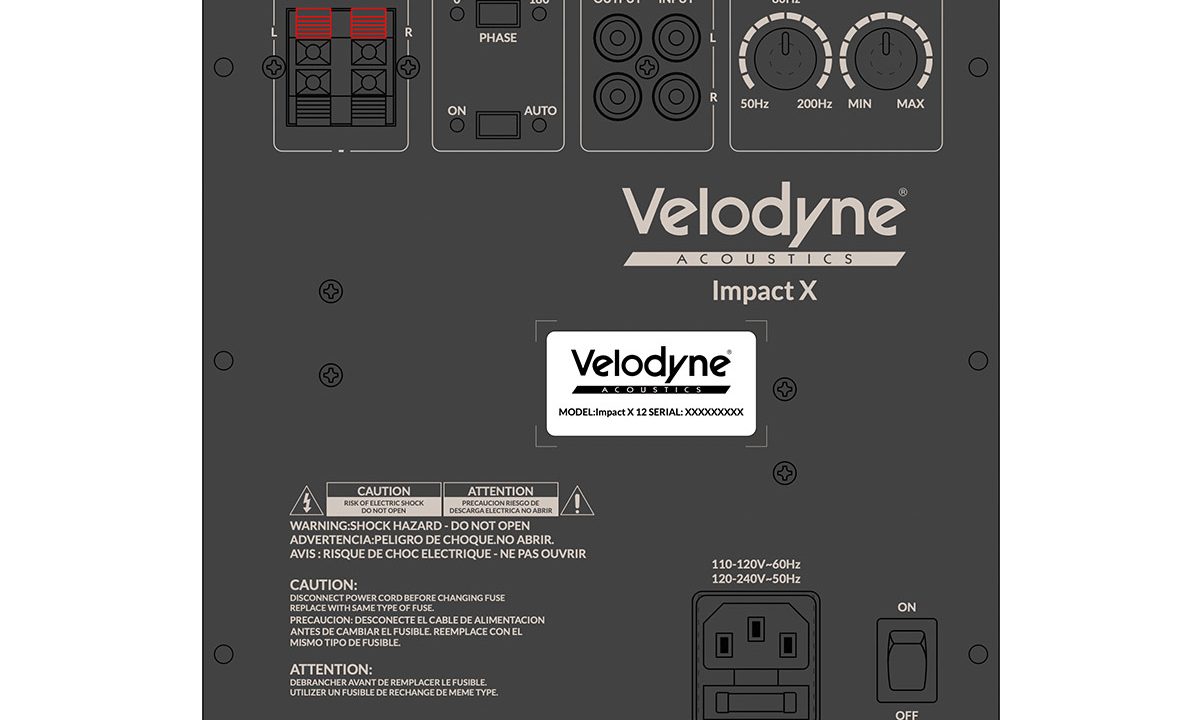

| Input | Gold plated Stereo/LFE RCA, Nickel plated High level in |
| Output | Gold plated Stereo/ LFE RCA |
| Power selector | Off / Auto /On |
| Finishes | Flat mat black Vinyl |
| Dimensions | 44cm x 48cm x 59 cm |
| Weight | 35 kg |
| Shipping weight | 40 kg |
| Product type | powered subwoofer series |
| Series | Impact X |
