Velodyne · Subwoofers
MicroVee MKII
Compact powered subwoofer with 8-inch forward-firing driver.
fig. 01 · subwoofers
MicroVee MKII
6 photographs · 5 shown
From Velodyne

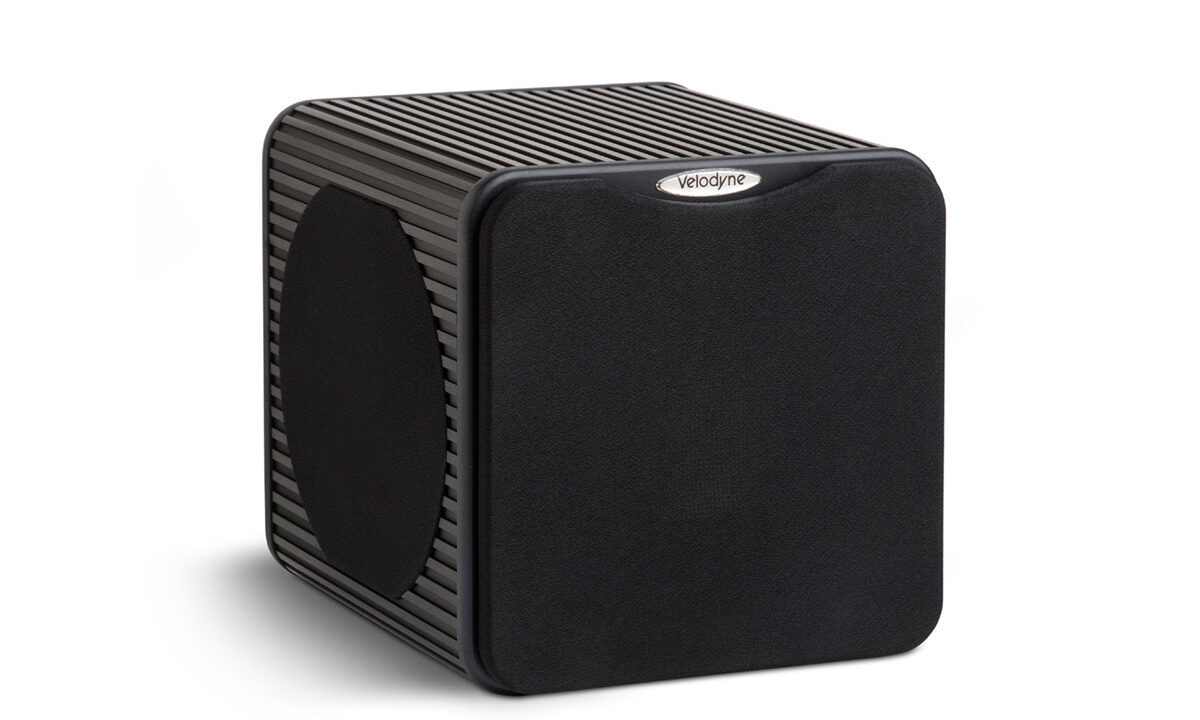

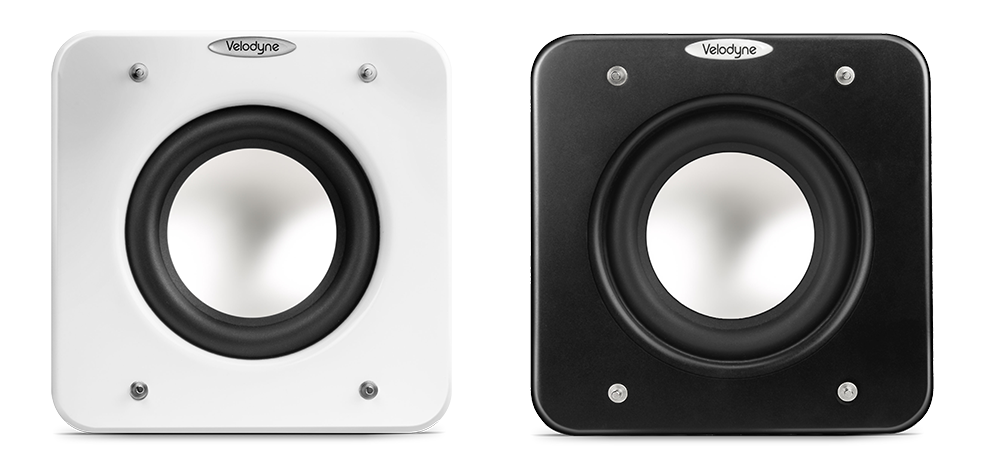

MicroVee MKII is a compact powered subwoofer with an 8-inch forward-firing driver, 300W RMS Class AB amplification, RCA/LFE/high-level inputs, and black finish. Its source copy describes the enclosure as living-room friendly.
Specifications
| Driver | 8" forward firing |
|---|---|
| Amplifier | 800 watts dynamic 300 watts RMS power |
| Frequency response | 18 - 300 Hz 32 - 180 Hz |
| Low-pass crossover | 50 Hz to 180 Hz (12 dB/Octave) |
| Phase | 0 to 180 degrees |
| Cabinet | MDF Closed Box with 52mm / 2" front Baffle |
| Magnet structure | Dual ferrite magnet motor |
| Woofer | 8" high excursion double vented basket driver with PP inforced Membrane |
| Voice coil | Four Layer 2" / 52mm Voicecoil |
| Input | GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel |
| Output | Gold plated LFE /RCA |
| Power selector | Off / Auto / On |
| Finishes | Black |
| Weight | 9 kg |
| Product type | compact powered subwoofer |
| Series | MicroVee MKII |
