MiniVee X
Compact sealed subwoofer with an 8-inch active driver and passive radiator.
fig. 01 · subwoofers
MiniVee X
From Velodyne

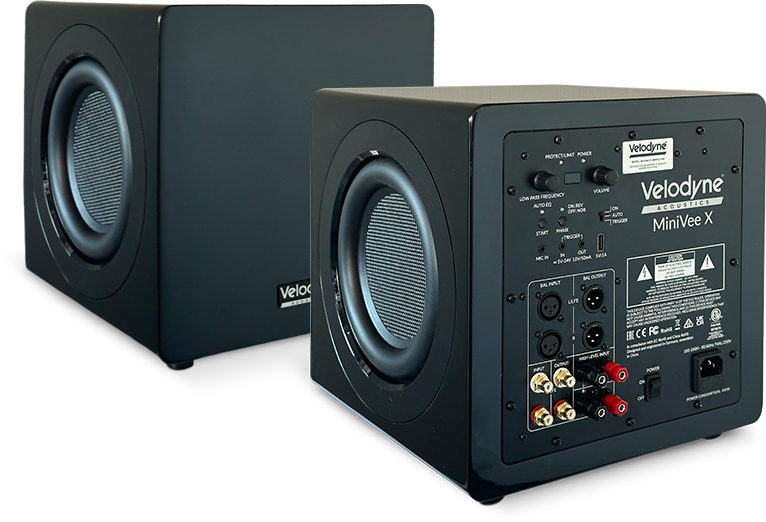

MiniVee X is a compact sealed subwoofer with an 8-inch long-throw driver, an 8-inch passive radiator, and 350W RMS amplification. It includes RCA and XLR connections, trigger input and output, and Auto EQ setup with the included microphone.
Specifications
| Driver | All-new proprietary 8" long-throw driver with high-precision tuned overhung motor configuration with 8" passive radiator |
|---|---|
| Amplifier | 350W RMS @ 0,5% THD, 600 W @ 2% THD, 800 W maximal |
| Frequency response | 18 - 300 Hz 32 - 180 Hz |
| Low-pass crossover | 30 to 200 Hz low-pass crossover with a 12 dB/octave slope |
| Phase | 0 to 180 degrees |
| Cabinet | High-gloss MDF |
| Magnet structure | Dual ferrite magnet motor |
| Woofer | All-new proprietary 8" long-throw driver with high-precision tuned overhung motor configuration with 8" passive radiator |
| Voice coil | 2" diameter Voice Coil with high current 4-layer high-purity copper wire windings |
| Input | Unbalanced Stereo/LFE RCA input, Balanced Stereo/LFE XLR Input, 3,5 mm mini jack 12 V trigger input, 5 V / 1 A Power USB socket to power external Wireless Signal transmitting system Wi-Connect II |
| Output | Unbalanced Stereo/LFE RCA output for easy daisy chain, Balanced Stereo/LFE XLR output for easy daisy chain, 3,5 mm mini jack trigger output with 5 seconds delay |
| Power selector | Blue (power on) / Red (power standby) mode indicator LED |
| Finishes | Black |
| Dimensions | 30 cm x 29 cm x 29 cm |
| Weight | 15 kg |
| Shipping weight | 20 kg |
| Product type | compact sealed subwoofer |
| Series | MiniVee X |
