SubContractor Series
Custom-install subwoofer series for in-wall bass systems.
fig. 01 · subwoofers
SubContractor Series
From Velodyne

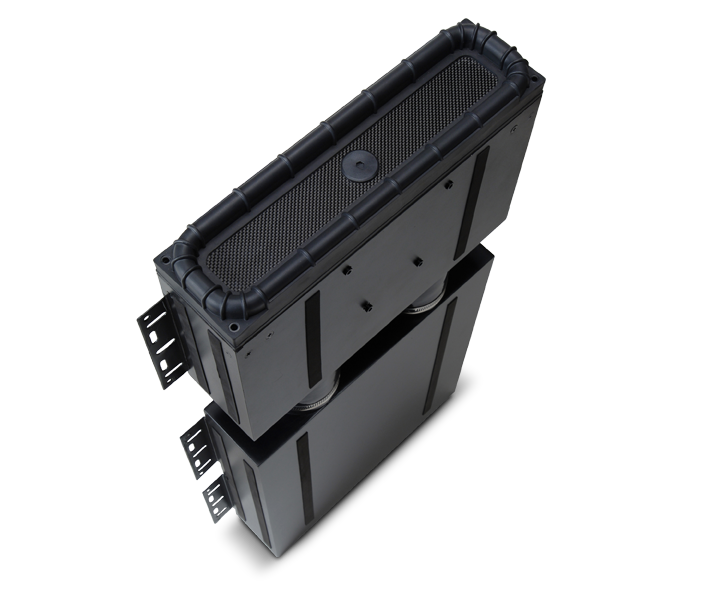

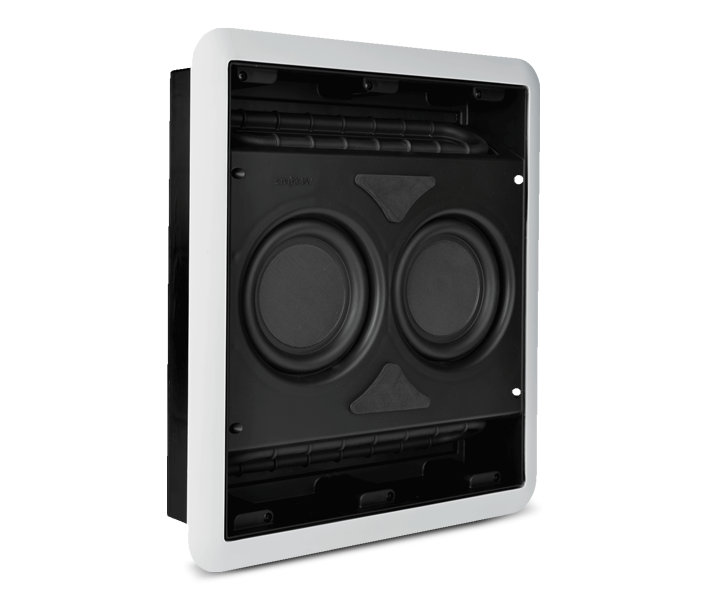

SubContractor is a custom-install Velodyne subwoofer series built for in-wall use. The saved specs include dual 6.5-inch active drivers, passive drivers, RCA/XLR trigger inputs, and crossover and phase controls for installer setup.
Specifications
| Driver | Two 6.5" active drivers Two 12.5" x 3" passive drivers |
|---|---|
| Frequency response (+/- 3 dB) | 22 - 120 Hz | 34.25 - 180 Hz |
| THD | < 5 % (typical) |
| Magnet structure | 4 lbs. each active 8 lbs. total |
| Voice coil | 4-layer copper |
| Dimensions | 18.6" x 16.5" x 4.3" (47.2 x 42 x 11 cm) | 9 x 43.3 x 33 cm |
| Shipping weight | 10 kg |

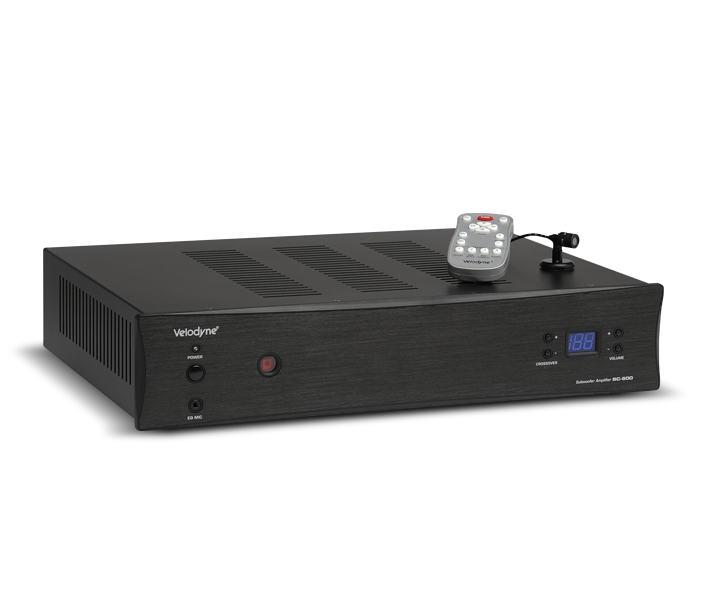

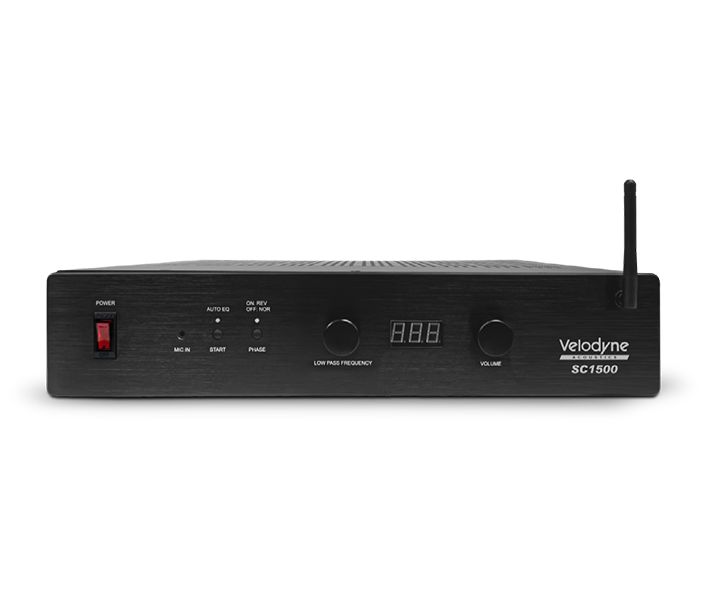

| Amplifier | 400 watts dynamic 200 watts RMS power |
| High-pass crossover | 30 Hz to 200 Hz in 1 Hz steps with a 12 dB/oct. | 80 Hz (6 dB / octave) |
| Low-pass crossover | 30 - 160 Hz, defeatable, 24 dB / octave slope |
| Phase | 0°, 90°, 180°, 270° |
| Input | Unbalanced Stereo/LFE RCA, Balanced Stereo/LFE XLR, 3,5 mm mini jack 12 V trigger input |
| Output | Line-level, 80 Hz up, speaker level for up to two subwoofers |
| Power selector | Auto power/on/off switch | Off / Auto / On |
| Weight | 8 kg |
| Input level | Line and Speaker level |
| Product type | custom-install subwoofer series |
| Series | SubContractor |
